Aci A/RH2-AN-R Room Humidity Sensor w/10K-3 Temp

Product Description

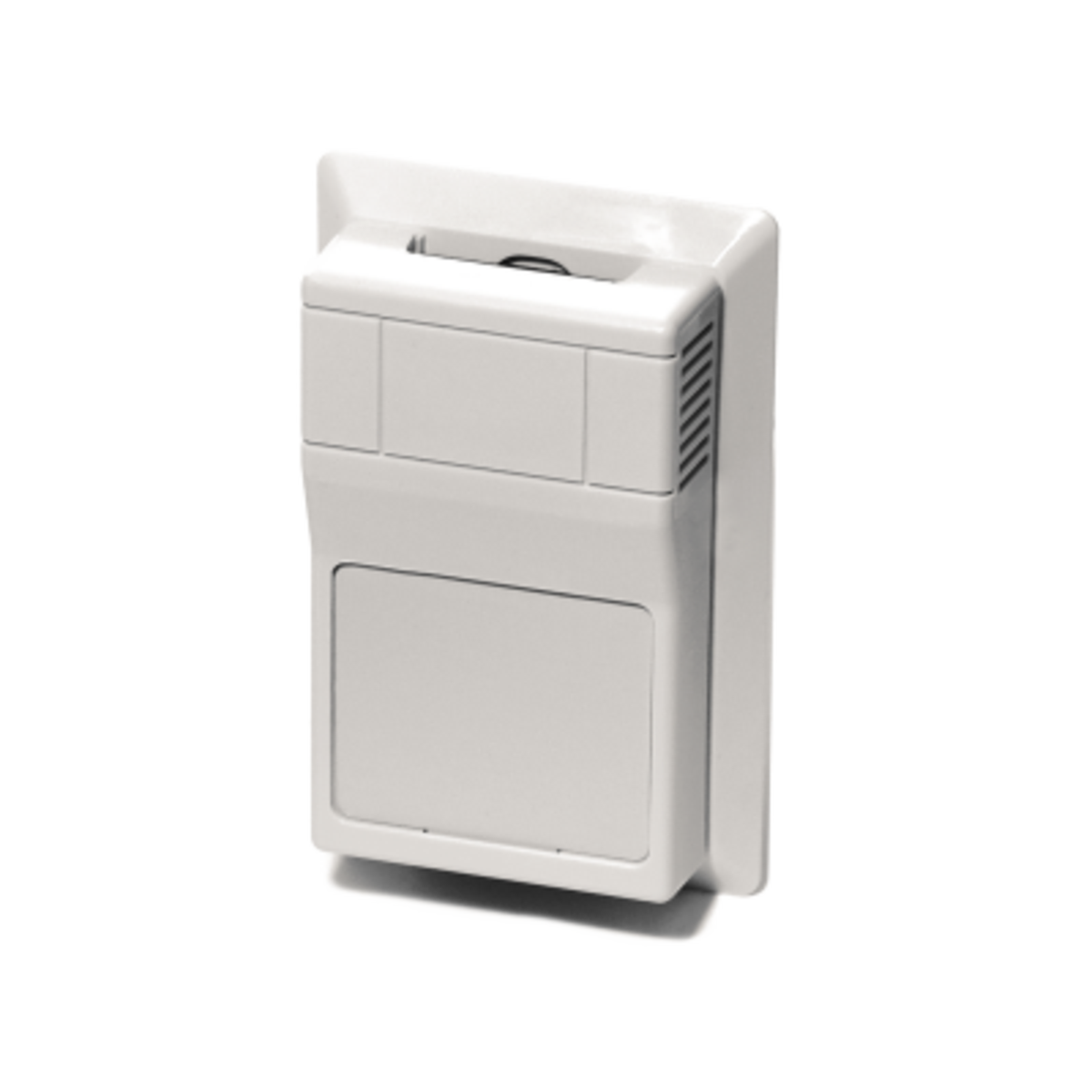

The ACI A/RH2-AN-R is a room humidity sensor with a 10K-3 temperature sensor. It features a thermoset polymer capacitive sensing element with a hydrophobic filter for moisture resistance. On-board DIP switches allow users to select the desired output signal, and it can be powered by AC or DC power sources.

• Popular room housing
• Field selectable current or voltage outputs

Product Highlights

This humidity sensor is ideal for monitoring indoor space humidity in clean rooms, hospitals, and office buildings.

Product Information

Standard Information

• Brand: ACI
• Manufacturer Part Number: A/RH2-AN-R
• Country of Origin: USA

Technical Specifications

• Type: Room
• Accuracy: 2%
• Temp Sensor Type: 10K Type III
• Housing Material: Poly
• Sensor Element: 10K Type 3 Thermistor
• Output: 0-10 VDC, 0-5 VDC, 4-20 mA
• Power Requirements: 24 VAC,24 VDC
• Application: Indoor
• Mount: Room
• Manufacturer Part Number: 122644
• Manufacturer: ACI-Automation Components
• Product Series: RH with Resistive Temperature Output
• Family Series: ACI-Automation Components HVAC Sensors, RH with Resistive Temperature Output Series
• Description: Room, 2pct.
• Input: 15-40 VDC, 18-28 VAC
• Humidity Range: 0-100 % RH
• Display: None
• Override: No
• Set Point: No
• Approvals: CE
• Comments: 4-20mA Default - 0-5 VDC or 0-10 VDC Output Selectable via Dip Switches
