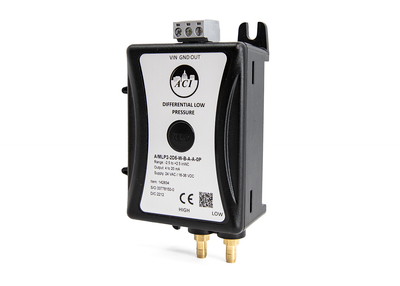

ACI A/MLP2-002-W-U-A-C-0P Differential Pressure Sensor Transducer Unidirectional 0-2 w.c. 0-10 VDC

Product Description

The ACI A/MLP2-002-W-U-A-C-0P is a differential pressure sensor transducer designed for OEM or high density panel mounting applications. It features a robust construction suitable for various environments. The unit includes an integral 35 mm DIN rail for easy installation and offers versatile mounting options with a rear and side mount. The side mount adapter, included in the package, allows for a thinner profile on high-density panels.

• Pressure range: 0-2 w.c.
• Output signal: 0-10 VDC
• Includes a pushbutton zero function for convenient calibration

Product Highlights

This sensor provides accurate readings of differential pressure, ensuring optimal performance in applications such as building and duct static pressure monitoring, air flow measurement, and filter monitoring.

Product Information

Standard Information

• Brand: ACI
• Part Number: A/MLP2-002-W-U-A-C-0P

Technical Specifications

• Direction: Unidirectional
• Pressure Output Signal: 0-10 VDC
• Pressure Range: 0-2 w.c.
• Pressure Sensor Type: Differential
• Sensor Type: Pressure
