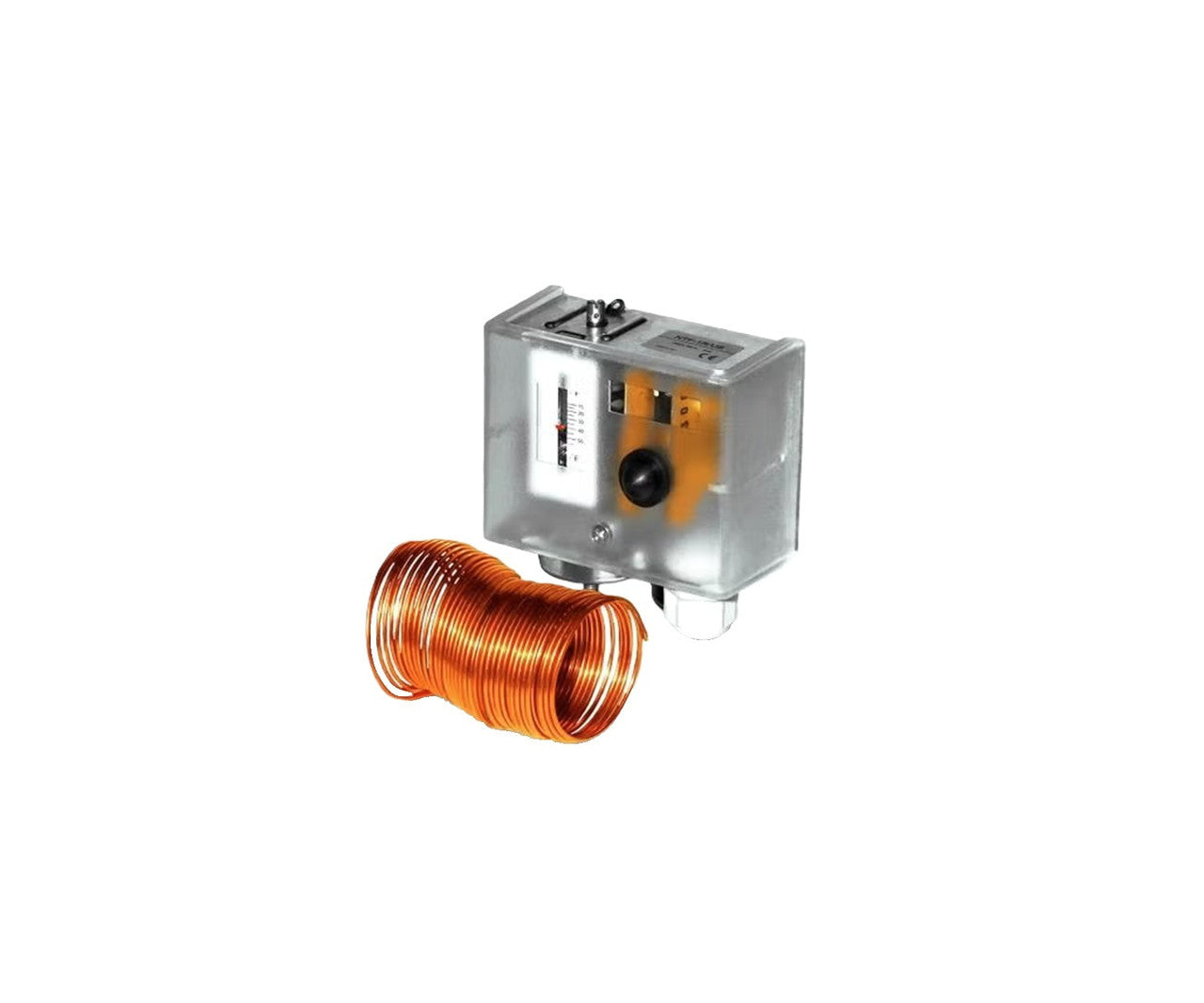

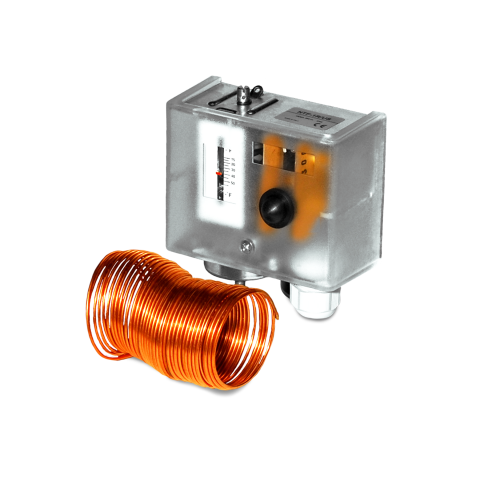

Aci A/FS-3 Spdt Freeze Stat - Manual Reset 10ft

Product Description

The ACI A/FS-3 SPDT Freeze Stat is a low limit controller designed for HVAC equipment needing low-temperature cutout protection to prevent cooling coils from freezing. It should be mounted between the heating and cooling coils on the supply side of the fan unit. It responds to the lowest temperature sensed along any 1 foot section of the sensing element.

• Available with 6, 10, and 20 foot length capillaries
• Adjustable set-point
• Manual reset and automatic reset versions

Product Highlights

The ACI SPDT Freeze Stat has manual and automatic reset versions, as well as models that feature one or two sets of SPDT contacts. Numerous capillary lengths are also available.

Product Information

Standard Information

• Brand: ACI
• Manufacturer Part Number: A/FS-3

Technical Specifications

• Reset Type: Manual
• Application: Low Temp Cutout Controller
• Sensing Type: Copper Remote Bulb
• Relay Outputs: SPDT
• Setpoint Range: 14-54 F
• Max Temperature: 131 F
• Capillary Length: 10 FT
• Stages: Single
• System Switching: No
• Fan Switching: No
• Type: Low Limit
• Differential: 1.8F
• Controls Outputs: 1 Set SPDT Contacts
• Sensing Element: Vapor-filled, copper capillary tube
• Output: A/FS-1, -3, -5: one SPDT Form 1C Relay
• Contact Rating: 250 VAC, 15 (8) A
• Housing Rating: NEMA 1 IP40
• Operating Temperature: 14 to 194 0F (-10 to 65 0C)
• Operating Humidity: 0 to 95%, non-condensing
• Manufacturer Part Number: 106291
• Manufacturer: ACI-Automation Components
• Product Series: FS
• Family Series: ACI-Automation Components Controllers, FS Series
• Description: Spdt W/Man Reset 14-54Degf 10ft.
• AC Voltage: 250 V
• Output Signal: Switch
• Setpoint Temp Range: 14-54 0F
• Sensor Element: Vapor Filled Copper Capillary
• Approvals: CE
• Electrical Connection: Terminal with wire-retaining screws
• Measured Values: Temperature in air
• Output signal frost protection switch note: 1 x SPDT
• Switch: (1)SPDT
• Reset Functionality: Manual Reset
