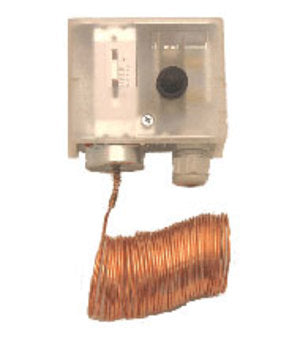

Aci A/FLS-06-A Freeze Stat (FLS), 6 feet Capillary, Automatic Reset, 4 Wires, 2 Circuits

Product Description

The ACI A/FLS-06-A freeze stat is a low limit controller designed for HVAC equipment needing low-temperature cutout protection to prevent cooling coils from freezing. It should be mounted between heating and cooling coils on the supply side of the fan unit and responds to the lowest temperature sensed along any 1 foot section of the sensing element.

• Available with 6, 10, and 20 foot length capillaries
• Adjustable set-point
• Manual reset and automatic reset versions

Product Highlights

This freeze stat protects heating and cooling coils and features a low temperature limit switch for applications where temperature stratification may occur.

Product Information

Standard Information

• Brand: ACI
• Manufacturer Part Number: A/FLS-06-A

Technical Specifications

• Stages: Single
• System Switching: No
• Fan Switching: No
• Type: Low Limit
• Differential: 1.8F
• Controls Outputs: 2 Sets SPDT Contacts
• Sensing Element: Vapor-filled, copper capillary tube
• Contact Rating: 250 VAC, 15 (8) A
• Setpoint Range: 14 to 54 F (-10 to 12 C) field adjustable
• Setpoint Differential: 1.8 F (1.0 C), fixed for auto reset
• Setpoint Safety Lock: 35.6 F (2.0 C) factory set; field adjustable
• Housing Rating: NEMA 1 IP40
• Operating Temperature: 14 to 194 F (-10 to 65 C)
• Operating Humidity: 0 to 95%, non-condensing
• Thermostat Type: Self-contained, electromechanical
• Sensing Media: Temperature in air
• Adjustable Trip Point Range: 15 F to 55 F (-9 C to 13 C); Factory set with Stop at 35 F(1.7 C)
• Reset Options: Model Dependent: Manual or Automatic
• Approximate Switching Differential: Auto Reset only: Approximately 5 F (2.8 C), Non-adjustable
• Contact Form: 4 Wires, 2 Circuits (Two simultaneously switching contacts (Circuits))
• Contact Type: Line to M2 (Main): Open on Temperature Drop Line to M1 (Auxiliary/Alarm): Close on Temperature Drop
• Wiring Connections: Screw Terminals; Copper wire only rated to 90 C (194 F) minimum
• Sensing Response: To lowest temperature sensed along any 14 to 16 (35.6 to 40.6 cm) length of sensing element
• Sensing Capillary Material: Copper
• Sensing Capillary Length: Model Dependent: 6' (1.83m), 10' (3.05m), 20' (6.10m), 50' (15.24m)
• Sensing Capillary Diameter: 0.125 (3.18 mm)
• Enclosure Rating: NEMA 1 (IP10)
• Enclosure Material: Steel, galvanized
• Conduit Knockouts: conduit knockout
• Operating Temperature Range: 0 to 140 F (-18 to 60 C)
• Storage Temperature Range: -40 to 158 F (-40 to 70 C)
• Sensing Capillary Overload Temperature: 400 F (204.4 C) maximum
• Operating RH Range: 0 to 95% RH, non-condensing
• RoHS Compliant: None
• Reset Functionality: Auto Reset
• Capillary Length: 6'
• Manufacturer: ACI
• Component: Freeze Stat
• Brand: Automation Components Inc (ACI)
• Manufacturer Part Number: A/FLS-06-A
