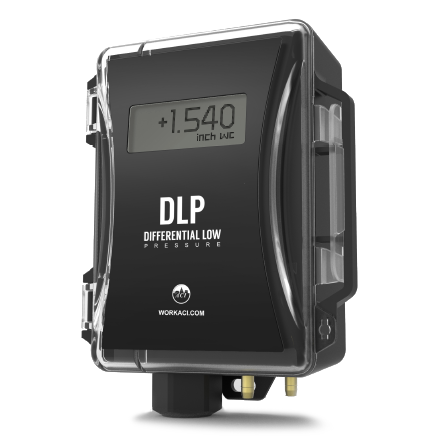

ACI A/DLP-010-W-U-N-A-3 Diff Press Transmitter 0-10in w/o LCD

Product Description

The ACI A/DLP-010-W-U-N-A-3 is a differential pressure transmitter designed for HVAC systems. This model measures pressure ranges of zero to ten inches of water column without an LCD display. It is suitable for both unidirectional and bidirectional applications. The device includes a pitot tube for duct mounting and a DIN rail clip for easy panel installation, ensuring versatile use in various settings.

• Measurement range: 0-1in, 0-2in, 0-5in, 0-10in w.c.
• Field selectable output options: 4-20 mA, 0-5 VDC, and 0-10 VDC.
• Accuracy of 0.5% for reliable readings.

Product Highlights

Product Information

Standard Information

• Brand: ACI
• Part Number: A/DLP-010-W-U-N-A-3

Technical Specifications

• Mount: Din Rail
• Range: 0-1, 0-2, 0-5, 0-10
• Output: 4-20mA, 0-5Vdc, 0-10Vdc
• Display: No
• Voltage: 16-36Vdc, 22-36Vdc, 24Vac
• Direction: Unidirectional, Bidirectional
• Pilot Tube: Yes
• Item Weight: 1.00 lbs per EA
