ACI A/CP-S-GD | 10K ohm Type II | Metal Strap On Pipe Tube Temperature Sensor | Galvanized Housing Enclosure Box

Product Description

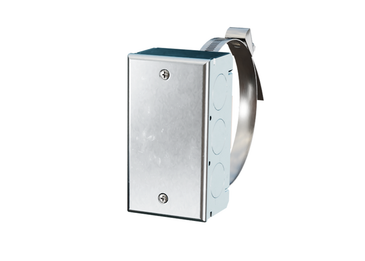

The ACI A/CP-S-GD is a 10K ohm Type II metal strap-on pipe and tube temperature sensor. It is designed with a galvanized housing for durability and efficiency. The sensor features a one point five inch square copper plate that enhances thermal conductivity between the pipe and the sensor. Two 14 inch 22 AWG Teflon lead wires are included for clear identification. This sensor has been manufactured using a double encapsulation process to resist moisture effects and improve thermal response times.

• Use for pipe sizes from one and a quarter to ten inches in diameter.
• Ideal for hydronic heating systems, chillers, and both hot and cold water systems.
• Optional weatherproof enclosure and NIST certifications available upon request.

Product Highlights

The ACI A/CP-S-GD sensor is perfect for scenarios where immersion sensors cannot be used. Ensure optimal performance by applying thermal grease and insulating the sensor against ambient air.

Product Information

Standard Information

• Brand: ACI
• Part #: A/CP-S-GD

Technical Specifications

• Element Type: 10K Type II
• Sensing Element: Thermistor
• Sensor Configuration: Strap
• Sensor Housing: Galvanized
• Sensor: Temperature
• Length: 1.5 inches square
