Aci A/ASCS2-L Current Switch Split Core N/O 0-250A

Product Description

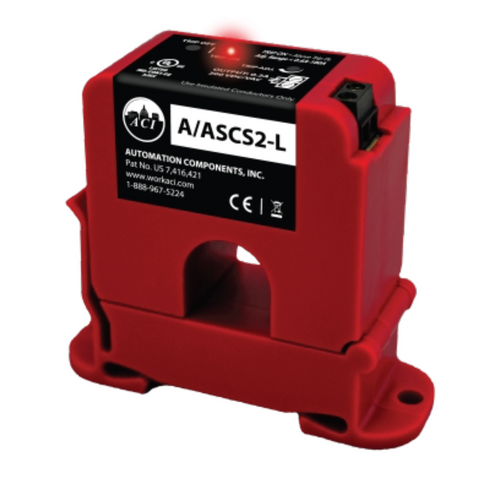

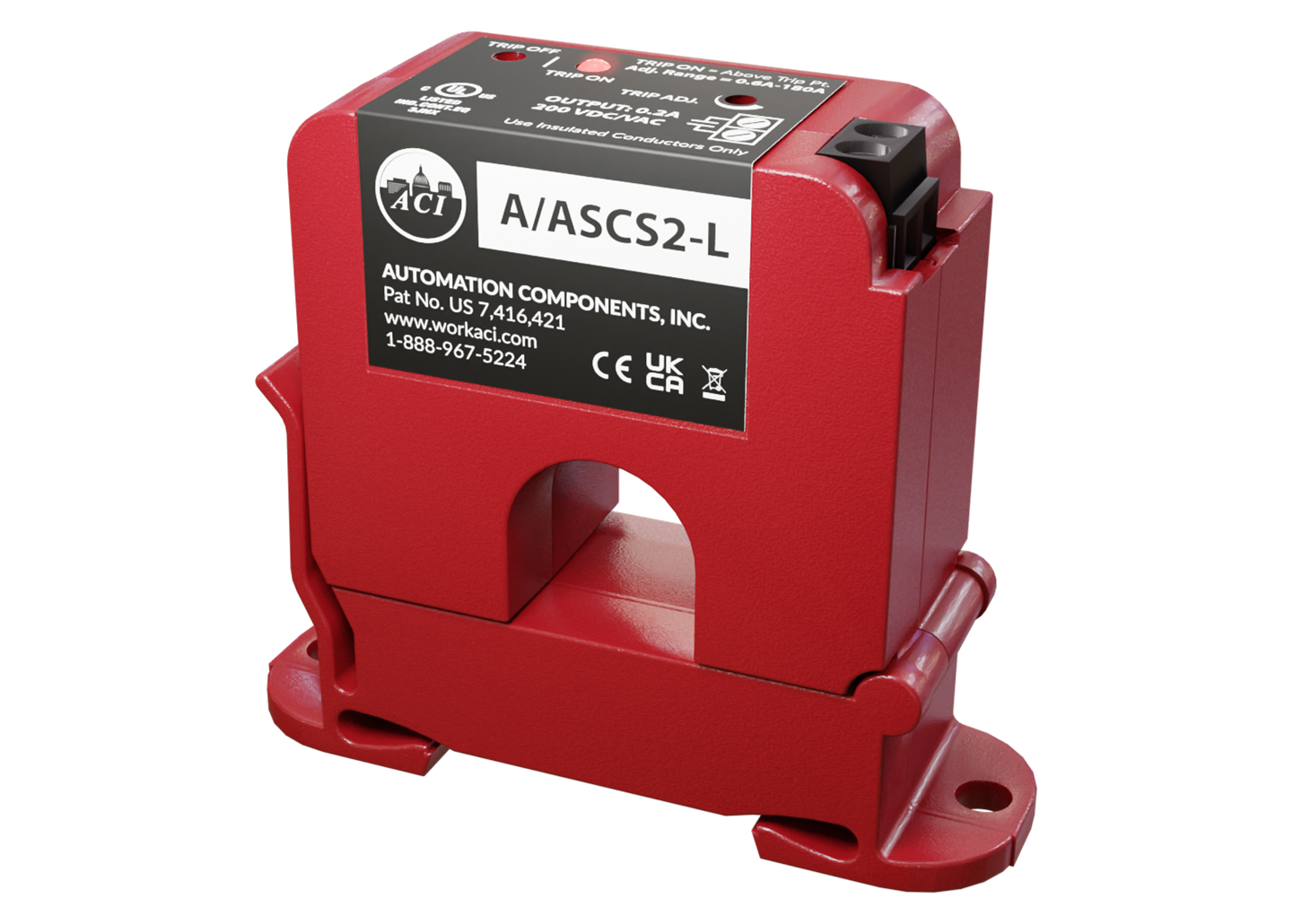

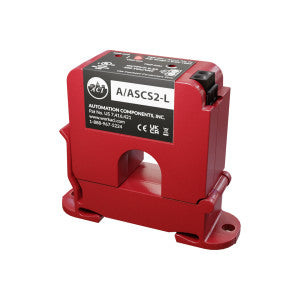

The ACI A/ASCS2-L is a split-core adjustable trip point current switch designed for AC current monitoring applications. With a normally open contact type and an amp range of 0-250A, it allows monitoring for equipment failure, preventative maintenance, status, and electrical load status.

• Split Core
• N/O 0-250A
• Adjustable Trip Point: 0.6 - 180A

Product Highlights

The current switch is split-core being ideal for retrofit applications and service technician vehicles due to easy installation without disconnecting wires.

Product Information

Standard Information

• Brand: ACI
• Manufacturer Part Number: A/ASCS2-L

Technical Specifications

• Adjustable Trip Point: 0.6 - 180A
• Output Switch Rating: 0.20A @ 200 VAC/VDC
• Monitored Current Type: AC Current
• Maximum AC Voltage: 600 VAC
• Operating Frequency Range: 40 to 1 kHz
• Core Style: Split Core
• Sensor Power: Induced from the Monitored Conductor
• Amperage Range: 0 to 250A
• Isolation Voltage: 2200 VAC
• Trip Point Style | Trip Point: 0.6 to 180A
• Contact Type: Normally Open
• “Status” Contact Rating: 0.2A @ 200 VAC/VDC
• Status LED Indication: Red LED (Current above Trip Point) | Blue LED (Current Below Trip Point)
• Aperture Size: 0.75 ” (19.05 mm)
• DIN Rail Mounting: 35 mm (U.S. Patent No. 7,416,421)
• Wiring Connections: 2 Position, Screw Terminal Block (Not Polarity Sensitive)
• Wire Size: 16 to 22 AWG (1.31 mm2 to 0.33 mm2) Copper Wires only
• Agency Approvals: UL/CUL US Listed (UL 508) Ind. Control Equipment (File # E309723), CE, RoHS2, WEEE
• Mounting Type: Split-Core
• Setpoint: Adjustable Trip
• Amp Range: 0-250A
• Trip Point: 0.6-180A
• Contact Rating: 0.2A @ 200VAC/VDC
• Frequency: 40 Hz to 1 kHz
• Outputs: Normally Open 0.3A @ 200 VAC/VDC Normally Closed 0.15A @ 300 VAC/VDC
• Isolation Rating: 2200 VAC
• Insulation Class: 600 VAC
• LED Indication: Adjustable: Red = Above trip point Green = Below trip point Fixed: Red = Above trip point
• Deadband: 10% Setpoint
• Operating Temperature: 5 ° to 104 °F (-15 ° to 40 °C)
• Operating Humidity: 0 to 95% RH (non-condensing)
• Enclosure Rating: NEMA 1
• Mounting: DIN rail (35 mm), screw
• Window Size: 0.75" (1.9 cm)
• Weight: 0.21 lb (0.1 Kg)
• Approvals: UL File #E309723 and #E179139 CE, RoHs
• Warranty: 5 years, limited
• Product Weight: A/ACS2 and A/ACSX2: 0.216 lbs. (0.097 kg) | A/ASCS2: 0.270 lbs. (0.123 kg) A/ASCSX2: 0.266 lbs. (0.121 kg) | A/ASCS2-L: 0.280 lbs. (0.127 kg)
• Product Dimensions: Solid Core Versions: 2.760 ” (70.11 mm) x 3.343 ” (84.92 mm) x 1.050 ” (26.67 mm) Split Core Versions: 2.780 ” (70.51 mm) x 3.238 ” (82.25 mm) x 1.120 ” (28.45 mm)
• Enclosure Material | Flammability Rating: PC/ABS (Polycarbonate/ABS Blend) | UL94-V0
• Terminal Block Torque Rating: 4.43 to 5.31 in-lbs. (0.5 to 0.6 Nm)
• Minimum Mounting Distance: 1 ” (2.6 cm minimum) between current switch (Relays, Contactors, Transformers)
• Operating Temperature Range: 5 to 104 °F (-15 to 40 °C)
• Operating Humidity Range: 0 to 95%, non-condensing
• Storage Temperature | RH Range: 41 to 95 °F (5 to 35 °C) | 40% to 85% RH, non-condensing
• Item Number: A/ASCS2-L
• Brand: ACI
• Current Core: Split Core
• Current Switch Type: Solid State
• Sensor: Current Switch
• Description: Split-Core, N/O, Adj. Switch
• Split Core: Yes
• Power Supply: Self-Powered
• Net Weight: 0.265 lbs
• Gross Weight: 0.29 lbs
