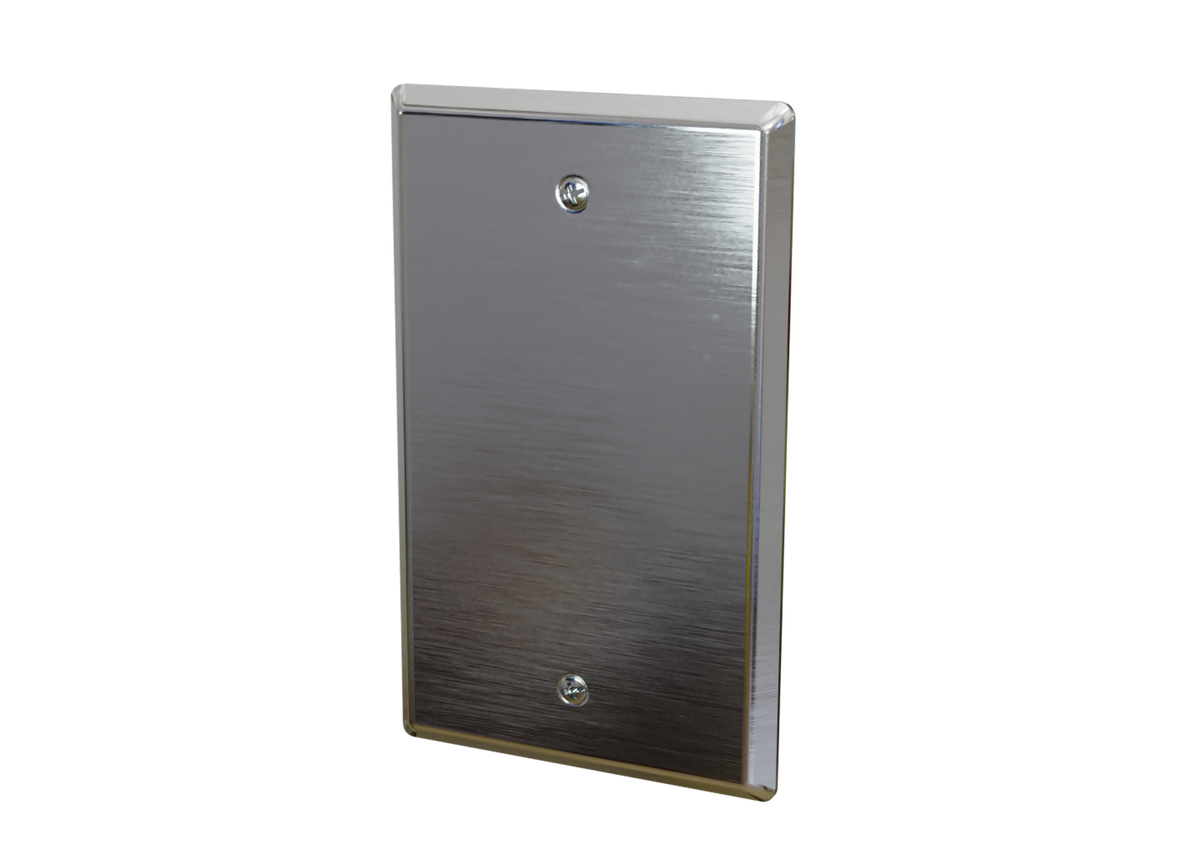

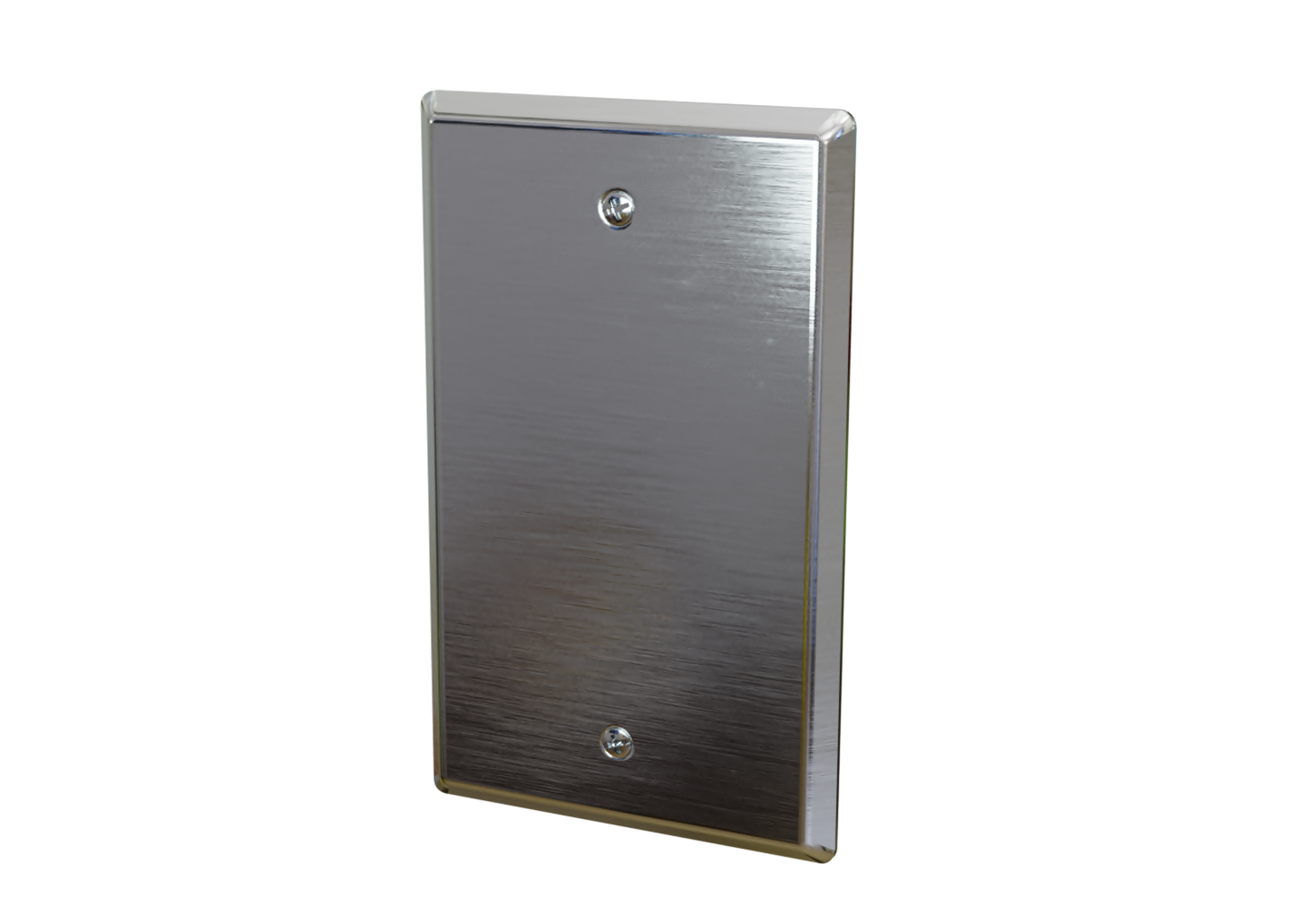

ACI A/1K-NI-SP RTD 1000 ohm (Nickel) Stainless Steel Wall Zone Plate with Override Temperature Sensor

Product Description

The ACI A/1K-NI-SP is a 1000 ohm nickel RTD temperature sensor designed for wall installation. This device features a stainless steel wall zone plate with an override temperature sensor. The design includes two fourteen inch 22 AWG Teflon lead wires. The ACI double encapsulation process helps protect the sensor from moisture and enhances thermal response times.

• Includes foam pad for insulation against thermal drafts.
• Compatible with standard single gang junction boxes or can be mounted directly into wall openings.
• Applications include monitoring ambient temperatures in schools and gymnasiums.

Product Highlights

Ideal for space temperature sensing and decorative wall plate applications.

Product Information

Standard Information

• Brand: ACI
• Part Number: A/1K-NI-SP

Technical Specifications

• Element Type: 1000 ohm (Nickel)
• Sensing Element: RTD
• Sensor Configuration: Wall Plate
• Sensor: Temperature
