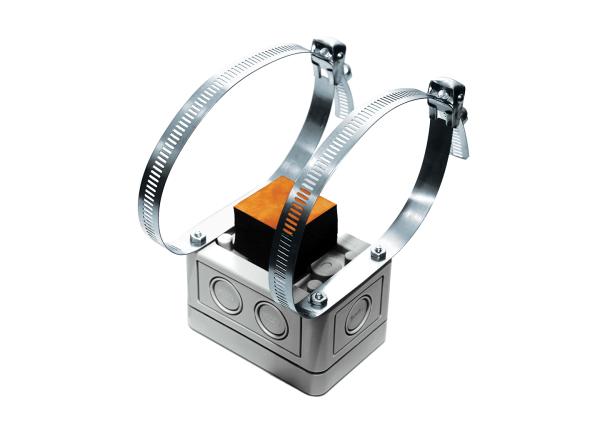

ACI A/1K-NI-S-GD 1000 Ohm Nickel RTD Strap On NEMA 4X

Product Description

The ACI A/1K-NI-S-GD is a 1000 Ohm Nickel RTD sensor designed for accurate temperature sensing. This strap-on sensor is housed in a NEMA 4X enclosure, making it suitable for various environments.

• Temperature coefficient: 6370 ppm/°C
• Response time: 8 seconds nominal
• Operating temperature range: -40 to 93°C

Product Highlights

This nickel RTD offers consistent temperature readings and stability over time. It is ideal for applications that require precise temperature measurement and can be installed on various pipe sizes.

Product Information

Standard Information

• Brand: ACI
• MPN: A/1K-NI-S-GD

Technical Specifications

• Sensor Type: Nickel RTD
• Sensor Curve: PTC
• Number of Sensing Points: One
• Number of Wires: Two (Non-Polarity Sensitive)
• Output @ 70°F: 1000 Ohms nominal
• Accuracy: ±1.52°C (at -40°C), ±0.4°C (at 0°C), ±0.17°C (at 21.1°C), ±0.56°C (at 54.4°C), ±1.25°C (at 121°C)
• Temperature Coefficient: 6370 ppm/°C
• Stability: ±0.05% after 1000 hours @ 150°C
• Maximum Operating Current: 0.3°C/mW
• Enclosure Material: Galvanized Steel
• NEMA Rating: NEMA 4X (IP 66)
• Storage Temperature Range: -40 to 85°C
• Operating RH Range: 10 to 95% RH
• Pipe Sizes Accepted: 1 1/4 (32mm) to 4 (100mm)
• Lead Length: 14 inches
• Conductor Size: 22 AWG
• Conductor Material: Silver Plated Copper
• Product Weight: 0.40 lbs
• Agency Approvals: CE, RoHS, WEEE
