Aci 144807 Relative Humidity with Temperature Transmitter 20 feet Probe

Product Description

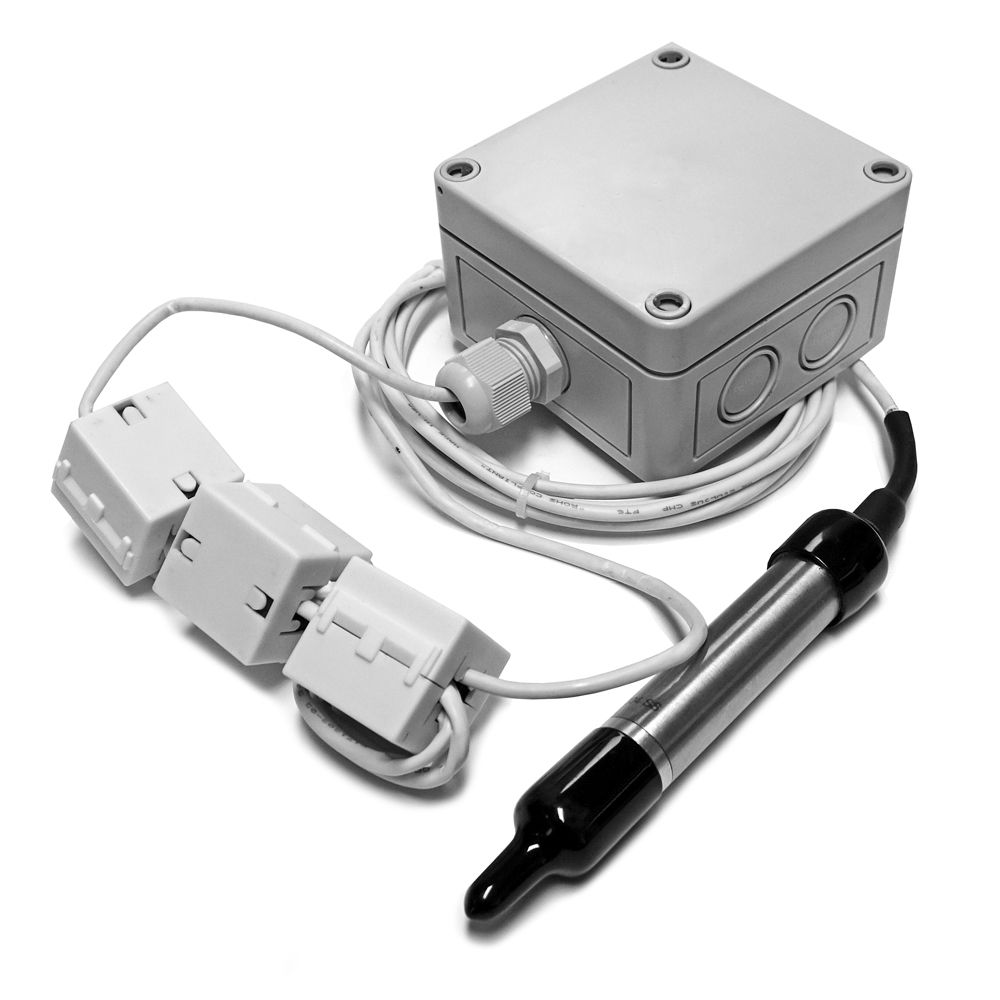

The ACI 144807 is a relative humidity transmitter with temperature output, featuring a remote 20-foot plenum-rated probe and a NEMA 4X enclosure. It provides selectable humidity outputs (0-5 VDC, 0-10 VDC and 4-20 mA default) and a 4-20 mA temperature output when used with the included 1,000 ohm RTD. The sensor uses a thermoset polymer capacitive element with a hydrophobic filter and conformally coated electronics for moisture resistance.

• Selectable RH outputs: 0-5 VDC, 0-10 VDC and 4-20 mA; temperature output 4-20 mA with 1,000 ohm RTD
• Remote plenum-rated 20 ft probe, NEMA 4X (IP66) enclosure, ±1% measurement accuracy with NIST certificate
• Thermoset polymer capacitive sensing element with hydrophobic sintered filter, conformally coated circuit board, DIP-switch single-point calibration

Product Highlights

Remote 20 ft plenum probe; multi-output humidity (0-5 V, 0-10 V, 4-20 mA); NEMA 4X enclosure; ±1% NIST accuracy

Product Information

Standard Information

• Brand: ACI
• Manufacturer Part Number: 144807

Technical Specifications

• Brand: ACI
• Manufacturer Part Number: 144807
• Component: Relative humidity transmitter with temperature output
• RH Outputs: 0-5 VDC, 0-10 VDC, 4-20 mA (default)
• Temperature Output: 4-20 mA (when configured with 1,000 ohm RTD)
• Temperature Sensor: 1,000 ohm RTD (included/option)
• Remote Probe Length: 20 ft (plenum-rated wiring harness)
• Probe Type: Remote plenum-rated probe
• Enclosure Rating: NEMA 4X / IP66
• Measurement Accuracy: ±1% (NIST certified)
• Calibration: Single-point field calibration via DIP switches (±0.5% RH per toggle); Zero and Span potentiometers for electronic calibration
• Circuit Coating: Conformally coated circuit board
• Filter: Hydrophobic sintered filter with vinyl cap for washdown protection
• Sensing Element Type: Thermoset polymer capacitive sensing element
• Output Signal Range: 4-20 mA, 0-5 VDC, 0-10 VDC
• Power Supply: AC or DC
