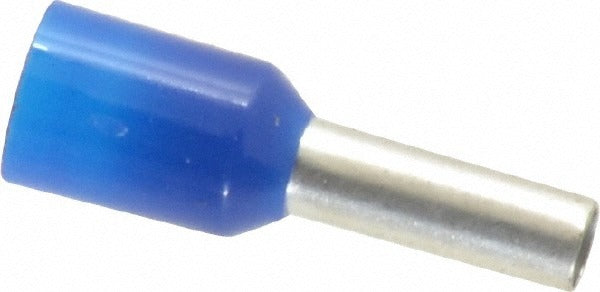

Aci 107666 Wire Ferrule 14 Awg Crimp Partially Insulated

Product Description

The ACI 107666 is a partially insulated crimp wire ferrule designed for terminating stranded 14 AWG conductors in industrial control panels, automation enclosures, and commercial electrical assemblies. The ferrule features an 8 mm pin length and a 2.6 mm pin diameter, with a 15 mm overall length including the blue insulation collar. The blue insulation color provides quick visual identification at the terminal block. Crimp termination creates a gas-tight connection that prevents conductor strand splaying, reduces contact resistance, and improves long-term connection reliability in vibration-prone environments. Licensed electricians and control panel builders use these ferrules before inserting conductors into screw-cage or spring-clamp terminal blocks.

These ferrules are suited for use in residential, commercial, and light industrial control wiring applications where stranded wire requires a clean, uniform termination. Typical installations include PLC panels, motor control centers, HVAC control boards, building automation systems, and DIN-rail terminal strip assemblies. The 14 AWG size accommodates conductors with a cross-sectional area of 2.5 square millimeters, which is a common wire gauge in 15-amp branch circuits and low-voltage control wiring. Minimum order quantity is 100 pieces per order, and package quantity is 1.

Key Features

• Partially insulated design with blue collar for fast visual AWG identification at terminal blocks
• Crimp connection type creates a gas-tight, strain-relieved conductor termination
• Fits 14 AWG stranded wire with a 2.5 square millimeter cross-sectional area
• 8 mm pin length and 2.6 mm pin diameter for proper seating in standard terminal block entries
• 15 mm overall length accommodates standard screw-cage and spring-clamp terminal blocks
• Prevents conductor strand splaying and reduces contact resistance at termination points

Compatibility

Designed for use with 14 AWG stranded conductors and standard screw-cage or spring-clamp terminal blocks that accept a 2.6 mm pin diameter. Suitable for any terminal block or DIN-rail connector rated for 14 AWG or 2.5 square millimeter wire.

Installation Notes

Installation requires a ratcheting crimp tool calibrated for the appropriate ferrule size to achieve a proper gas-tight crimp. De-energize and lock out the circuit before terminating conductors in any panel or enclosure. Strip conductor insulation to the correct length before inserting into the ferrule collar, ensuring no bare conductor extends beyond the pin tip. Work must comply with applicable NEC requirements for conductor termination and panel wiring practices.
