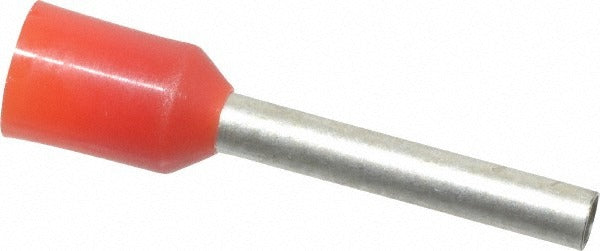

Aci 107663 Wire Ferrule 16 Awg Crimp Partially Insulated

Product Description

The ACI 107663 is a partially insulated crimp wire ferrule designed for use with 16 AWG conductors. Ferrules terminate stranded wire ends before insertion into screw-cage or push-in terminal blocks, preventing strand separation and reducing the risk of loose connections over time. This ferrule features a 12mm pin length and an 18.4mm overall length, with a 2mm pin diameter. The red insulation collar identifies it as a 16 AWG (1.5 sq mm) ferrule, consistent with standard color-coding conventions used across the industry. Electricians and panel builders use these when terminating control wiring in panels, enclosures, and automation equipment where consistent, secure terminations are required.

This ferrule is suited for residential, commercial, and light industrial electrical work where stranded wire must be terminated cleanly into terminal blocks, PLCs, or other din-rail mounted devices. The partially insulated design provides a grip collar that eases insertion and reduces conductor damage during crimping. Applications include control panel wiring, HVAC control circuit terminations, low-voltage wiring harnesses, and building automation panel assemblies. A proper ratcheting ferrule crimping tool should be used to achieve a consistent, gas-tight crimp on each ferrule.

Key Features

• Compatible with 16 AWG stranded conductors (1.5 sq mm)
• 12mm pin length with 18.4mm overall length and 2mm pin diameter
• Partially insulated red collar for AWG identification and handling ease
• Crimp termination style for reliable, repeatable connections
• Sold in minimum order quantities of 100 units per order

Compatibility

Designed as a standard crimp wire ferrule for use with 16 AWG stranded conductors in terminal block, PLC, and control panel wiring applications where ferrule terminations are required.

Installation Notes

Installation is performed by licensed electricians or qualified panel builders working on control and low-voltage wiring assemblies. Power down and de-energize all circuits before terminating or reworking wire connections inside any panel or enclosure. Use a ratcheting ferrule crimping tool sized for the 16 AWG range to ensure a proper crimp. Follow applicable NEC requirements for terminal block wiring and conductor preparation.
