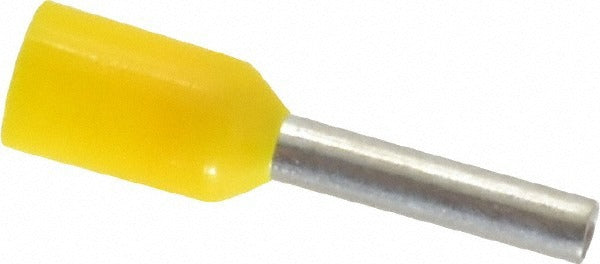

Aci 107662 Wire Ferrule 18 Awg Partially Insulated Crimp

Product Description

The ACI 107662 is a partially insulated crimp wire ferrule designed for terminating 18 AWG stranded conductors in control panels, instrumentation wiring, and other applications requiring a clean, reliable end-sleeve connection. The ferrule features an 8mm pin length and a 1.7mm pin diameter, with an overall length of 14.4mm. Yellow insulation color provides a quick visual reference for 18 AWG sizing at the terminal block. This type of ferrule is installed by electricians and panel builders to prevent conductor fraying and ensure consistent contact at screw-cage or spring-clamp terminals.

Partially insulated ferrules like the 107662 are commonly used in residential and commercial control wiring, PLC panel builds, HVAC control boards, and Building Automation System field wiring. The partial insulation sleeve protects the conductor entry point while keeping the exposed pin length short for compact terminal arrangements. Sold individually with a minimum order quantity of 100 pieces, making it suitable for panel shops or service technicians stocking consumable termination hardware.

Key Features

• Compatible with 18 AWG stranded wire (1 sq mm cross-section)
• Crimp termination style for fast, consistent installation with standard ferrule crimping tools
• Partial insulation sleeve in yellow for AWG size identification at a glance
• 8mm pin length with 14.4mm overall length fits standard screw-cage and spring-clamp terminal blocks
• Minimum order quantity of 100 pieces suits production panel builds and field service stock

Compatibility

Designed as an OEM-style crimp ferrule for use with 18 AWG stranded conductors in standard screw-cage and spring-clamp terminal block applications.

Installation Notes

Ferrule installation requires a ratcheting ferrule crimping tool sized for 18 AWG to achieve a correct, gas-tight crimp. Always de-energize and lock out the panel or circuit before terminating conductors at any terminal block. Strip the conductor to the correct bare length before inserting into the ferrule sleeve, then crimp fully before seating in the terminal. Follow applicable NEC requirements for control wiring methods and panel construction.
