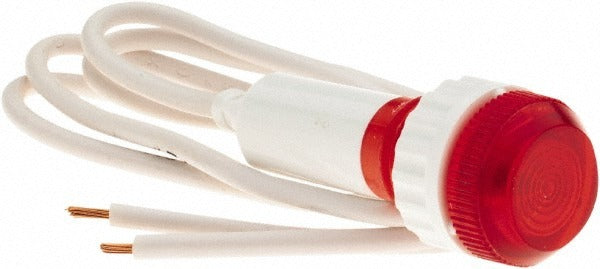

Aci 104114 Indicating Light 12 Volt Red Round Lens

Product Description

The ACI 104114 is a 12-volt indicating light with a red round lens, designed to provide clear visual status indication in electrical control panels and equipment enclosures. Operating at 12 volts, it uses lead-style wire connectors for straightforward integration into low-voltage control circuits. This type of pilot light is a standard component in HVAC control systems, industrial panels, and commercial electrical equipment where operators need a reliable at-a-glance status signal. Installation and replacement are typically handled by licensed electricians or HVAC controls technicians working on panel or equipment-level wiring.

The 104114 is suited for use in control panels, equipment cabinets, and instrumentation boards operating on 12-volt DC or AC circuits. Its round lens profile and lead connector configuration make it a common fit for retrofit and new-installation panel work across commercial and light industrial applications. The compact form factor allows installation in tight panel layouts without significant modification to existing cutouts or wiring harnesses.

Key Features

• 12-volt operating voltage for compatibility with low-voltage control circuits
• Red round lens for high-visibility status indication
• Lead-style wire connectors for direct panel wiring
• Lightweight at 0.2 pounds for easy handling and panel mounting
• Single-unit packaging suitable for service and replacement work

Compatibility

Designed as an OEM-style replacement indicating light for 12-volt control panels and equipment enclosures requiring a round red pilot light with lead connectors.

Installation Notes

Installation should be performed by a qualified electrician or controls technician. De-energize the control panel and verify the circuit is at zero voltage before removing the existing light or making any wiring connections. Secure lead connections with appropriate terminals or connectors rated for the circuit. Follow applicable NEC requirements for panel wiring and indicator light installations.
