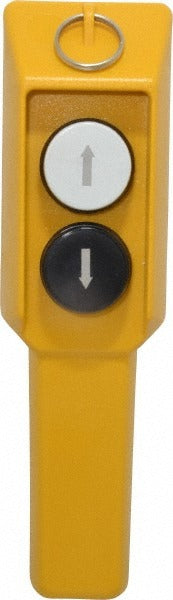

Aci 103727 Pendant Control Station 2-button 16A 600V

Product Description

The ACI 103727 is a pendant control station designed for momentary-contact switching in industrial and commercial electrical control applications. It houses two pushbutton operators with booted head covers that protect the contacts from dust, moisture, and accidental activation. The station is rated for 16 amps at 600 volts AC, making it suitable for motor control, hoist operation, and similar heavy-duty switching tasks. The NO/NC contact configuration gives installers flexibility to wire start/stop or raise/lower functions without additional auxiliary contacts. Mechanical interlock style is built in to prevent simultaneous activation. Licensed electricians and industrial controls technicians are the primary installers.

This pendant control station is built for use in industrial facilities, manufacturing floors, warehouses, and commercial settings where operators need hands-on, point-of-use control of motors, hoists, conveyors, or other electrically driven equipment. The pendant format allows the control to hang near the work area for immediate operator access. The two-operator configuration supports standard two-function control schemes such as start and stop or up and down. The booted head operators are particularly suited to environments where contamination or physical impact is a concern.

Key Features

• Momentary-action pushbuttons for start/stop or directional motor control applications
• NO/NC contact configuration supports flexible wiring without additional auxiliary contacts
• Booted head operators provide protection against dust, moisture, and unintended activation
• Mechanical interlock prevents simultaneous engagement of both operators
• Rated 16 amps at 600 volts AC for compatibility with standard industrial motor control circuits
• Two-operator layout in a single pendant enclosure reduces wiring complexity

Compatibility

Designed as an OEM-style replacement or new-installation pendant control station for industrial motor control and hoist applications requiring momentary NO/NC two-button switching at up to 600 volts AC.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements for industrial control wiring. De-energize and lockout/tagout the circuit and any connected motor or drive before making wiring connections. Verify that the supply voltage and amperage do not exceed the 600V AC and 16A ratings of the station. Inspect the booted head operators and enclosure for damage before placing the unit in service.
