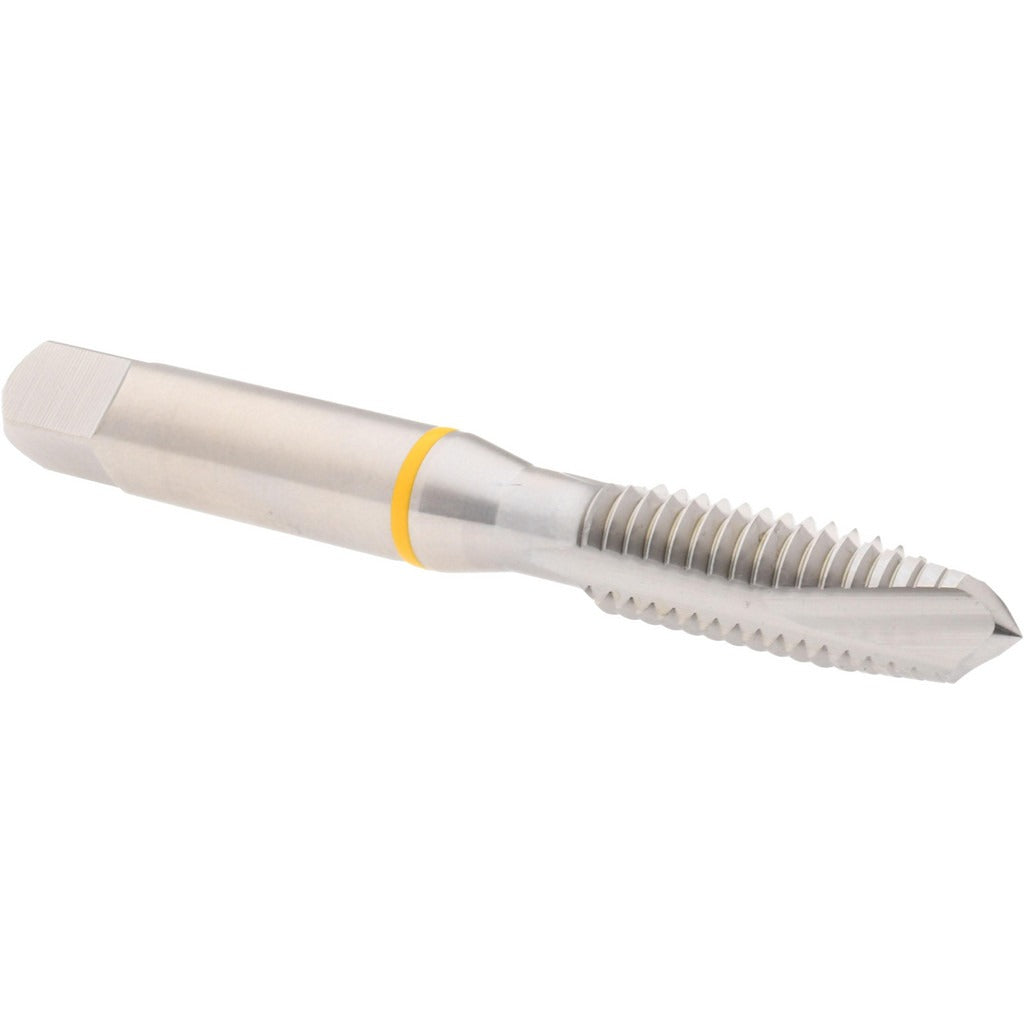

Accupro T2670482B Spiral Point Tap 3/8-16 Plug 2B Hss

Product Description

The ACCUPRO T2670482B is a spiral point tap designed to cut 3/8-16 unified coarse internal threads in through-hole applications. Built from 3% vanadium high speed steel with a bright finish, it delivers good wear resistance and edge retention without a coating. The plug chamfer distributes cutting load across the leading threads for consistent thread form entry. With 3 flutes and a right-hand cutting direction, chips are pushed ahead of the tap into the hole rather than packing behind the cutting edges. Overall length is 2.94 inches (74.61 mm) and thread cutting length is approximately 0.94 inches (24 mm). Machinists and tool-and-die tradespeople are the primary users.

This tap is rated for a 2B class of fit, which is the standard tolerance class for the majority of general-purpose threaded fastener applications in production machining and maintenance environments. The material application listed by the manufacturer is aluminum, making it a practical choice for threading aluminum castings, extrusions, and plate stock in through-hole configurations where chip evacuation forward through the hole is possible. It is suitable for both machine tapping and hand tapping setups where the workpiece is fully supported.

Key Features

• 3/8-16 UNC thread form, right-hand cutting direction
• Spiral point geometry pushes chips forward, reducing chip packing in through-hole applications
• 3% vanadium high speed steel for improved wear resistance over standard M2 HSS
• Plug chamfer (3-5 thread lead) for standard through-hole starting and cutting
• 2B class of fit for general-purpose threaded assembly
• Bright finish with no coating — suitable for use with cutting fluid as required by workpiece material

Compatibility

Designed for use in through-hole tapping applications requiring a 3/8-16 UNC internal thread, primarily in aluminum workpieces. Fits standard 3/8-16 tap holders, tapping heads, and CNC rigid-tap tool holders with a 9.68 mm shank diameter.

Installation Notes

Install in a properly sized tap holder or collet chuck rated for the shank diameter before use. Ensure the machine spindle or drill press is powered down and the workpiece is securely clamped before tool changes. Apply an appropriate cutting fluid for the workpiece material to extend tap life and improve thread finish. Follow shop-standard speed and feed tables for tapping aluminum with HSS tooling; do not exceed recommended RPM for the thread size and material combination.
