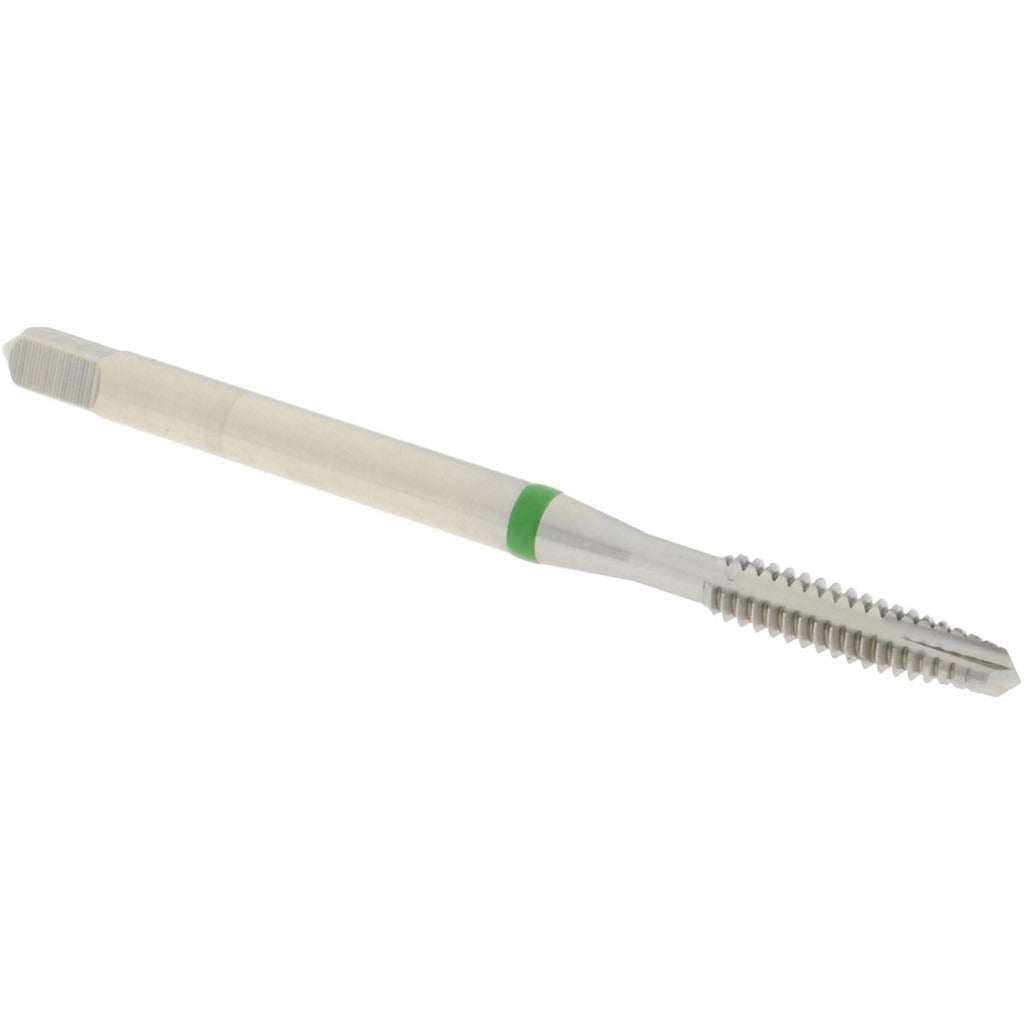

Accupro T2640242B Spiral Point Tap 6-32 3 Flutes Plug 2B

Product Description

The ACCUPRO T2640242B is a spiral point tap designed for cutting 6-32 unified coarse threads in steel and similar materials. It features a plug chamfer style with a right-hand thread direction and a 2B class of fit, making it suitable for standard through-hole tapping applications where thread tolerance is critical. Manufactured from 3% vanadium high speed steel with a bright finish, this tap delivers durability in production and maintenance tapping operations. It carries three flutes and a 13 mm thread length, with an overall length of 2 inches (50.8 mm). This tap is commonly installed by machinists, maintenance technicians, and tool-and-die professionals working on steel components.

This tap is intended for tapping 6-32 threads in steel workpieces in both production shop and maintenance environments. The spiral point geometry pushes chips forward ahead of the tap, making it well suited for through-hole applications where chip evacuation is a priority. It is not designed for blind-hole tapping. Typical applications include tapping threads in sheet metal, mild steel brackets, and machine components where a 2B fit tolerance is required.

Key Features

• 6-32 thread size with right-hand thread direction and 2B class of fit
• Plug chamfer for standard through-hole tapping entry
• 3 flutes with spiral point geometry for forward chip ejection
• Manufactured from 3% vanadium high speed steel for wear resistance in steel applications
• Bright finish with no coolant-through feature; suitable for use with cutting fluid applied externally
• 13 mm thread length and 2.0 inch overall length in a compact form factor

Compatibility

Designed for tapping 6-32 UNC threads in steel materials. Fits standard tap holders and tap wrenches sized for a 3.58 mm shank diameter. Consult tool holder specifications before use to confirm shank compatibility.

Installation Notes

This tap should be installed and operated by a qualified machinist or maintenance technician familiar with thread-cutting tools. Secure the workpiece firmly before tapping and use a cutting fluid appropriate for the material being tapped to extend tap life and improve thread quality. Always ensure the tap is properly aligned with the drilled hole to prevent tap breakage. Inspect the tap for wear or damage before each use and replace if cutting edges show signs of dulling or chipping.
