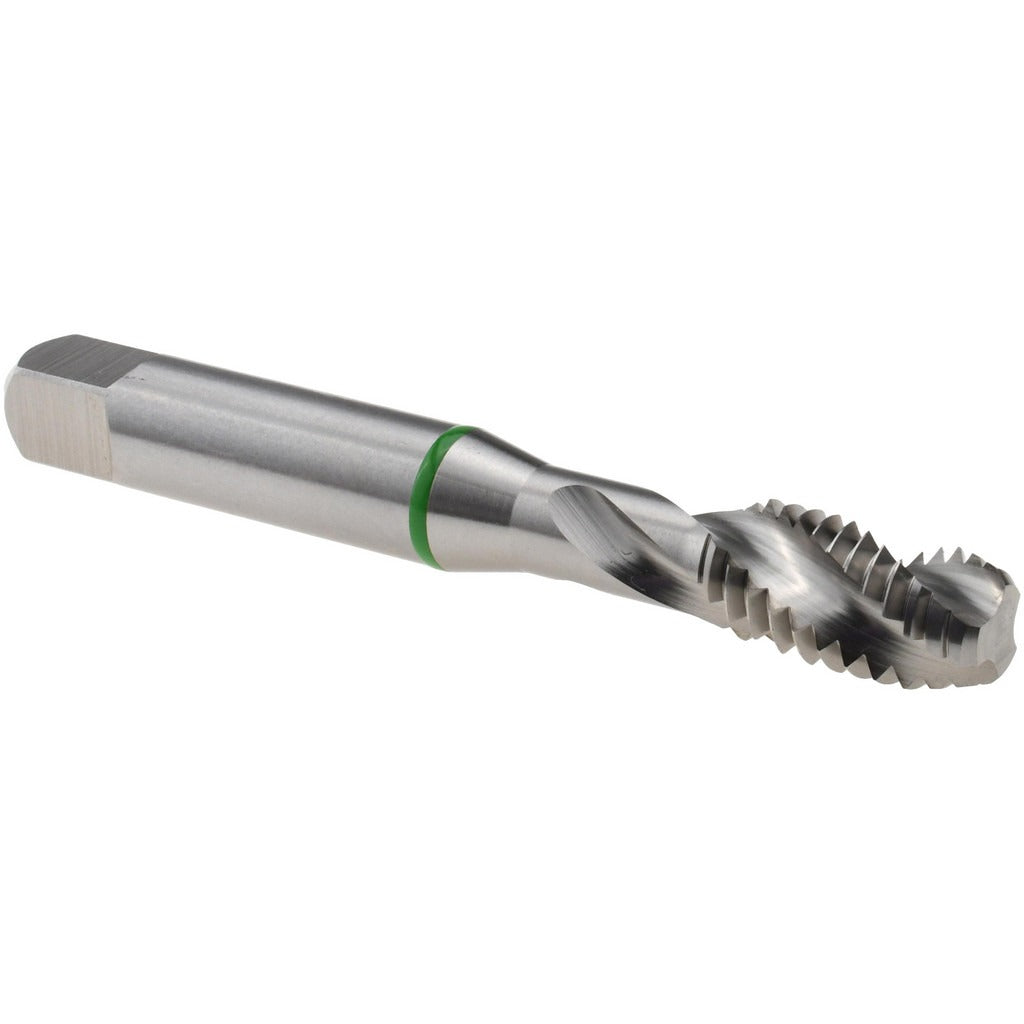

Accupro T2634485 Spiral Flute Tap 3/8-16 Modified Bottoming

Product Description

The ACCUPRO T2634485 is a spiral flute tap designed for threading 3/8-16 inch holes in production and maintenance machining applications. Built from 3% vanadium high-speed steel with a bright/uncoated finish, it delivers solid wear resistance in a range of ferrous and non-ferrous workpiece materials. The tap features 3 right-hand flutes with a 33-degree helix angle, which helps evacuate chips upward out of the hole during tapping. The modified bottoming chamfer allows threading close to the bottom of blind holes while still providing enough lead to start cleanly. Overall length is 2-15/16 inches with a thread length of 16 mm. This tap is intended for machinists, tool and die makers, and maintenance technicians working with standard fractional inch thread forms.

This tap is suited for blind-hole and through-hole applications where a 3/8-16 UNC thread form is required. The 2B class of fit produces a standard commercial-tolerance internal thread appropriate for general fastener assembly. The H5 thread limit provides consistent sizing for applications where controlled fit is required. The spiral flute design makes it well suited for interrupted cuts and softer materials where chip flow out of the hole is critical to thread quality. It is commonly used in manual tapping, CNC machining centers, and drill press setups.

Key Features

• 3/8-16 UNC thread size with 2B class of fit for standard commercial tolerance
• Modified bottoming chamfer for threading near the base of blind holes
• 33-degree helix angle promotes upward chip evacuation during spiral flute tapping
• 3% vanadium high-speed steel construction for improved wear resistance
• H5 thread limit for controlled internal thread sizing
• Right-hand thread and right-hand flute direction for conventional tapping setups

Compatibility

Designed as a standard replacement or production tap for 3/8-16 UNC threading applications in manual and CNC tapping operations across general machining, maintenance, and fabrication environments.

Installation Notes

Install in a tap holder, collet chuck, or floating tap holder appropriate for the shank diameter of 9.68 mm. Always ensure the workpiece and tapping fixture are securely clamped before beginning the tapping cycle. Apply cutting fluid appropriate for the workpiece material to extend tool life and improve thread finish. Inspect the tap for wear or chipping before each use and replace when thread quality degrades.
