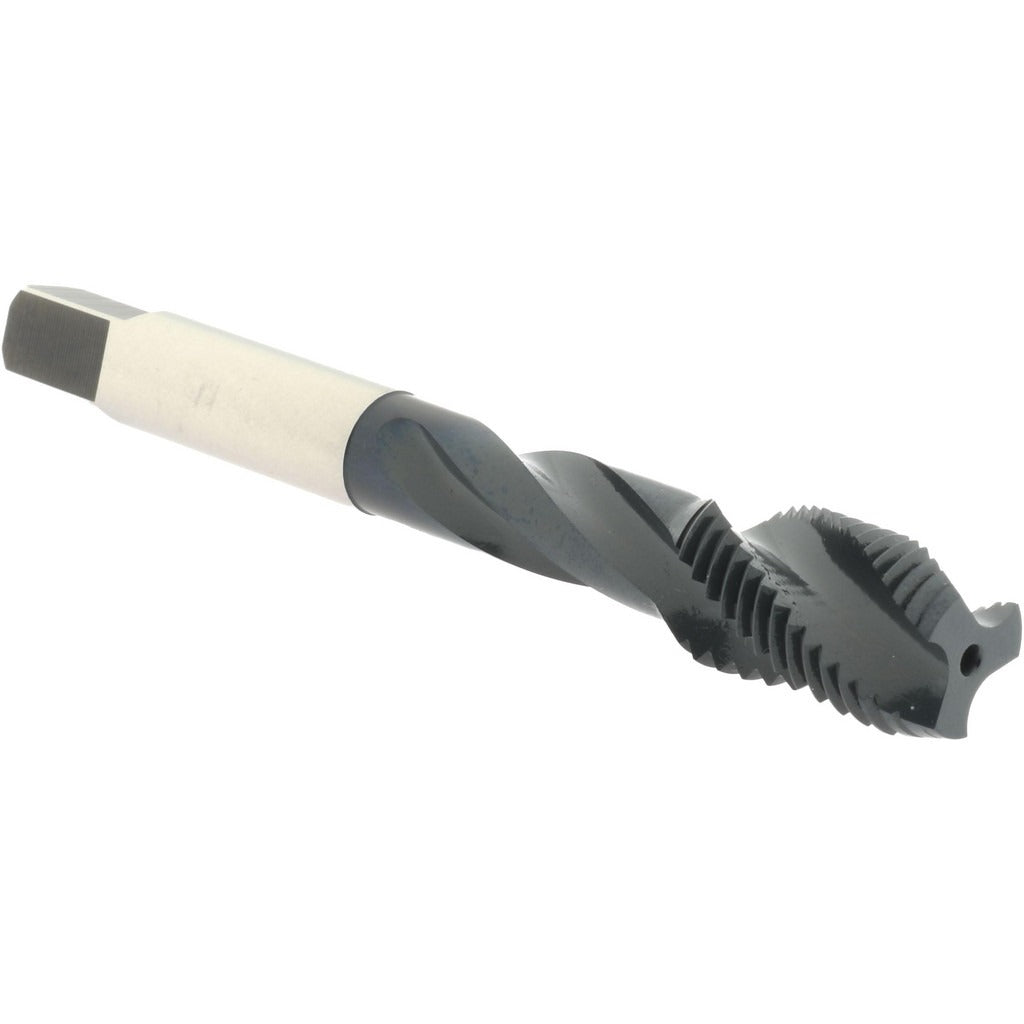

Accupro T1634545 Spiral Flute Tap 7/16-20 3 Flute 2B

Product Description

The ACCUPRO T1634545 is a spiral flute tap designed to cut 7/16-20 unified fine threads in through-hole and modified bottoming applications. Built from vanadium high speed steel with an oxide finish, it delivers consistent thread quality in ferrous and non-ferrous materials. The 3-flute, right-hand spiral design with a 33-degree helix angle evacuates chips upward out of the hole, reducing the risk of chip packing in blind bores. Machined to a 2B class of fit and an H5 thread limit, it produces threads that meet standard tolerance requirements for general fastener assembly. This tap is installed by machinists and tool-and-die professionals on manual and CNC machine tools.

The T1634545 is suited for production threading in job shops, maintenance facilities, and manufacturing environments. The modified bottoming chamfer allows threading closer to the bottom of a blind hole than a standard plug chamfer while still providing adequate lead-in guidance. The 0.708-inch thread length accommodates typical 7/16-20 thread engagement requirements in steel, aluminum, and similar workpiece materials. Coolant-through capability is not present, so flood or mist cooling is applied externally at the cutting zone.

Key Features

• 7/16-20 unified fine thread form, right-hand thread and right-hand flute direction
• Modified bottoming chamfer for threading close to the bottom of blind holes
• 3-flute spiral design with 33-degree helix angle for upward chip evacuation
• Vanadium high speed steel construction for wear resistance and toughness
• Oxide finish reduces friction and provides light corrosion resistance during storage and use
• H5 thread limit and 2B class of fit for standard tolerance fastener threads

Compatibility

Designed as an OEM-style threading tool for use in standard 7/16-20 tapping applications on manual mills, drill presses, lathes, and CNC machining centers equipped with appropriate tap holders or tapping heads.

Installation Notes

A licensed machinist or experienced tooling technician should select the correct tap drill size for 7/16-20 threads before use. The spindle and workpiece must be fully stopped and secured before installing or removing the tap from its holder. Use appropriate tapping fluid or cutting oil to extend tool life and improve thread finish, particularly in steel. Inspect the tap for wear or chipping after extended use, as a damaged tap can produce out-of-tolerance threads or break in the hole.
