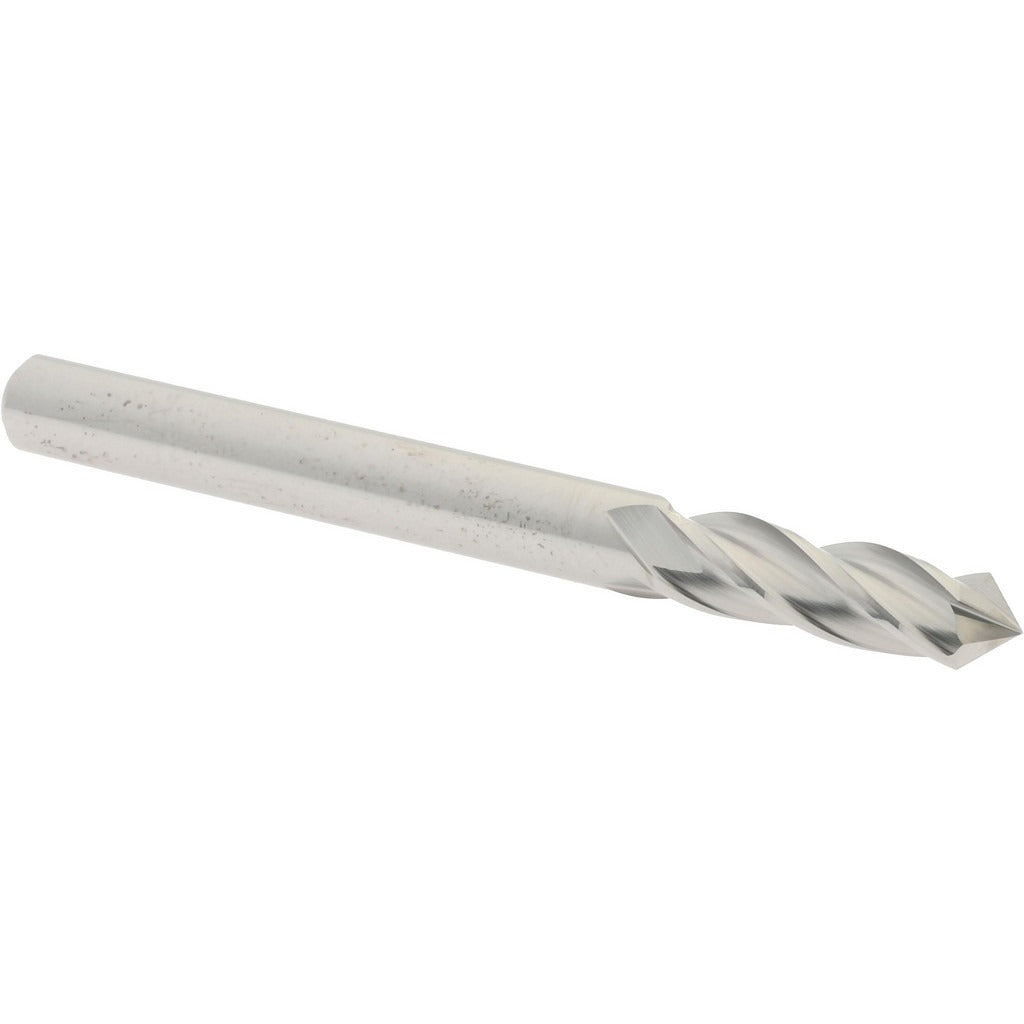

Accupro SCCMG-606-DP-PL Drill Mill 3/16 in 4 Flute Carbide

Product Description

The ACCUPRO SCCMG-606-DP-PL is a solid carbide drill mill designed for combined drilling and milling operations in a single tool. It features a 3/16 inch diameter cutting end, a 90-degree point angle, and 4 right-hand flutes with a right-hand cutting direction. The 5/8 inch length of cut and micrograin carbide construction make it well suited for precise, demanding work in ferrous and non-ferrous materials. The uncoated finish keeps regrinding straightforward. Machinists and tool-and-die professionals install this tool in CNC machining centers and manual mills where space-saving multi-function tooling is required.

This drill mill is used in production and job-shop environments where a single tool must spot, drill, and mill in one operation, reducing tool changes and setup time. The 3/16 inch shank diameter matches the cutting diameter, allowing direct chuck or collet mounting in standard toolholding systems. It is applicable to light-metal fabrication, mold work, and precision part machining where tight tolerances on hole location and sidewall finish are required.

Key Features

• Solid micrograin carbide construction for rigidity and wear resistance in demanding cuts
• 90-degree point angle enables accurate spotting and center-drilling before full-depth milling
• 4 right-hand flutes with right-hand cutting direction for efficient chip evacuation
• Uncoated finish allows straightforward resharpening and regrinding
• 3/16 inch shank diameter matches cutting diameter for direct collet or chuck mounting
• Mill diameter tolerance of +0.000 / -0.002 inches supports close-tolerance work

Compatibility

Designed for use in CNC machining centers and manual milling machines accepting a 3/16 inch round shank via collet, end mill holder, or drill chuck. Suitable for applications requiring combined spotting, drilling, and end milling in a single tool pass.

Installation Notes

Installation and tool changes must be performed with the machine powered down and all motion stopped. Secure the 3/16 inch shank in a properly sized collet or end mill holder and torque the retention nut according to the toolholder manufacturer specifications. Verify runout at the cutting diameter before engaging the workpiece. Follow applicable shop safety standards and machine manufacturer guidelines for feeds, speeds, and depth of cut when using carbide tooling.
