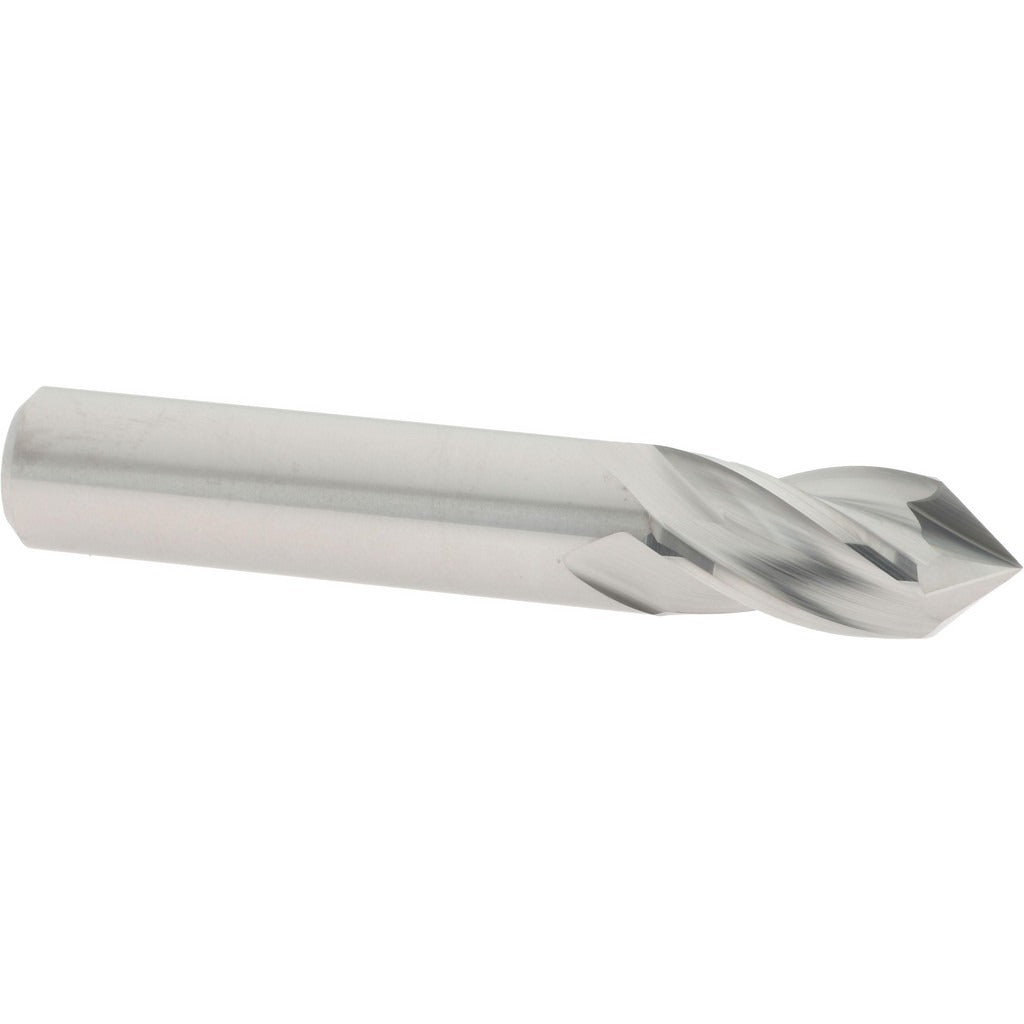

Accupro SCCMG-1616-DP-P Drill Mill 1/2 in 4 Flute Carbide

Product Description

The ACCUPRO SCCMG-1616-DP-P is a solid carbide drill mill designed for combined drilling and milling operations in a single tool. With a 1/2 inch diameter and a 90-degree point angle, it transitions cleanly between plunge cutting and peripheral milling without a tool change. The 4-flute, right-hand cutting geometry and right-hand flute direction provide efficient chip evacuation and stable cutting action. Micrograin carbide construction delivers hardness and edge retention suited to demanding machining environments. The uncoated finish makes it compatible with a wide range of cutting fluids and workpiece materials. Machinists and tool-and-die professionals install this tool in CNC machining centers and manual mills.

This drill mill is suited for shops performing contour milling, spot drilling, and chamfering where consolidating operations reduces cycle time. The 1/2 inch shank diameter fits standard ER and end mill collet systems. A 1 inch length of cut accommodates moderate-depth pockets and through-holes in ferrous and non-ferrous materials. The 3 inch overall length provides sufficient reach for most standard fixturing setups without sacrificing rigidity.

Key Features

• Solid micrograin carbide construction for hardness and extended edge life
• 90-degree point angle enables accurate plunge entry and chamfering in one pass
• 4-flute, right-hand cut and right-hand flute geometry for stable chip removal
• 1 inch length of cut handles moderate-depth pocketing and drilling applications
• Uncoated finish compatible with a broad range of coolants and workpiece materials
• Mill diameter tolerance of +0.000 / -0.002 inches for consistent fit in close-tolerance work

Compatibility

Designed as a direct-fit replacement for standard 1/2 inch shank drill mill applications in CNC machining centers and manual milling machines equipped with ER collet chucks or end mill holders.

Installation Notes

Installation should be performed by a qualified machinist following the machine tool manufacturer's tooling and runout specifications. Verify collet or holder bore cleanliness and proper seating depth before tightening. Confirm spindle is fully stopped and machine is in a safe state before tool changes. Do not exceed the tool's recommended depth-of-cut or feed rates as specified by your machining program and material data.
