Accupro SCCMG-1212-DP-P Drill Mill 3/8 in 4 Flute Carbide

Product Description

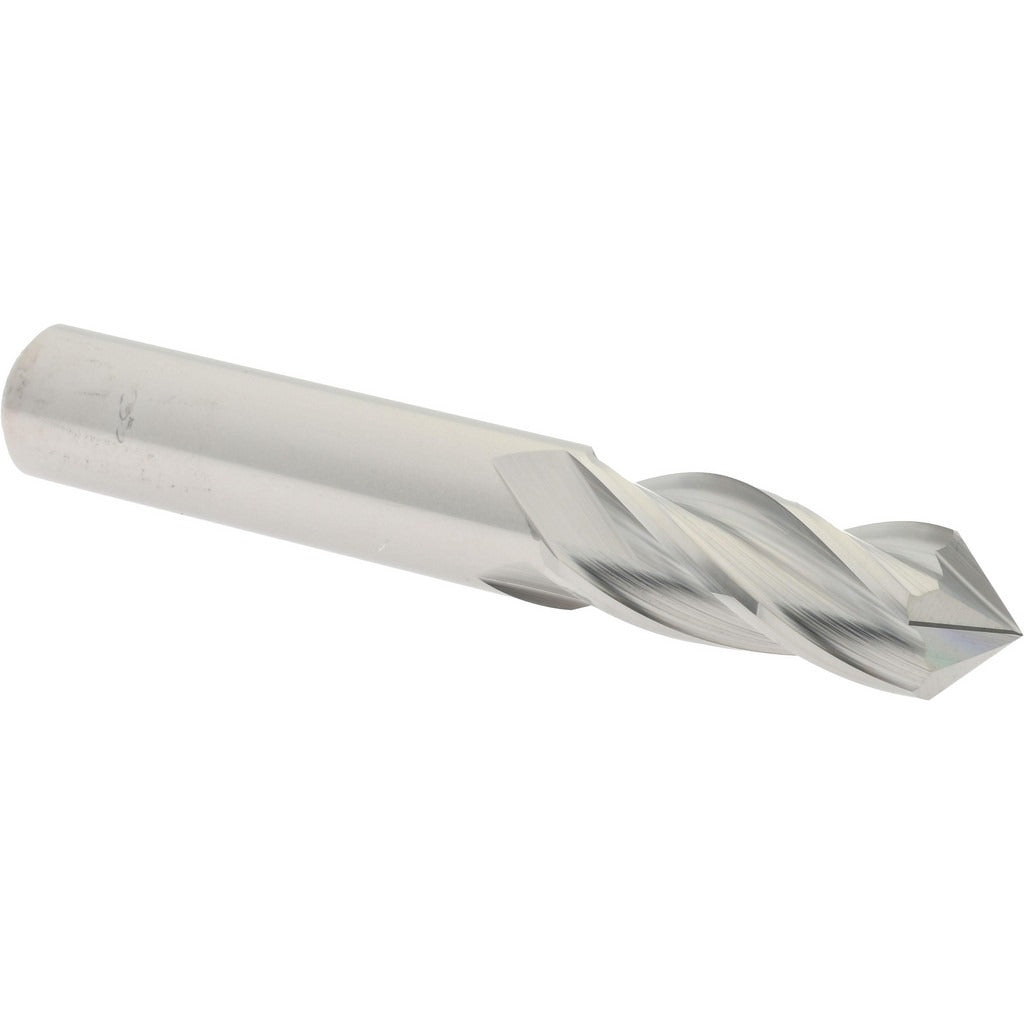

The ACCUPRO SCCMG-1212-DP-P is a solid carbide drill mill designed for combined drilling and end milling operations in a single tool. With a 3/8-inch cutting diameter, a 90-degree point angle, and four flutes, it removes material efficiently in both plunge and peripheral cutting passes. The micrograin carbide construction provides the hardness and edge retention needed for demanding machining cycles. Right-hand cutting and right-hand flute direction make it compatible with standard spindle setups. Machinists and tooling professionals working in job shops, production environments, or toolrooms are the primary users of this style of cutter.

This drill mill suits applications where a single tool must spot, drill, and mill in close-tolerance work. The 1-inch length of cut gives adequate reach for most shallow-pocket and counterbore operations. The uncoated finish makes it a straightforward choice for use with cutting fluid on a range of ferrous and non-ferrous materials. The 3/8-inch shank diameter fits standard ER collets and end mill holders commonly found on CNC machining centers and manual knee mills.

Key Features

• Solid micrograin carbide construction for superior hardness and wear resistance
• 90-degree point angle enables accurate spotting and true-position drilling
• Four flutes provide good chip evacuation and a balance of strength and cutting speed
• Right-hand cut and right-hand helix for standard spindle compatibility
• Uncoated finish suitable for use with cutting fluid across a range of materials
• 3/8-inch shank fits ER collet chucks and standard end mill holders

Compatibility

Designed as an OEM-style replacement or direct application tool for CNC machining centers and manual mills accepting a 3/8-inch shank diameter via ER collets or end mill holders.

Installation Notes

Installation and tool changes should be performed by a qualified machinist with the spindle fully stopped and machine in a safe, locked-out state. Seat the shank fully in the collet or holder and torque the nut to the toolholder manufacturer's specification. Verify runout with a dial indicator before beginning a cut. Do not exceed the tool's rated depth of cut or use feeds and speeds outside the manufacturer's recommended parameters for the workpiece material.
