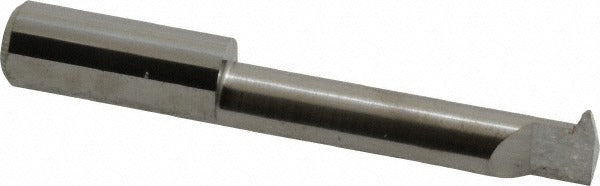

Accupro SAT3601500-10 Threading Tool 10 Tpi Internal Carbide

Product Description

The ACCUPRO SAT3601500-10 is a single point threading tool designed for internal thread cutting on CNC lathes and turning centers. Machined from solid carbide, it delivers consistent thread form and dimensional accuracy across production runs. The tool carries a 29-degree profile angle and cuts at 10 threads per inch (TPI) with a minimum threading diameter of 0.36 inches and a cut depth of 1.5 inches. The bright, uncoated finish makes it well-suited for non-ferrous metals and materials where coating adhesion is not required. Machinists and CNC operators working in precision threading applications will find this tool a direct-fit solution for internal thread profiles.

This tool is suited for internal threading operations in job shop, production machining, and contract manufacturing environments. With a 3/8-inch shank diameter and an overall length of 2.5 inches, it fits standard boring bar holders and live tooling setups on most CNC turning equipment. The 0.085-inch projection from edge and 0.037-inch flat width support clean thread form at 10 TPI without chatter in properly supported setups. It is typically installed by CNC machinists or tool-and-die professionals performing internal thread operations on turned components.

Key Features

• Solid carbide construction for rigidity and wear resistance in precision threading
• 29-degree profile angle for accurate internal thread form geometry
• 10 TPI maximum thread capacity with 1.5-inch cut depth
• Bright/uncoated finish suitable for non-ferrous and specialty material applications
• 0.085-inch projection from edge for controlled thread engagement
• 3/8-inch shank diameter fits standard turning center toolholders

Compatibility

Designed as an OEM-style single point threading insert tool for internal threading operations on CNC lathes and turning centers accepting a 3/8-inch shank boring bar or threading toolholder.

Installation Notes

Installation should be performed by a qualified CNC machinist or toolroom technician. Power down and lock out the machine spindle before seating or removing the tool from the holder. Confirm shank seating depth and toolholder clamping torque per the machine tool manufacturer specifications before running. Do not exceed the rated cut depth or minimum threading diameter for this tool.
