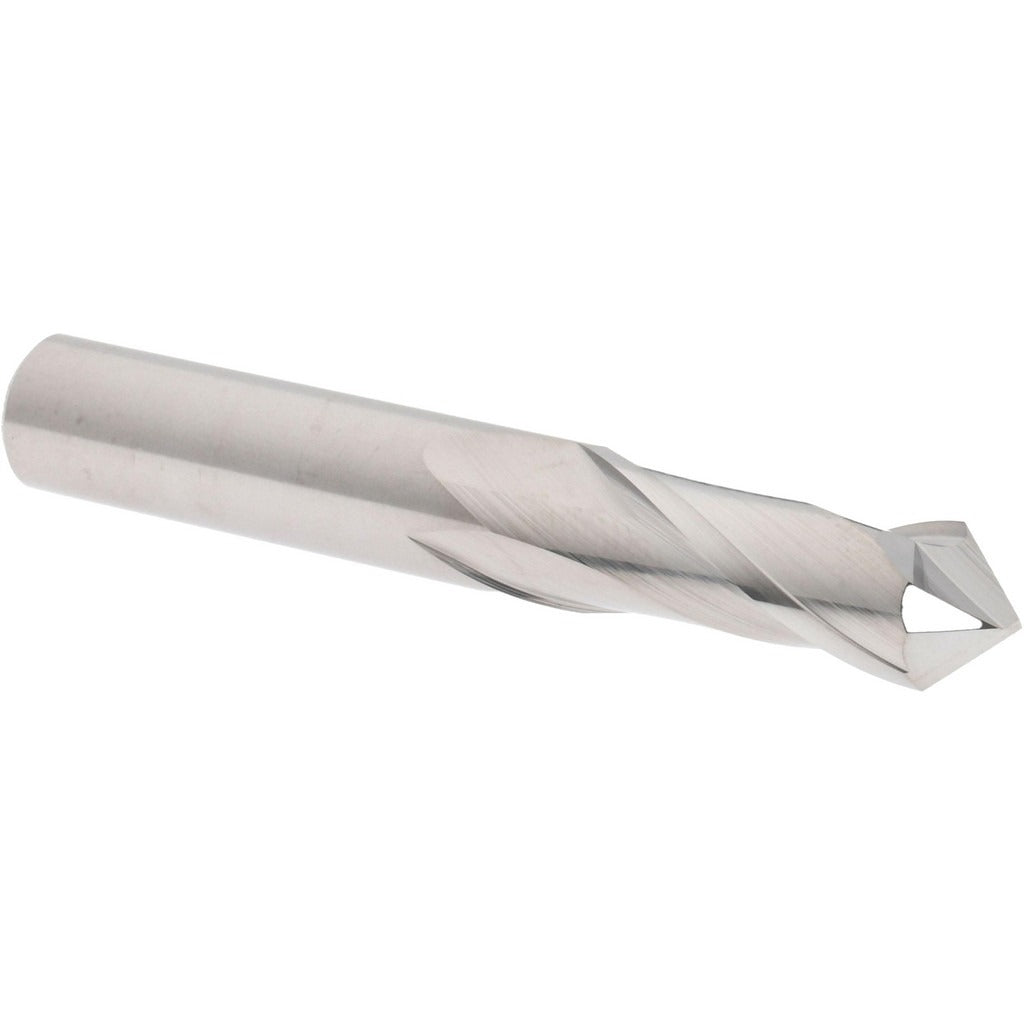

Accupro SAMG-1212-DP-PL Drill Mill 3/8 in 2 Flute Carbide

Product Description

The ACCUPRO SAMG-1212-DP-PL is a solid carbide drill mill designed for combined drilling and milling operations in a single tool. With a 3/8 inch cutting diameter, a 90-degree point angle, and a 1 inch length of cut, this drill mill handles center drilling, spotting, chamfering, and peripheral milling without a tool change. The micrograin carbide construction delivers edge retention and wear resistance at elevated spindle speeds. Right-hand cut and right-hand flute geometry suit standard CNC machining center setups. Machinists and tool-and-die professionals use this tool when cycle time reduction and tool consolidation are priorities in ferrous and non-ferrous work.

This drill mill is suited for use in CNC machining centers and manual milling machines where a single tool needs to perform both axial drilling and radial milling operations. The 3/8 inch shank diameter fits standard ER collet chucks and side-lock holders commonly found in production and job-shop environments. The uncoated finish makes it a straightforward choice for applications where regrinding or cost-per-edge economics are a consideration. It is appropriate for aluminum, brass, mild steel, and similar materials where an uncoated micrograin carbide edge performs reliably.

Key Features

• 3/8 inch cutting diameter with matching 3/8 inch shank for direct collet mounting
• 90-degree point angle supports spotting, chamfering, and center drilling functions
• 1 inch length of cut allows moderate-depth peripheral milling passes
• Micrograin solid carbide substrate for edge sharpness and wear resistance
• 2-flute right-hand geometry promotes chip evacuation in drilling mode
• Uncoated finish compatible with standard regrind programs

Compatibility

Designed as an OEM-style replacement and general-use drill mill for CNC machining centers and milling machines accepting 3/8 inch shank tooling with standard ER or side-lock collet systems.

Installation Notes

Installation is performed by qualified machinists or CNC setup technicians. Ensure the machine spindle is fully stopped and locked out before loading or changing tooling. Secure the 3/8 inch shank firmly in a matched collet or holder and verify runout with a dial indicator before production use. Follow the machine tool manufacturer guidelines for recommended speeds and feeds for the workpiece material.
