Accupro QA-0 M10 Tapping Adapter Series We 0

Product Description

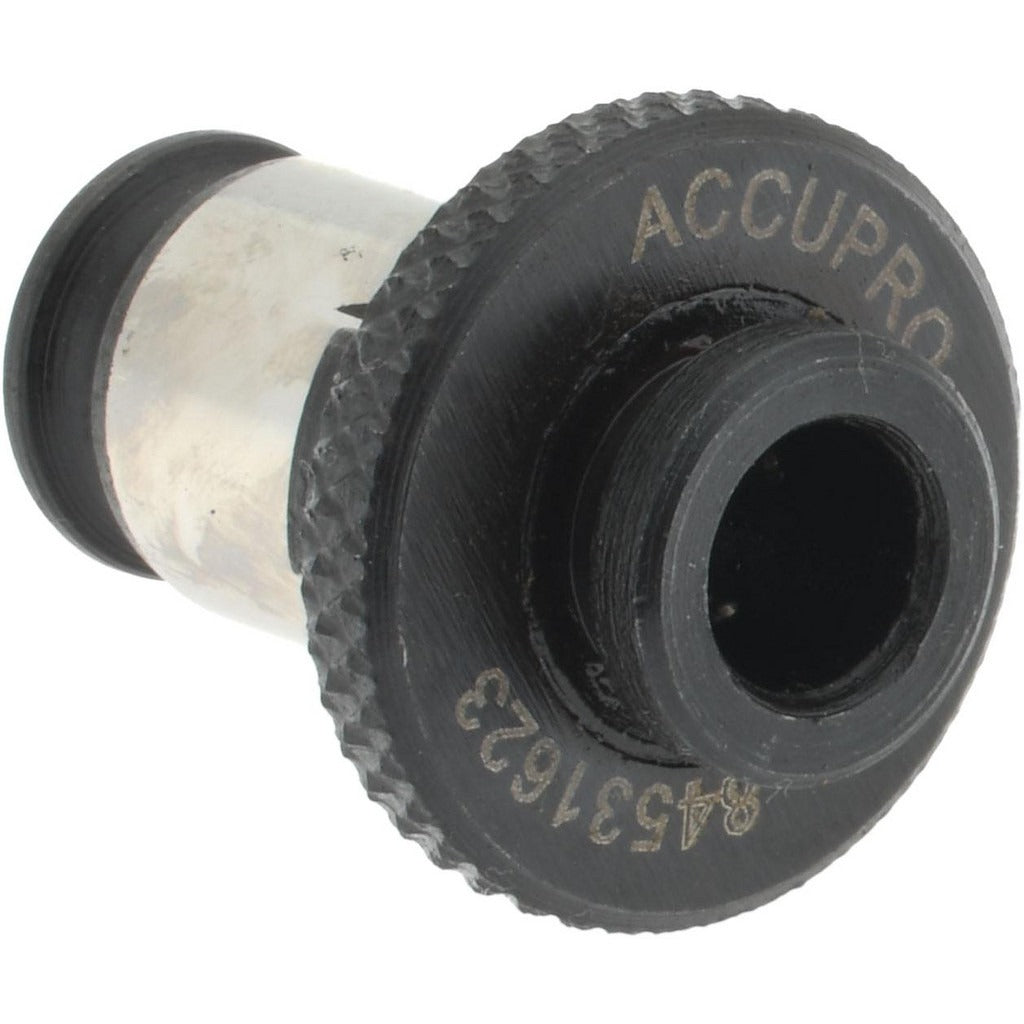

The ACCUPRO QA-0 M10 is a tapping adapter designed to connect M10 taps to quick-change tapping chucks and holders in machine tool setups. It features a 7 mm tap shank diameter and a 5.5 mm tap square size, providing a secure, positive drive during tapping operations. Built to DIN 376 standards, this adapter ensures consistent thread quality and repeatable tap alignment. Machinists and toolroom technicians use it in CNC machining centers, drill presses, and manual tapping machines where standardized quick-change tooling is required. The adapter is part of the Series WE 0 tooling family.

This adapter suits production and job-shop environments where M10 threads are tapped frequently and tool changes must be fast and accurate. It is used with rigid or floating quick-change tapping systems that accept Series WE 0 adapters. Typical applications include tapping steel, aluminum, and other machinable metals in general manufacturing, automotive, and precision fabrication shops. The adapter is sold individually and is appropriate wherever a DIN 376-compliant M10 tap holder is specified.

Key Features

• Accepts M10 taps with a 7 mm shank diameter and 5.5 mm tap square
• Quick-change interface for fast, repeatable tap swaps without additional tools
• DIN 376 standard compliance for consistent fit across compatible tooling systems
• Overall length of 26.5 mm (approximately 1.043 inches) with a 7 mm projection
• 13 mm outside shank diameter and 22 mm flange diameter for stable chuck engagement
• No coolant-through design — suitable for external coolant or dry tapping setups

Compatibility

Designed for use with Series WE 0 quick-change tapping chucks and holders that accept DIN 376-compliant tap adapters for M10 tap size.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Ensure the tapping chuck and machine spindle are fully stopped and locked out before inserting or removing the adapter. Verify that the tap square seats fully and squarely in the adapter before beginning the tapping cycle. Follow the machine tool manufacturer guidelines and applicable shop safety procedures for tapping operations.
