ACCUPRO Accupro NP01650400MSC Drill Chuck 1/8 to 5/8 inch Capacity (CAT50) NP01650400MSC
ACCUPRO Accupro NP01650400MSC Drill Chuck 1/8 to 5/8 inch Capacity (CAT50) NP01650400MSC

Accupro NP01650400MSC Drill Chuck 1/8 to 5/8 inch Capacity (CAT50) NP01650400MSC

Brand: ACCUPRO
SKU: NP01650400MSC
Availability: In Stock

Ships same day if ordered by 12 pm
$761.17
$761.17
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

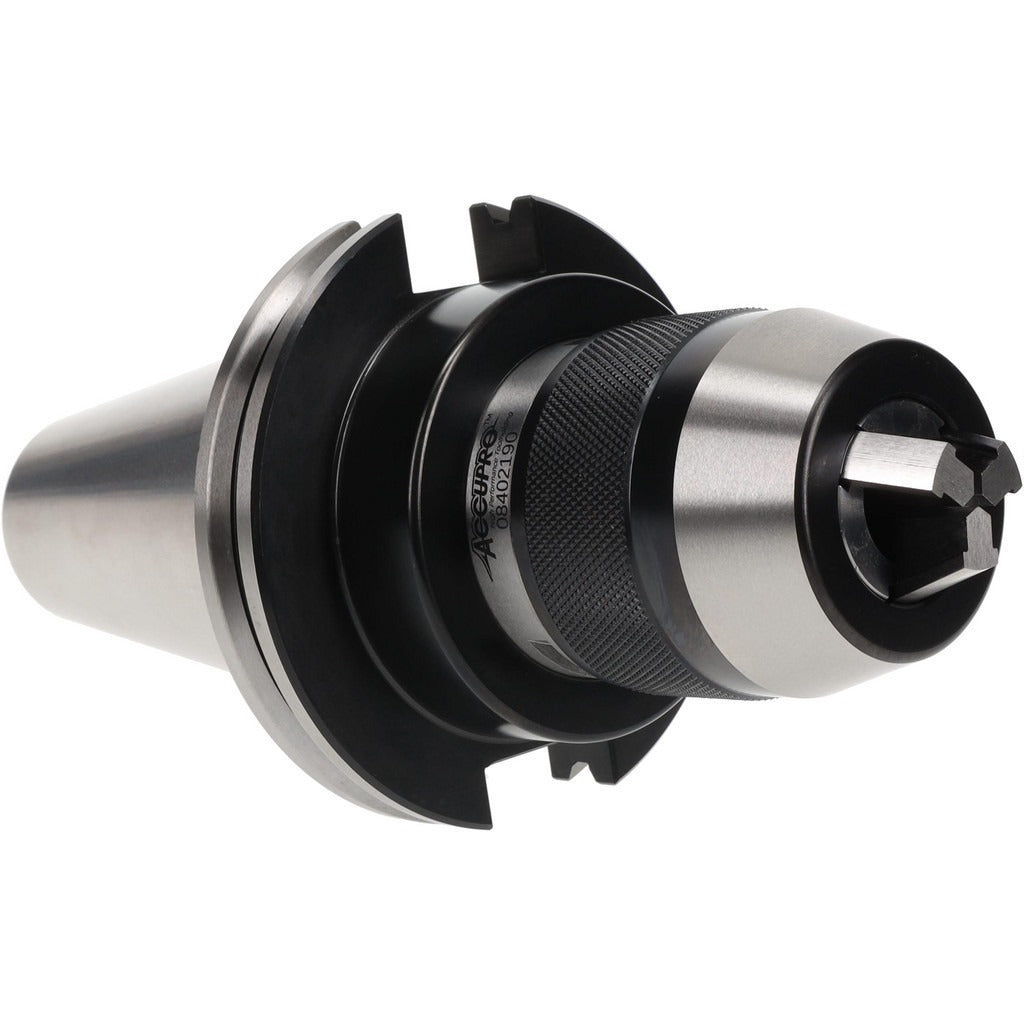

The Accupro NP01650400MSC is a keyless drill chuck for CAT50 integral shank mount that accepts 1/8 to 5/8 inch (0.125 to 0.625 decimal inch) drill sizes. It features a taper shank, ball bearing construction, and a 55.00 mm sleeve diameter with an open length of 94.00 mm and closed length of 105.00 mm. Total indicator runout (TIR) is 0.001600 inch. The chuck is steel and includes a spanner wrench.

  • Capacity: 1/8 to 5/8 inch (0.125 to 0.625 decimal inch); TIR 0.001600 inch
  • Integral CAT50 taper shank, keyless operation, ball bearing construction
  • Sleeve diameter 55.00 mm; open length 94.00 mm; closed length 105.00 mm; includes spanner wrench

Product Highlights

Keyless CAT50 integral shank drill chuck, 1/8–5/8 inch capacity, steel body with 0.001600 inch TIR

Product Information

Standard Information

  • Brand: ACCUPRO
  • Manufacturer Part Number: NP01650400MSC
  • Country of Origin: Spain
Technical Specifications
Brand
Accupro
Manufacturer Part Number
NP01650400MSC
Mount Type
Integral Shank
Mounting Size
CAT50
Chuck Capacity (Inch)
1/8 to 5/8
Chuck Capacity (Decimal Inch)
0.125 to 0.625
Minimum Drill Chuck Capacity (mm)
3.175
Maximum Drill Chuck Capacity (mm)
15.875
Key Type
Keyless
Shank Type
Taper
Bearing Type
Ball
Chuck Material
Steel
Sleeve Diameter (mm)
55.00
Open Length (mm)
94.00
Closed Length (mm)
105.00
TIR (Decimal Inch)
0.001600
Includes
Spanner Wrench
Dimensions (H x W x L in.)
7.87 x 3.66 x 3.66
UNSPSC Code
27112800
Country of Origin
Spain
