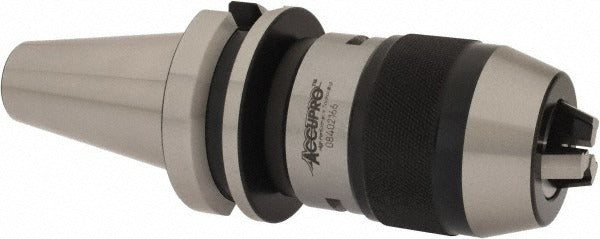

Accupro NP01640200MSC BT40 Keyless Drill Chuck 1/8 to 5/8 in

Product Description

The ACCUPRO NP01640200MSC is a keyless drill chuck designed for use on BT40 taper shank tooling systems in CNC machining centers and milling machines. It accepts drill shanks from 1/8 inch to 5/8 inch (0.6250 inch maximum decimal), covering a wide range of twist drills, end mills, and similar round-shank cutting tools. The chuck uses an integral shank mount for direct BT40 spindle connection, eliminating the need for a separate arbor. A ball bearing mechanism supports smooth jaw actuation, and the 55 mm sleeve diameter provides a firm grip surface. Total indicator runout (TIR) is rated at 0.0016 inch, making it suitable for precision drilling operations. A spanner wrench is included. Installed by CNC machinists and tool-room technicians.

This chuck is intended for use in vertical and horizontal machining centers equipped with BT40 spindles. It is well-suited to production drilling, reaming, and light boring operations in job shops, manufacturing facilities, and tool rooms. The keyless design allows quick tool changes without a separate chuck key, reducing downtime during high-rotation-rate or high-volume drilling cycles. With a closed length of approximately 116 mm and an open length of approximately 105 mm, the chuck fits standard BT40 tooling envelopes without clearance concerns in most machining setups.

Key Features

• Keyless operation for fast, tool-free bit changes at the spindle
• BT40 integral shank mount — no separate arbor required
• Ball bearing chuck mechanism for smooth, consistent jaw engagement
• 0.0016 inch TIR for precision drilling accuracy
• 55 mm sleeve diameter for positive hand grip during tool changes
• Includes spanner wrench for jaw adjustment and chuck maintenance

Compatibility

Designed for use with BT40 taper shank spindles on CNC machining centers accepting round-shank cutting tools from 1/8 inch to 5/8 inch diameter.

Installation Notes

Installation should be performed by a qualified CNC machinist or tool-room technician. Power down and lock out the machining center spindle drive before mounting or removing the chuck from the spindle. Use the appropriate BT40 pull stud and retention knob torqued per the machine tool manufacturer specifications. Verify TIR with a dial indicator after seating to confirm runout is within acceptable limits for the application.
