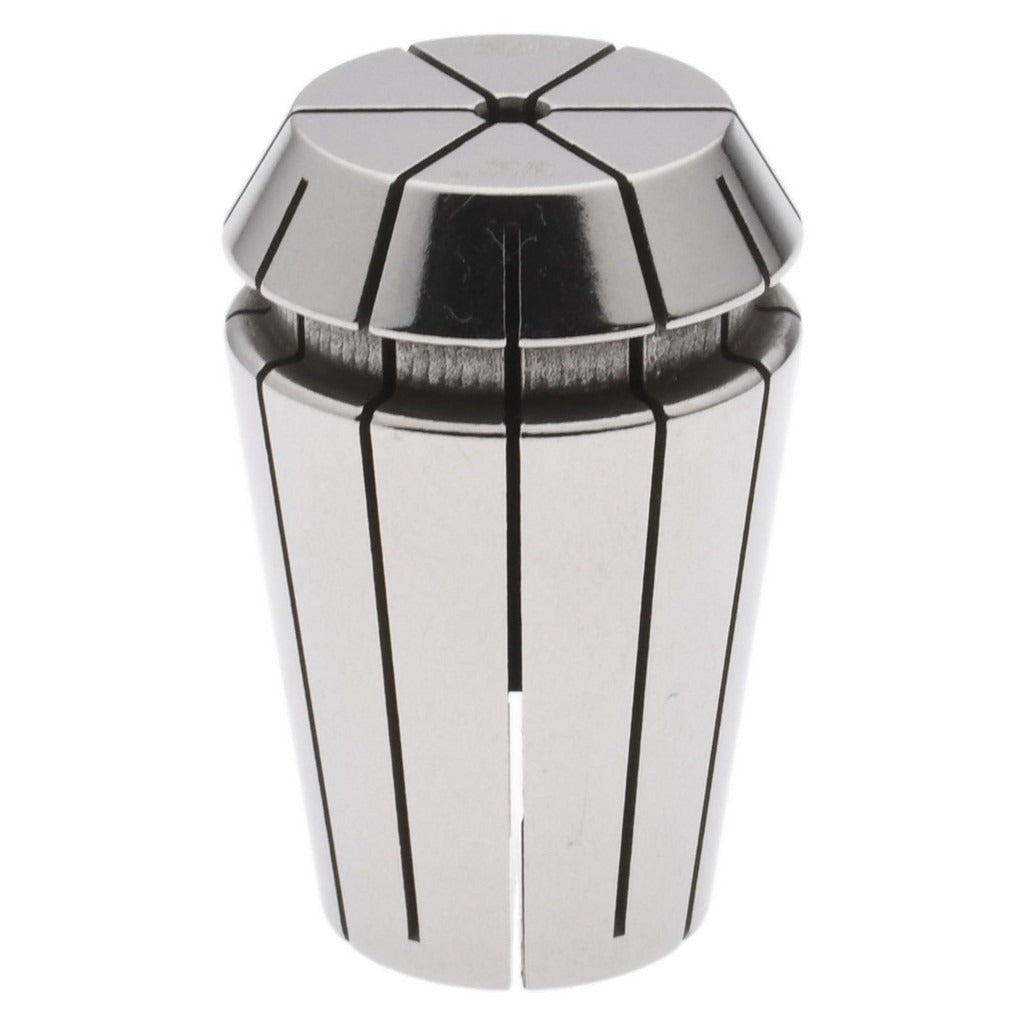

Accupro ER20HP 02.38 ER20 Collet 3/32 Inch

Product Description

The ACCUPRO ER20HP 02.38 is a precision ER20-series collet designed for use in CNC machining centers, milling machines, and tool holders that accept the ER20 collet standard. This collet grips 3/32-inch shank tooling and delivers a total indicated runout (TIR) of 0.0002 inches (0.005 mm), making it suitable for applications where tool concentricity directly affects surface finish and dimensional accuracy. The overall length is 31.5 mm. It is installed by machinists and toolroom technicians as part of a collet chuck assembly.

This collet is used in machine shops running precision milling, drilling, reaming, or light tapping operations with 3/32-inch shank tools. The ER20 collet system is a widely adopted standard in both manual and CNC setups across light industrial and production machining environments. Each package contains one collet.

Key Features

• ER20 collet series — fits standard ER20 collet chucks and tool holders
• 3/32-inch bore size for direct gripping of 3/32-inch shank tooling
• TIR of 0.0002 inches (0.005 mm) for high-precision tool concentricity
• Overall length of 31.5 mm for correct seating in ER20 nuts and chucks
• Sold individually (quantity of one per package)

Compatibility

Designed as an OEM-style replacement collet for use in any tool holder or collet chuck built to the ER20 collet standard.

Installation Notes

Installation is performed by a machinist or toolroom technician. Power down and lock out the spindle before removing or installing collets. Seat the collet fully into the ER20 collet nut before threading the nut onto the chuck body — never tighten the nut without the collet properly engaged. Inspect the collet bore and chuck taper for chips or contamination before assembly to protect TIR performance.
