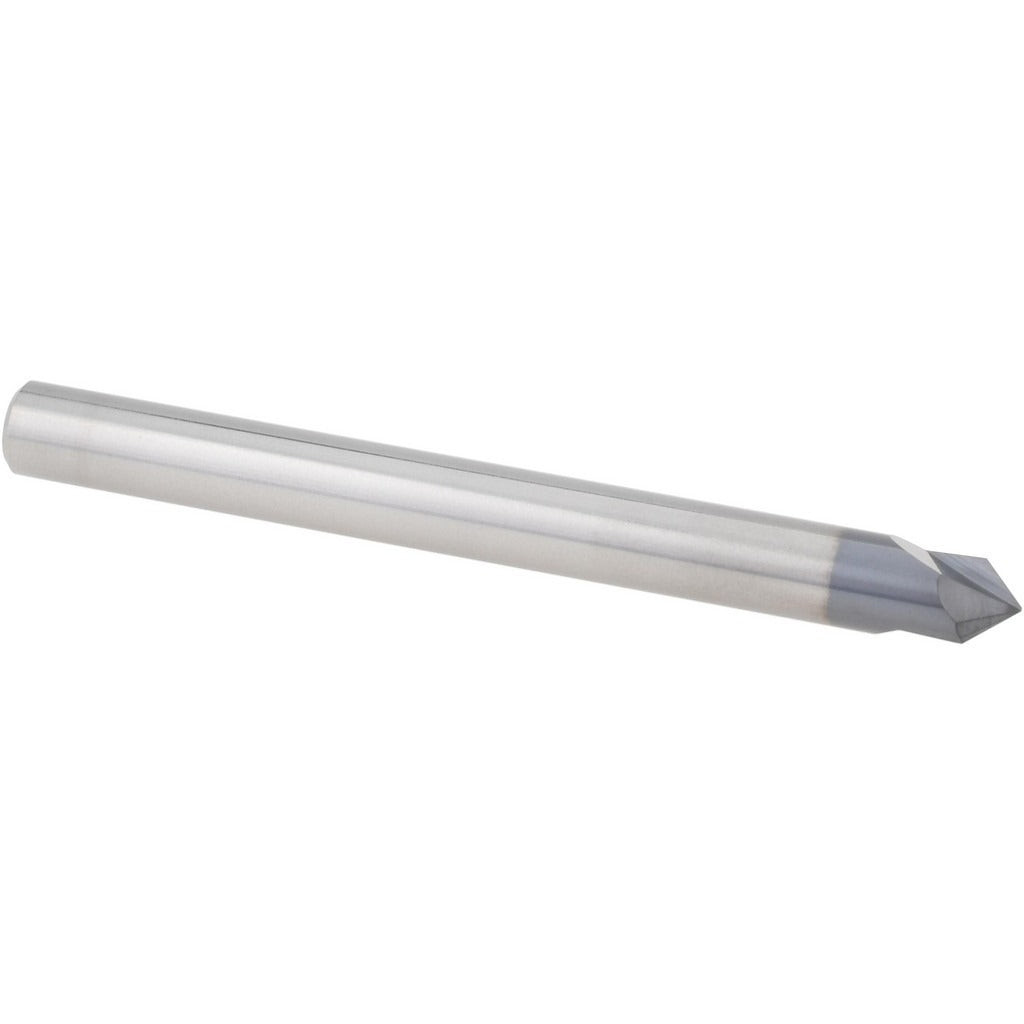

Accupro EM99943845 Chamfer Mill 3/16 in 2 Flute Carbide

Product Description

The ACCUPRO EM99943845 is a solid carbide chamfer mill designed for producing chamfered edges, deburring, and countersinking operations on a wide range of workpiece materials. With a 3/16 inch cutter head diameter and a 2-flute configuration, this tool delivers clean, consistent cuts in a compact form factor. The AlTiN (Aluminum Titanium Nitride) coating improves heat resistance and extends tool life during dry or semi-dry cutting conditions. At 2 inches overall length with a 3/16 inch shank diameter, it is suited for use in CNC machining centers, manual mills, and drill presses. Machinists and tooling technicians rely on this type of end mill for precision edge preparation and profile work.

This chamfer mill is intended for use in metalworking applications where precise chamfer angles and clean edge breaks are required. The single-end design and right-hand cutting direction make it compatible with standard right-hand spindle machines. Typical applications include chamfering drilled holes, preparing weld joints, and deburring part edges in production or job-shop environments. It is well suited to ferrous and non-ferrous materials where AlTiN coatings perform effectively at elevated cutting speeds.

Key Features

• Solid carbide construction for rigidity and wear resistance
• AlTiN coating for improved heat resistance and extended tool life
• 3/16 inch cutter head diameter with 3/16 inch shank for direct chuck mounting
• 2-flute geometry for efficient chip evacuation in chamfering operations
• Right-hand cutting direction compatible with standard spindle machines
• 0.0800 inch length of cut suitable for precise edge preparation

Compatibility

Designed as a direct-fit chamfer mill for use in CNC machining centers, manual vertical mills, and drill presses equipped with standard collet or end mill holders accepting a 3/16 inch shank.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Ensure the spindle is fully stopped and the machine is powered down before changing or seating the tool. Secure the 3/16 inch shank in a properly sized collet or end mill holder and confirm runout is within acceptable tolerance before beginning a cut. Verify spindle speed and feed rate are appropriate for the workpiece material and tool diameter before operation.
