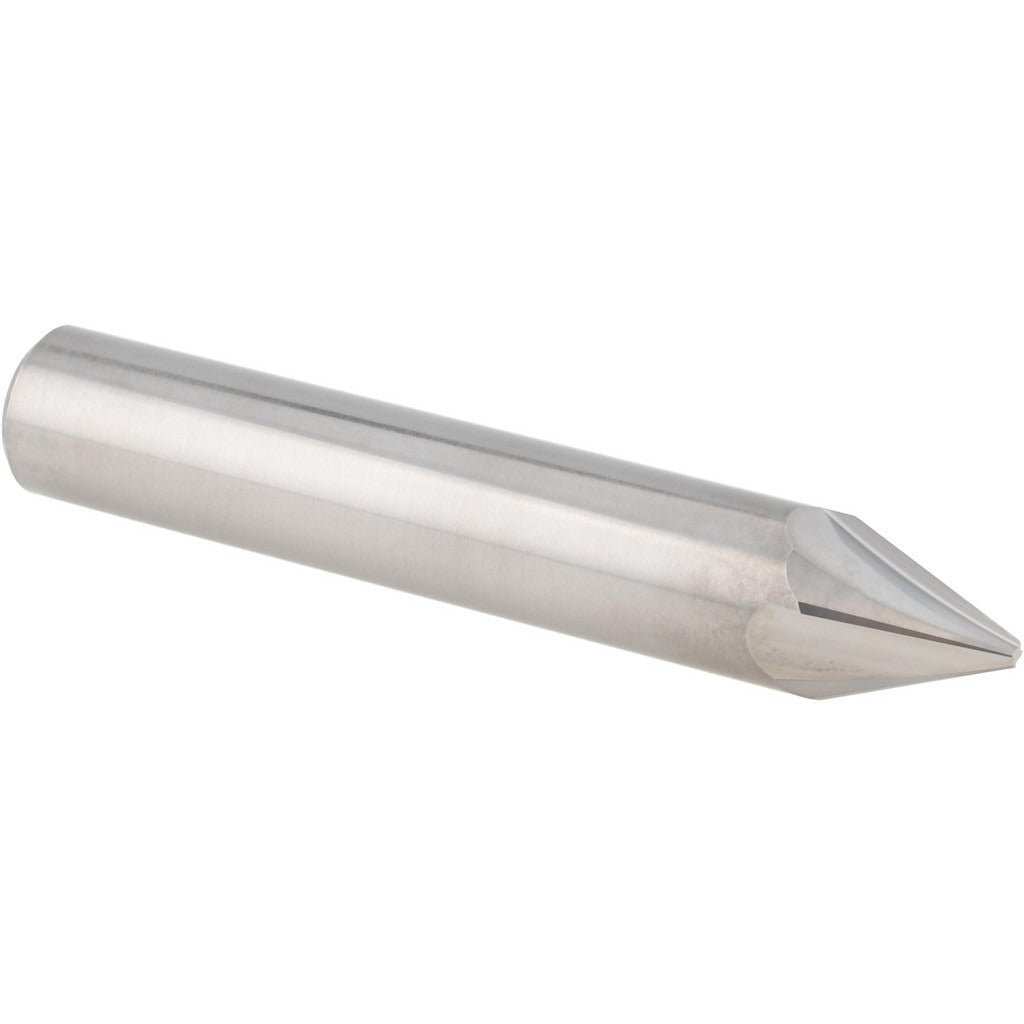

Accupro E599943867 Chamfer Mill 1/2 in 4 Flute Carbide

Product Description

The ACCUPRO E599943867 is a solid carbide chamfer mill designed for precision chamfering, deburring, and edge-breaking operations on a wide range of materials. With a 1/2 inch cutter head diameter and 4 flutes, this single-end tool delivers clean, consistent cuts in right-hand rotation. The bright, uncoated finish makes it well-suited for use with non-ferrous metals and other materials where coating-related adhesion is not a concern. Overall length is 3 inches, and the tool weighs approximately 0.13 pounds. Machinists and toolroom professionals install this mill in CNC machining centers and manual mills where repeatable chamfer geometry is required.

This chamfer mill is appropriate for production and job-shop applications where edge preparation and chamfering are performed on ferrous and non-ferrous workpieces. The 1/2 inch shank diameter fits standard collets and end mill holders common to vertical machining centers. The right-hand cutting direction and 4-flute geometry support smooth chip evacuation and consistent surface finish on chamfered edges. Coolant-through capability is not present, so flood or mist cooling applied externally is the standard approach for heat management during cuts.

Key Features

• Solid carbide construction for rigidity and wear resistance during chamfering operations
• 4-flute design supports smooth chip flow and consistent edge finish
• Bright uncoated finish suitable for non-ferrous and general-purpose applications
• Right-hand cutting direction compatible with standard spindle rotation
• 0.513 inch length of cut provides adequate engagement for typical chamfer depths
• Single-end configuration with 1/2 inch shank for broad toolholder compatibility

Compatibility

Designed as an OEM-style replacement or standard production chamfer mill fitting 1/2 inch collets and end mill holders on conventional and CNC milling machines.

Installation Notes

Installation should be performed by a qualified machinist following shop safety procedures. Power down and lock out the spindle before loading or removing the tool from the holder. Ensure the shank is clean and fully seated in the collet or end mill holder before torquing the drawbar or collet nut to the toolholder specification. Coolant-through is not available on this tool, so apply external flood or mist coolant as needed to manage heat during operation.
