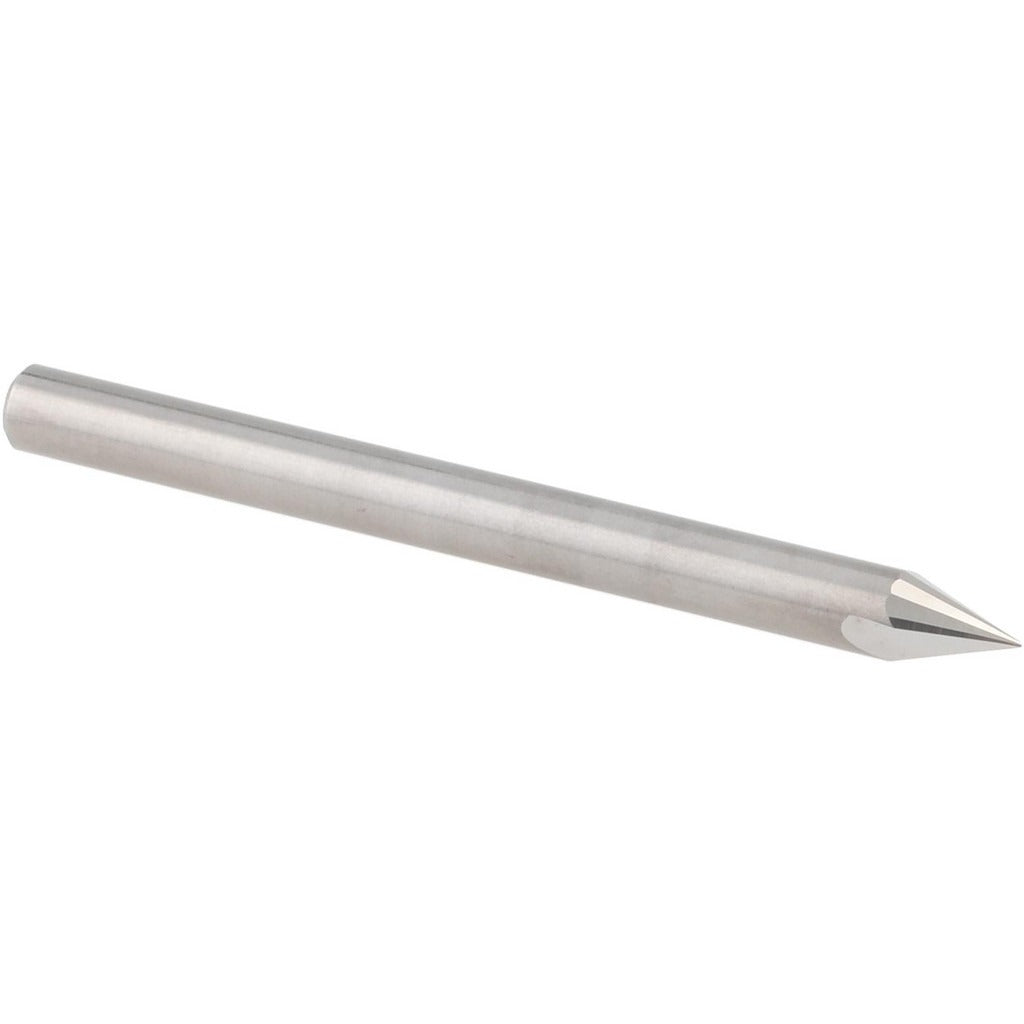

Accupro E599943863 Chamfer Mill 1/8 in 2 Flute Carbide

Product Description

The ACCUPRO E599943863 is a solid carbide chamfer mill designed for chamfering, deburring, and edge-breaking operations on metal and composite workpieces. With a 1/8 inch cutter head diameter and a 0.1580 inch length of cut, this tool is suited for tight-tolerance work in confined areas. The right-hand cutting direction and two-flute configuration deliver clean, consistent chamfer geometry. At 1.5 inches overall length and 0.13 pounds, it is a compact, lightweight tool intended for use in machining centers, CNC mills, and manual milling machines. Installation and setup are performed by machinists and tooling technicians.

This chamfer mill is applied in precision machining environments where controlled edge preparation is required. The single-end design concentrates cutting action at one end, making it well-suited for spot chamfering, countersink preparation, and deburring on ferrous and non-ferrous materials. The uncoated bright finish is appropriate for general-purpose applications where coating is not required by the material or process specification. A 1/8 inch shank diameter ensures compatibility with standard collet systems and toolholders commonly found in CNC and manual milling setups.

Key Features

• Solid carbide construction provides rigidity and wear resistance for consistent chamfer geometry
• 1/8 inch cutter head diameter suits fine, detailed chamfering in tight workpiece features
• 0.1580 inch length of cut allows controlled edge engagement
• Right-hand cutting direction compatible with standard spindle rotation
• Two-flute design balances chip clearance with surface finish quality
• Uncoated bright finish supports use across a broad range of general-purpose materials

Compatibility

Designed as a standard 1/8 inch shank chamfer mill compatible with collet chucks and toolholders accepting 1/8 inch shank diameters in CNC machining centers and manual milling machines.

Installation Notes

Installation is performed by a qualified machinist or tooling technician. Secure the 1/8 inch shank in a properly sized collet or toolholder and verify runout before engaging the workpiece. Ensure the spindle is fully stopped and the machine is in a safe state before changing or seating the tool. Follow the machine manufacturer and facility safety guidelines for speeds, feeds, and coolant configuration when setting up this tool.
