Accupro E599943860 Chamfer Mill 1/2 in 4 Flute Carbide

Product Description

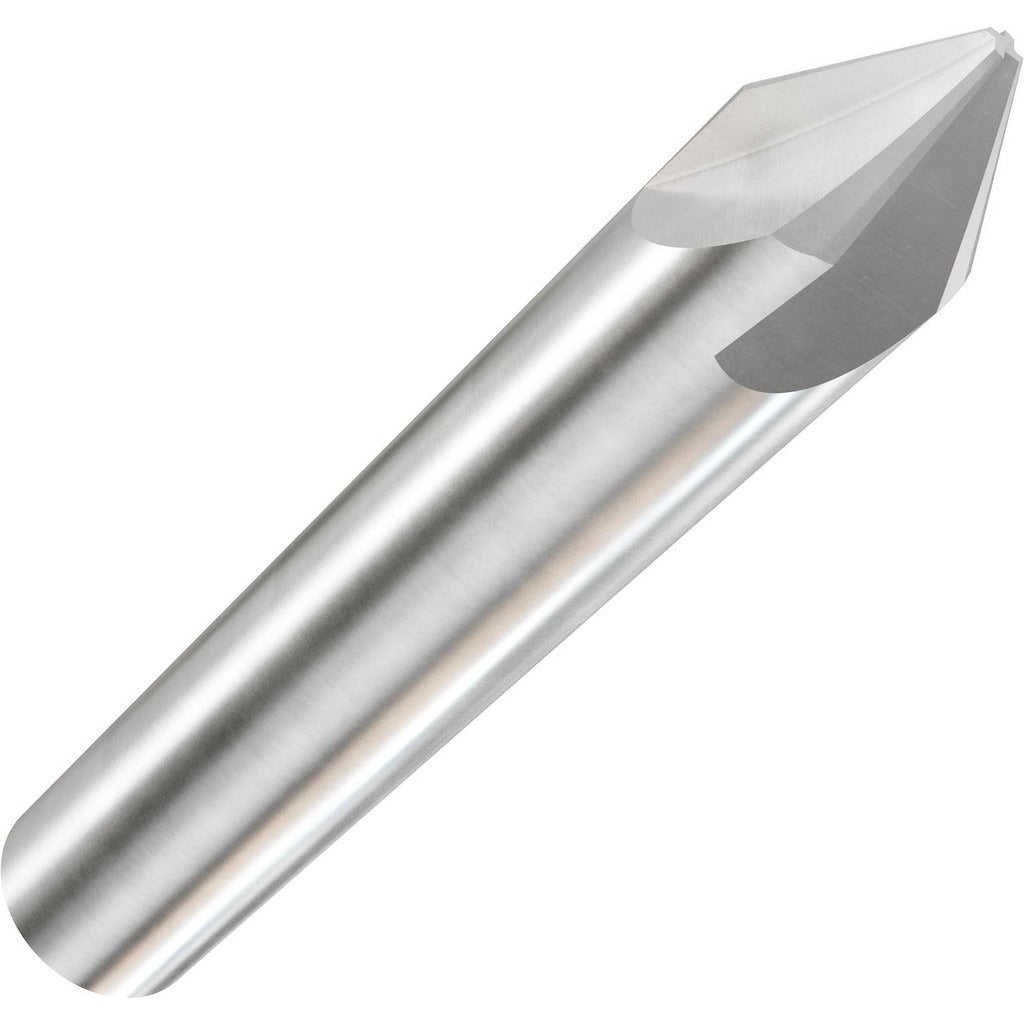

The ACCUPRO E599943860 is a solid carbide chamfer mill designed for deburring, chamfering, and edge-breaking operations on ferrous and non-ferrous materials. The cutter head measures 0.5 inches in diameter with a 0.364-inch length of cut, and the tool runs a right-hand cutting direction with four flutes for efficient chip evacuation. The bright uncoated finish makes it well-suited for applications where coating buildup or heat-sensitive materials are a concern. At 3 inches overall length with a 0.5-inch shank diameter, this single-end tool fits standard collet and end mill holders used in CNC and manual milling setups. Machinists and toolroom operators working in general metalworking, fabrication, and precision machining environments are the primary users of this tool.

This chamfer mill is appropriate for use in both manual milling machines and CNC machining centers requiring a 1/2-inch shank. It handles chamfering, countersinking, and spot-facing tasks across a range of materials including steel, aluminum, and plastics. The single-end configuration is standard for general-purpose chamfering work. It is sold individually and does not require a minimum order beyond one unit.

Key Features

• Solid carbide construction for rigidity and wear resistance in demanding cutting applications
• Four flutes for improved chip flow and surface finish on chamfered edges
• Right-hand cut geometry compatible with standard spindle rotation on most mills
• Bright uncoated finish suitable for non-ferrous metals and heat-sensitive materials
• 0.364-inch length of cut handles typical chamfer and deburring depths
• Single-end design with 1/2-inch shank for compatibility with standard tool holders

Compatibility

Designed as a direct-fit replacement-style chamfer mill for CNC machining centers and manual mills accepting a 1/2-inch shank diameter end mill holder or collet chuck.

Installation Notes

Installation is performed by qualified machinists or toolroom personnel. Power down and lock out the spindle before inserting or removing the tool from the holder. Ensure the collet or end mill holder is clean and free of chips before seating the shank to the recommended engagement depth. Follow shop safety standards and machine manufacturer guidelines for tool runout inspection before beginning the cut.
