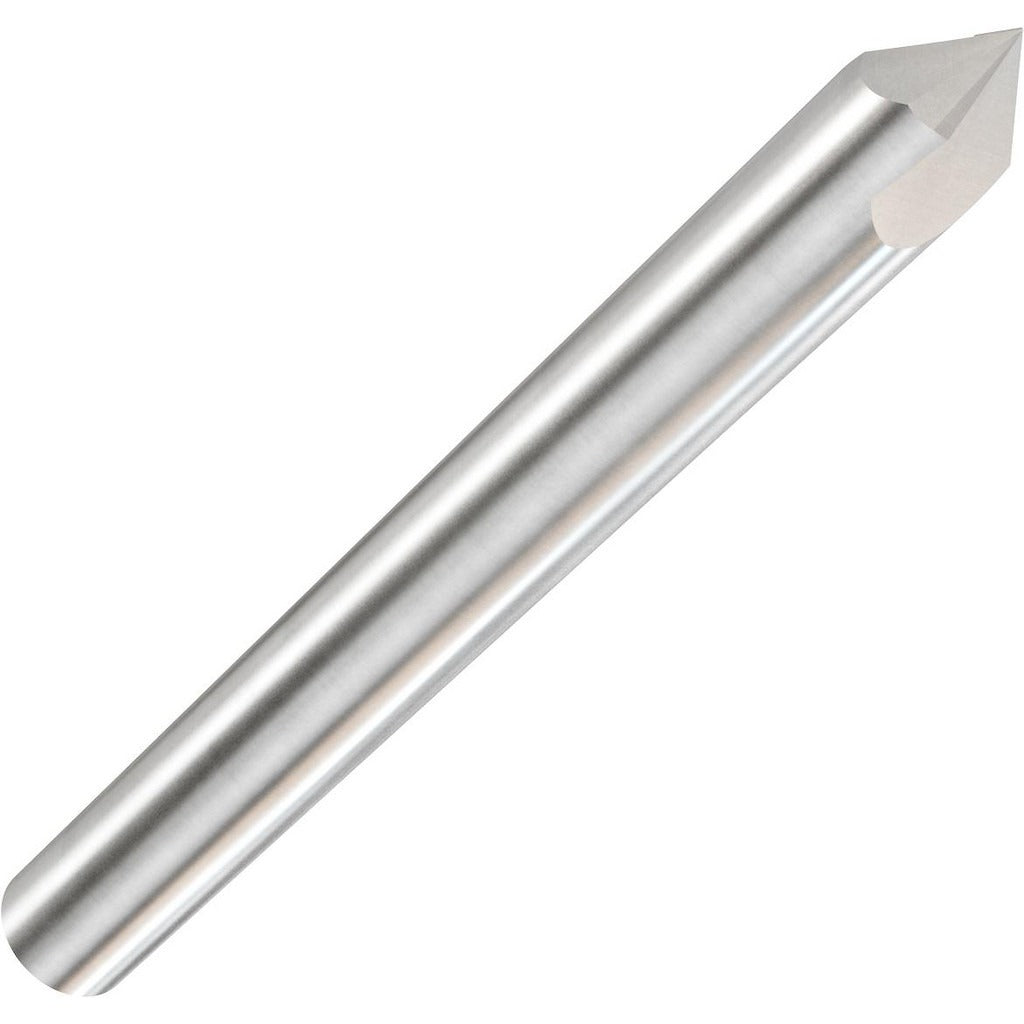

Accupro E599943856 Chamfer Mill 1/2 in 2 Flute Carbide

Product Description

The ACCUPRO E599943856 is a solid carbide chamfer mill designed for deburring, chamfering, and edge-breaking operations on machined workpieces. It features a 1/2 inch cutter head diameter, 2 flutes, and a right-hand cutting direction, making it a standard choice for CNC machining centers and manual milling applications. The bright, uncoated finish suits use on a range of common workpiece materials without the added cost of a specialized coating. With a 3 inch overall length and 1/4 inch length of cut, this tool is well suited for precision chamfer work in tight-tolerance production environments. Machinists and CNC operators install this tool directly in compatible collet or end mill holders.

This chamfer mill is intended for use in metalworking and general machining applications, including job shops, production facilities, and toolrooms. The single-end configuration and 1/2 inch shank diameter make it compatible with standard collet chucks and end mill holders found on most vertical and horizontal machining centers. It is appropriate for chamfering drilled holes, deburring part edges, and creating consistent angular features on ferrous and non-ferrous workpieces. No coolant-through capability means it is used with external coolant or dry, depending on the material and operation.

Key Features

• Solid carbide construction provides rigidity and wear resistance for consistent edge quality
• 1/2 inch cutter head diameter with 1/4 inch length of cut for controlled chamfering depth
• 2-flute geometry balances chip evacuation and cutting edge strength
• Right-hand cutting direction for use in standard CNC and manual milling setups
• Bright, uncoated finish suitable for a broad range of common workpiece materials
• Single-end design with 1/2 inch shank for direct use in standard collet and end mill holders

Compatibility

Designed as an OEM-style replacement or direct-use chamfer mill compatible with standard 1/2 inch collet chucks and end mill holders on CNC machining centers and manual knee mills.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the machine spindle is fully stopped and locked out before installing or removing the tool from the holder. Seat the shank fully in the collet or holder and torque the retention mechanism to the machine or tooling manufacturer's specification. Verify runout with a dial indicator before beginning production cuts.
