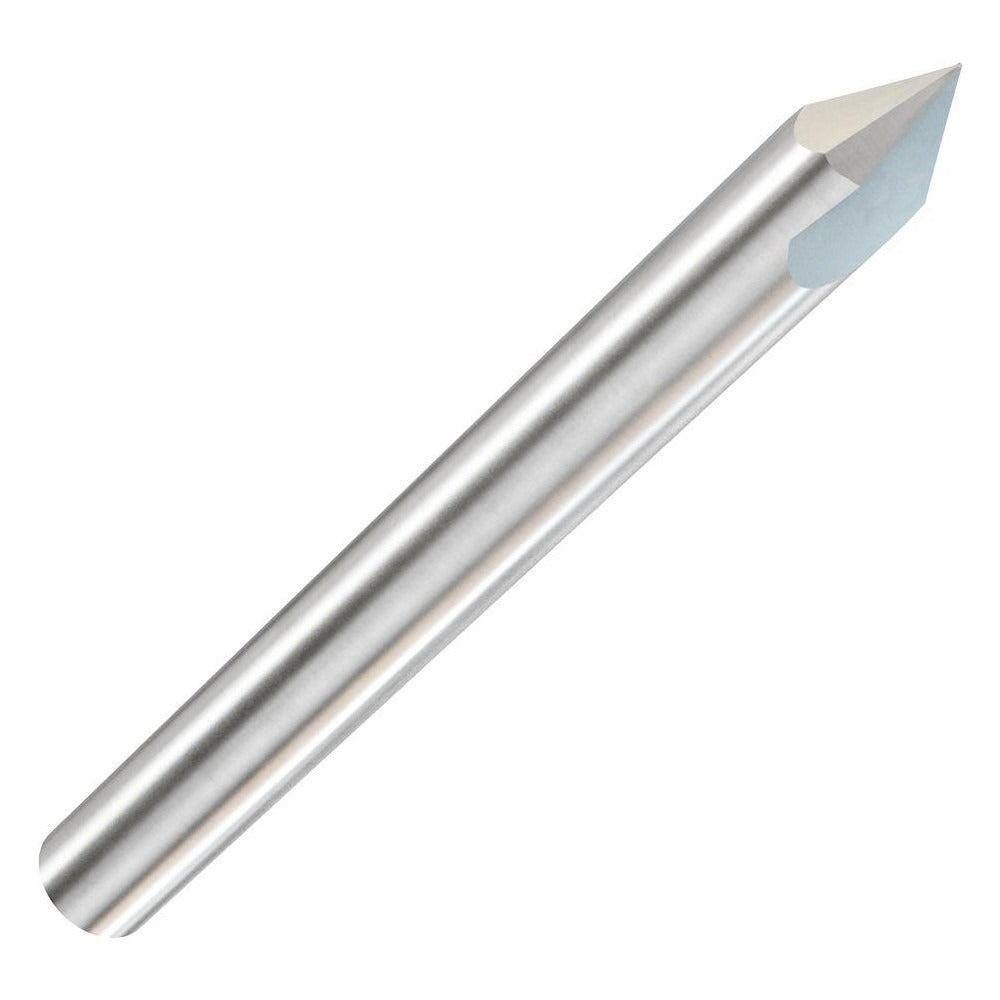

Accupro E599943854 Chamfer Mill 1/4 in 2 Flute Carbide

Product Description

The ACCUPRO E599943854 is a solid carbide chamfer mill designed for deburring, chamfering, and edge-breaking operations on metal workpieces. The cutter head measures 0.25 inches in diameter with a 0.208-inch length of cut. Two right-hand flutes provide efficient chip evacuation on steel, aluminum, and similar materials. The bright uncoated finish suits general-purpose applications where coated tooling is not required. This tool is sized for use in CNC machining centers and manual milling equipment across job shops, maintenance facilities, and production environments.

The E599943854 fits a 0.25-inch shank and mounts directly into standard collet chucks and end mill holders. With a 2.5-inch overall length, it provides adequate reach for most chamfering applications on flat and near-flat workpiece surfaces. The single-end configuration makes this a dedicated chamfering tool suited for high-volume operations where consistent edge geometry is critical. Machinists and CNC operators install this tool as a direct replacement or new addition to chamfering tooling inventories.

Key Features

• Solid carbide construction for rigidity and wear resistance
• 0.25-inch cutter head diameter with 0.208-inch length of cut
• 2 right-hand flutes for efficient chip removal
• Bright uncoated finish for general-purpose compatibility
• Single-end design dedicated to chamfering and deburring
• No coolant-through requirement simplifies setup

Compatibility

Designed as an OEM-style replacement or new-installation chamfer mill for use in standard 0.25-inch collet chucks and end mill holders on CNC machining centers and manual milling machines.

Installation Notes

This tool is installed by machinists or CNC operators. Power down and lock out the spindle before changing tooling. Ensure the shank is fully seated and the collet or holder is torqued according to the machine manufacturer's specification. Verify spindle speed and feed rate settings in the program or manual before starting a cut.
