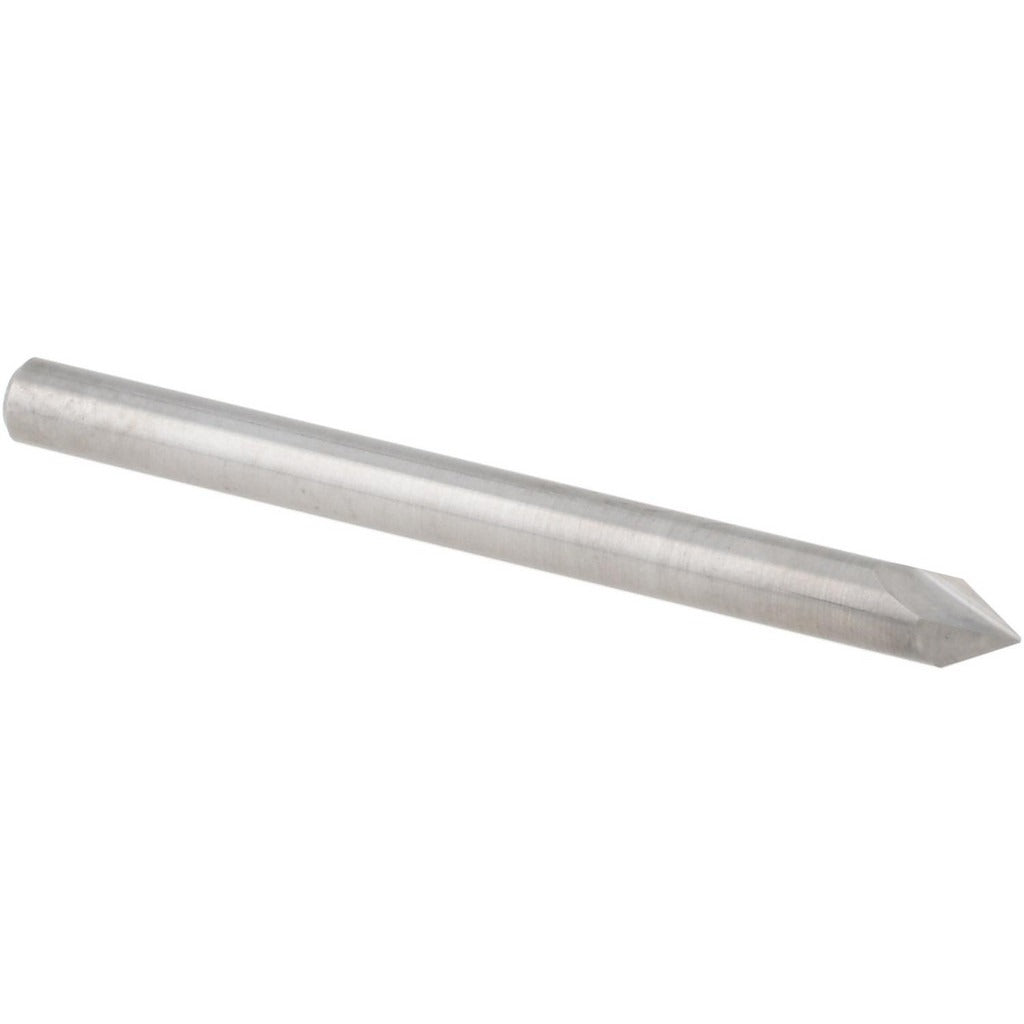

Accupro E599943836 Chamfer Mill 1/8 in 2 Flute Carbide

Product Description

The ACCUPRO E599943836 is a solid carbide chamfer mill designed for deburring, edge chamfering, and countersinking operations on precision machined components. With a 1/8 inch cutter head diameter and 2 flutes, this single-end mill delivers clean, accurate chamfered edges on ferrous and non-ferrous materials. The uncoated bright finish makes it well-suited for applications where coating buildup could affect dimensional accuracy. At 1.5 inches overall length and a matching 1/8 inch shank diameter, it is compact and compatible with standard collet toolholders used in CNC mills and manual machining centers.

This chamfer mill is used in precision machining environments including job shops, production floors, and toolrooms. It is suited for light chamfering passes on aluminum, steel, brass, and similar materials where edge prep and deburring are required before assembly or inspection. The right-hand cutting direction is standard for conventional CNC and manual vertical milling setups. Machinists and CNC operators working with small-bore collet systems will find the 1/8 inch shank directly compatible with common ER and precision collet configurations.

Key Features

• Solid carbide construction for rigidity and wear resistance in precision chamfering
• 1/8 inch cutter head diameter for small-feature edge work and tight-tolerance applications
• 2-flute geometry balances chip evacuation with edge finish quality
• Uncoated bright finish for accurate dimensional performance without coating buildup
• Single-end design with right-hand cutting direction for standard mill setups
• 0.513 inch length of cut provides adequate engagement for typical chamfering depths

Compatibility

Designed as an OEM-style solid carbide chamfer mill compatible with standard 1/8 inch collet toolholders used in CNC machining centers and manual milling machines.

Installation Notes

Installation is performed by qualified machinists or CNC operators. Secure the 1/8 inch shank in a clean, properly sized collet or endmill holder and torque to the toolholder manufacturer specification before operation. Verify spindle direction is set to right-hand rotation before engaging the cutter. Inspect the cutting edges for chips or wear before each use, as solid carbide tooling is brittle and sensitive to side-loading or improper runout.
