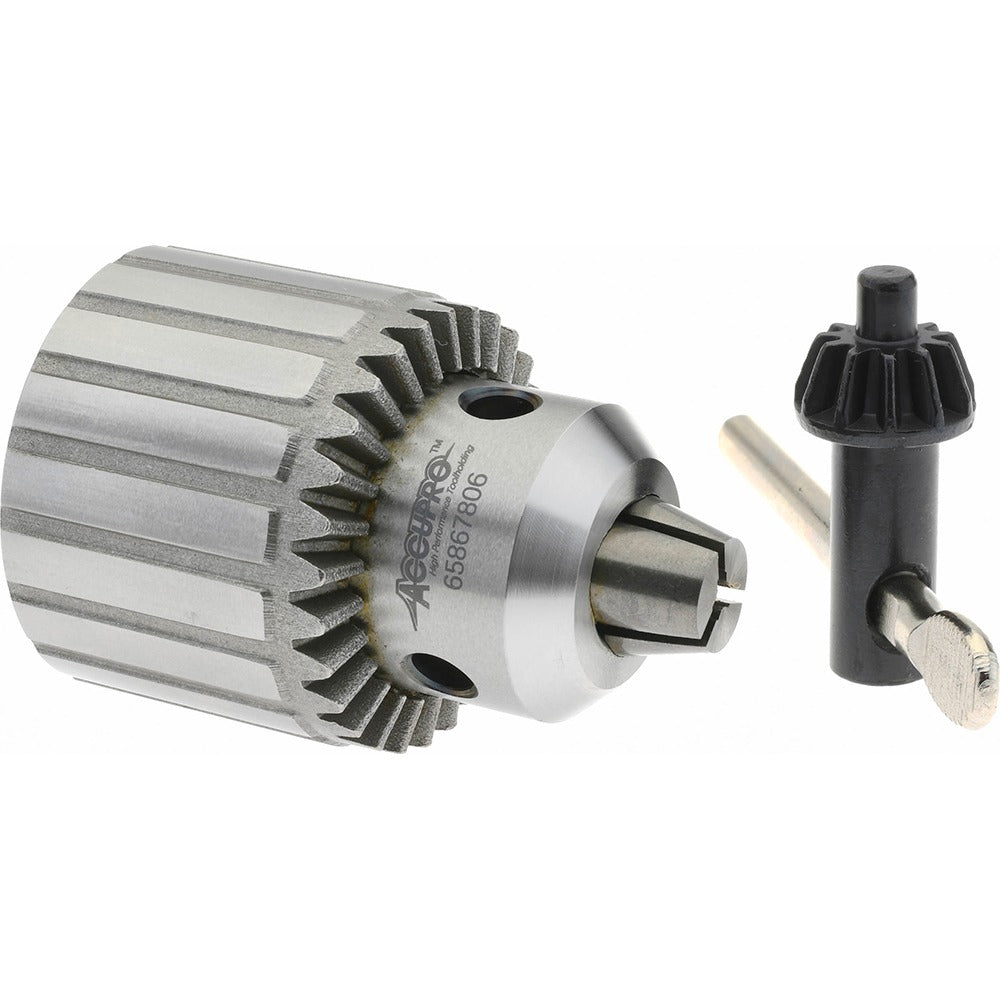

Accupro CY01308000MSC Drill Chuck 1/2 Inch JT6 Keyed

Product Description

The ACCUPRO CY01308000MSC is a keyed drill chuck designed for tapered-mount spindles using a JT6 taper. It accepts drill bits and round-shank tooling from 3/64 inch (0.0591 inch) up to 1/2 inch (0.5000 inch) in diameter, covering the range used in most general-purpose drilling applications on drill presses, lathes, and milling machines. The chuck body is constructed of steel and uses a plain bearing design. The 46 mm sleeve diameter and K2 key provide a secure grip on the tool shank. Machinists, tool-room technicians, and maintenance mechanics are the primary installers of this type of chuck.

This chuck is suited for use on drill presses, bench lathes, and similar machine-tool spindles equipped with a JT6 Jacobs taper mount. It handles both light-duty production drilling and general maintenance drilling tasks in residential shop, commercial, and industrial settings. The keyed design ensures reliable clamping force when drilling ferrous and non-ferrous materials. It is a direct replacement or upgrade option for worn or damaged JT6-mount chucks of equivalent capacity.

Key Features

• Capacity range from 3/64 inch to 1/2 inch accommodates a wide variety of drill bit shank sizes
• JT6 tapered mount for positive, repeatable seating on compatible spindles
• Keyed operation with K2 key for maximum clamping force and reduced slippage
• Steel chuck body for durability in production and maintenance environments
• 46 mm sleeve diameter provides a substantial grip surface for tightening
• Plain bearing design suits general-purpose drilling at standard spindle speeds

Compatibility

Designed for machine-tool spindles with a JT6 Jacobs taper mount. Verify spindle taper designation before installation. No specific model compatibility data was provided in the product input.

Installation Notes

Installation and removal of this chuck should be performed by a qualified machinist or maintenance technician familiar with tapered-mount tooling. Power down and lock out the machine at the main disconnect before mounting or removing the chuck. Use a chuck removal wedge or drift and a soft mallet to seat or break the taper - never use excessive force that could damage the spindle bore. Confirm taper fit and runout with a dial indicator after mounting before returning the machine to service.
