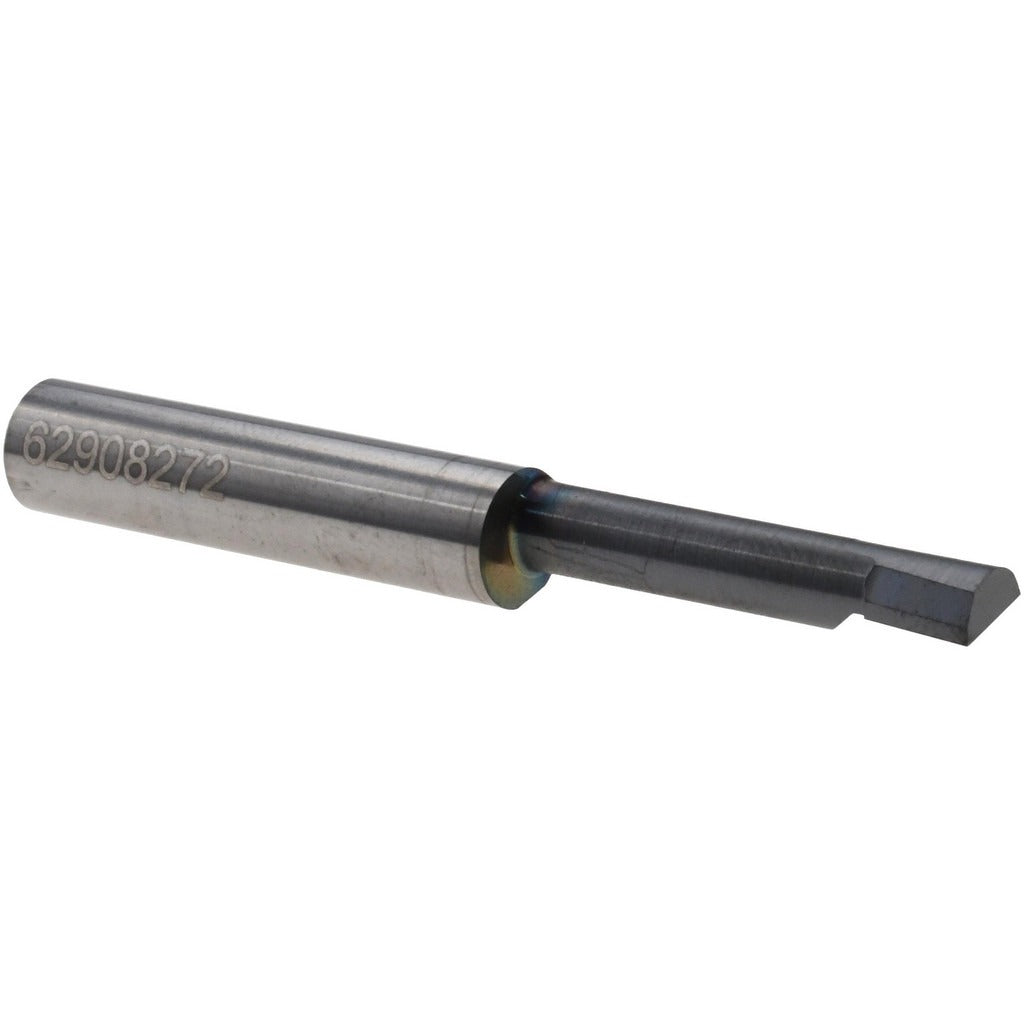

Accupro B2301100A Boring Bar 0.23in Min Bore Submicron Carbide

Product Description

The ACCUPRO B2301100A is a solid carbide boring bar designed for precision internal boring operations on CNC lathes and turning centers. Manufactured from submicron-grade carbide with an AlTiN finish coating, it delivers consistent cutting performance and wear resistance in demanding machining environments. The bar features a right-hand cutting direction, a minimum bore diameter of 0.23 inches, and a maximum bore depth of 1.1 inches. With a 5/16-inch shank diameter and an overall length of 2.5 inches, it fits standard tooling setups used by machinists in production and job shop environments.

This boring bar is suited for tight-tolerance internal diameter work in both ferrous and non-ferrous materials. The submicron carbide substrate provides edge strength for fine finishing passes and light roughing cuts in small-bore applications. The AlTiN coating adds thermal resistance, making it effective in dry or semi-dry cutting conditions. Machinists working on small-diameter bores in precision components will find this bar well-matched to CNC turning applications requiring controlled material removal and repeatable results.

Key Features

• Submicron solid carbide construction for superior hardness and edge retention
• AlTiN coating provides thermal resistance and extended tool life in dry cutting
• Right-hand cut geometry for standard CNC lathe setups
• 0.23-inch minimum bore diameter for small-bore internal machining
• 1.1-inch maximum bore depth supports typical small-part turning applications
• 5/16-inch shank diameter fits common boring bar holders and tooling blocks

Compatibility

Designed as an OEM-style tooling component for use in standard CNC lathe and turning center boring bar holders accepting a 5/16-inch shank diameter.

Installation Notes

Installation is performed by qualified machinists following standard toolroom practices. Power down and lock out the machine spindle before mounting or removing the boring bar. Secure the shank firmly in the tool holder to the holder manufacturer's recommended clamping method to prevent chatter and tool pull-out. Verify bore diameter and depth settings with appropriate gauging before beginning production cuts.
