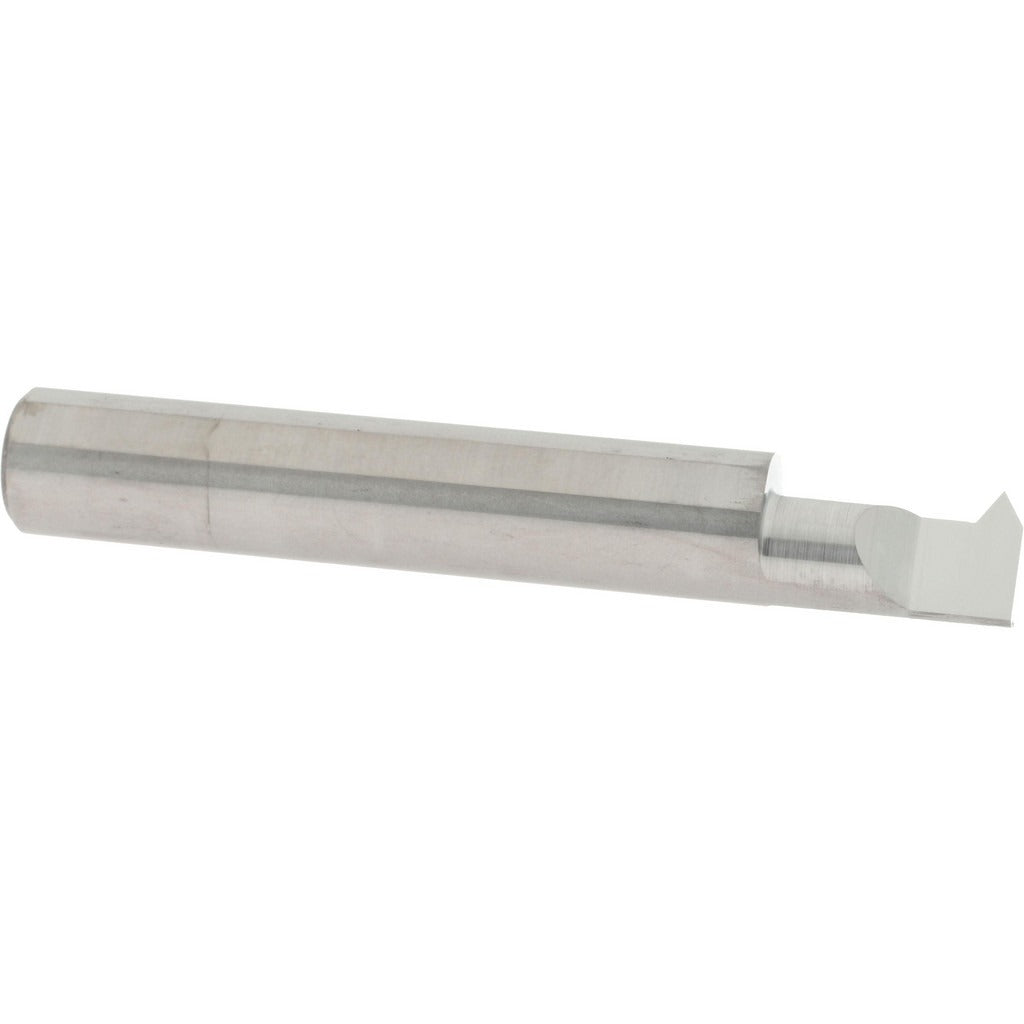

Accupro Acc -T360500 Single Point Threading Tool

Product Description

The ACCUPRO ACC -T360500 is a solid carbide single point threading tool designed for internal thread cutting operations on CNC lathes and turning centers. Built with a 60-degree profile angle and a bright uncoated finish, it handles a thread range of 8 to 32 TPI with a minimum threading diameter of 0.36 inches and a cut depth capacity of 0.50 inches. The solid carbide construction provides the rigidity and wear resistance needed for consistent thread form in precision machining environments. This tool is installed and operated by machinists and CNC programmers working in production or job-shop settings.

This threading tool is suited for internal threading applications in materials where solid carbide tooling delivers clean, accurate thread profiles. With a 3/8-inch shank diameter and an overall length of 2.5 inches, it mounts in standard boring bar-style holders on manual or CNC turning equipment. The 0.08-inch projection from edge keeps the cutting geometry precise at the programmed depth. It is appropriate for both production runs and short-run threading work requiring consistent TPI accuracy across a controlled range.

Key Features

• Solid carbide construction for rigidity and extended tool life in internal threading
• Covers 8 to 32 TPI thread range with a 60-degree profile angle
• 0.50-inch cut depth capacity supports a wide range of thread depths
• 0.36-inch minimum threading diameter suits smaller bore applications
• Bright uncoated finish maintains sharp edge geometry without coating buildup
• 3/8-inch shank diameter fits standard turning and boring bar toolholders

Compatibility

Designed for use in standard 3/8-inch bore toolholders on CNC and manual lathes performing internal single point threading operations.

Installation Notes

Installation and setup should be performed by a qualified machinist or CNC technician. Ensure the machine spindle is fully stopped and the tool turret is in the safe index position before mounting or removing tooling. Verify shank clamp torque per the toolholder manufacturer specifications and confirm tool projection and centerline height before initiating any threading cycle. Follow the machine tool builder guidelines and applicable shop safety procedures when programming thread depth and feed rate.
