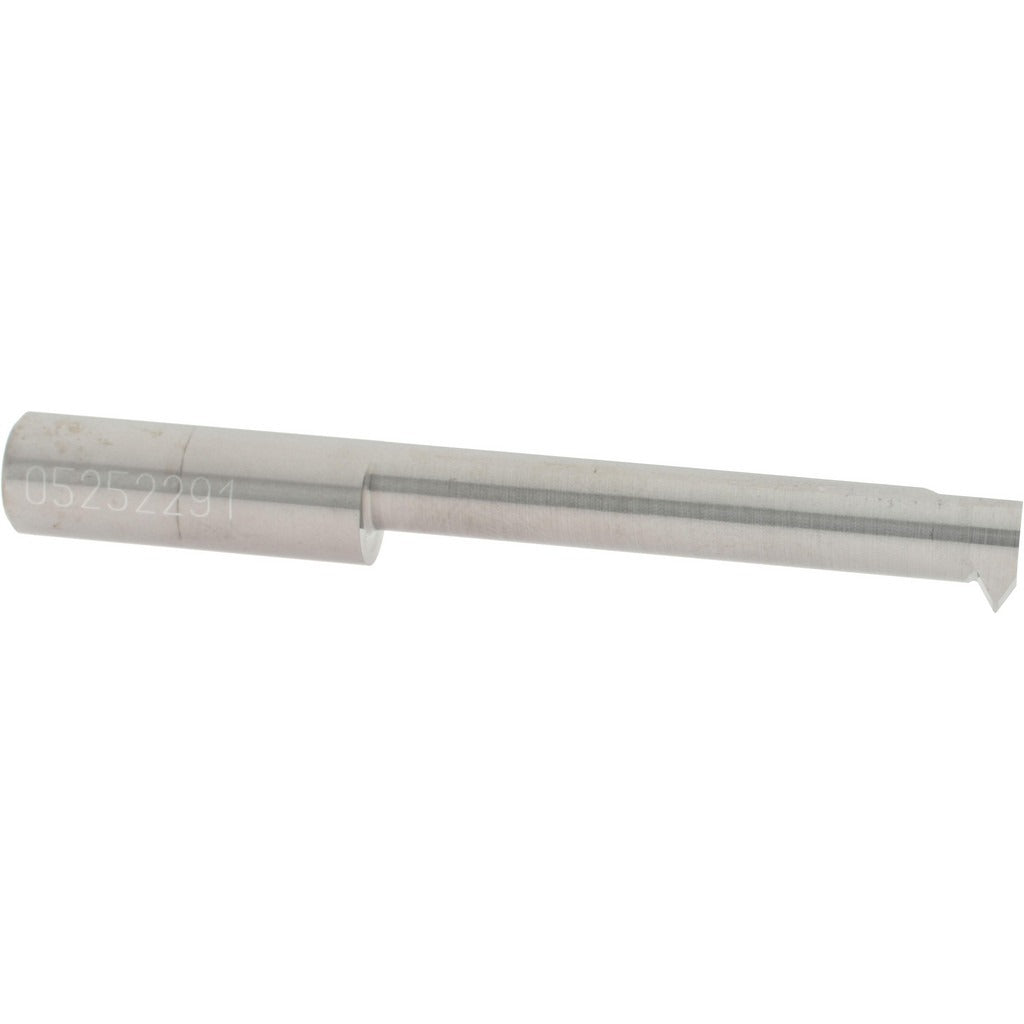

Accupro Acc -T3601800 Single Point Threading Tool

Product Description

The ACCUPRO ACC -T3601800 is a solid carbide single point threading tool designed for internal thread cutting on CNC lathes and turning centers. It handles a minimum thread diameter of 0.36 inches, cuts threads from 8 to 32 TPI, and reaches a cutting depth of 1.8 inches. The 60-degree profile angle makes it suitable for unified and metric-style thread forms. At 0.21875 pounds, the tool is compact and rigid. It ships bright and uncoated, meaning the carbide substrate performs as-ground without a surface treatment. Machinists and CNC operators install this tool in production and job-shop turning applications where consistent thread quality is required.

This threading tool is used in internal threading operations on lathes and turning centers handling small to mid-size bores. The 3/8-inch shank fits standard boring bar-style toolholders. With a 3-inch overall length and 0.08-inch projection from the edge, it suits close-clearance internal threading setups in both ferrous and non-ferrous workpieces. It is appropriate for production runs and one-off threading jobs where a rigid, solid carbide tool is preferred over an insert-style system.

Key Features

• Solid carbide construction for rigidity and long tool life in internal threading
• Cuts 8 to 32 TPI with a 60-degree profile angle for unified thread forms
• Minimum threading diameter of 0.36 inches suits small-bore internal applications
• 1.8-inch cutting depth allows threading in deeper bores
• 3/8-inch shank diameter fits standard lathe and turning center toolholders
• Bright/uncoated finish — no coating buildup that could affect thread profile accuracy

Compatibility

Designed as an OEM-style replacement or direct-use single point threading tool compatible with standard 3/8-inch shank internal threading toolholders on CNC and manual lathes.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Power down and lock out the machine before seating or removing the tool from the toolholder. Verify shank seating depth and projection from edge before initiating a threading pass. Follow the machine manufacturer guidelines and applicable shop safety procedures when setting tool offsets and thread parameters.
