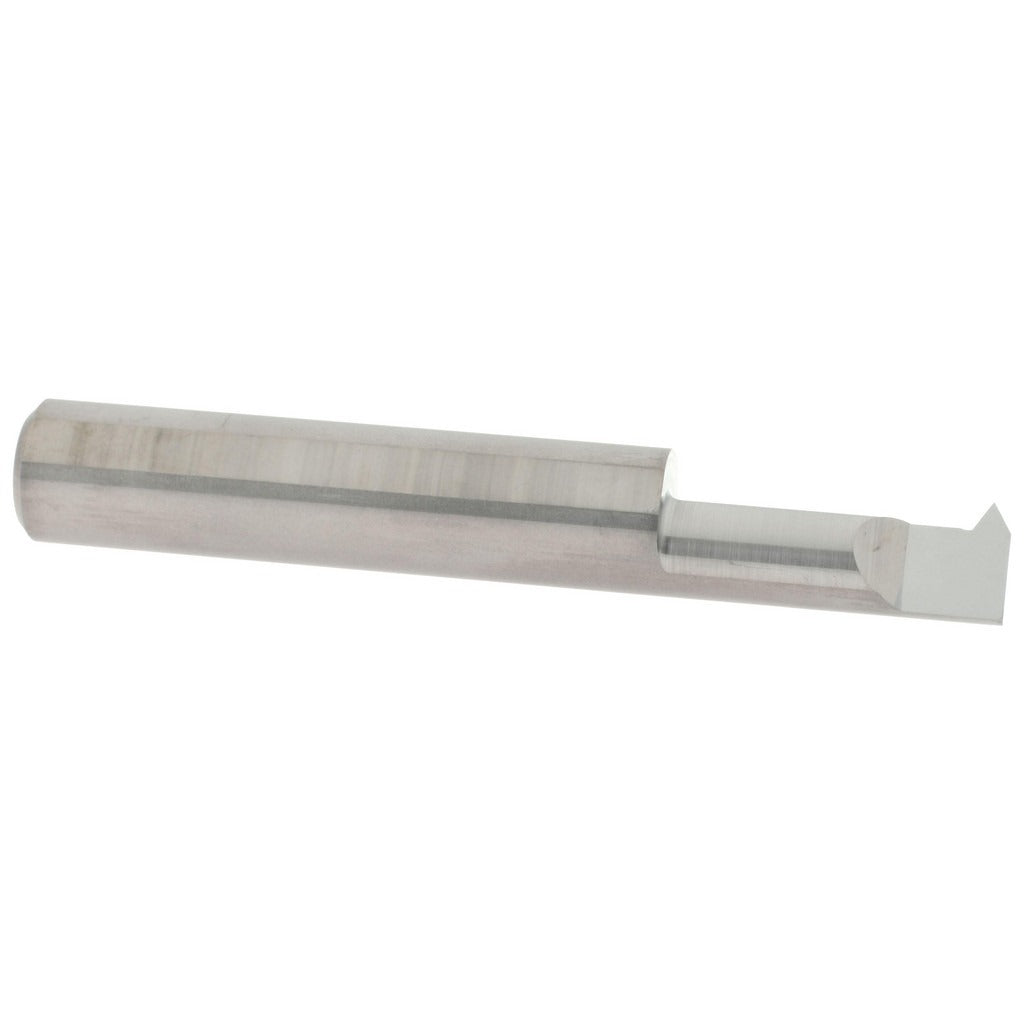

Accupro Acc -T320750 Single Point Threading Tool

Product Description

The ACCUPRO ACC -T320750 is a solid carbide single point threading tool designed for internal thread cutting on CNC lathes and turning centers. It accepts thread pitches from 10 to 32 TPI and handles a minimum threading diameter of 0.32 inches with a cutting depth of 0.75 inches. The 60-degree profile angle makes it suitable for standard unified and metric-form internal threads. At 0.1875 pounds, the tool is compact and fits a 3/8-inch shank with a 2.5-inch overall length. The bright, uncoated finish maintains sharp edge geometry on ferrous and non-ferrous materials. This tool is handled by machinists and CNC operators in production and job-shop environments.

This threading tool is used in internal threading operations where a controlled chip load and precise thread form are required. Typical applications include threading bored holes in workpieces on CNC turning equipment. The 0.075-inch projection from edge allows clearance in shallow or tight bore entries. The solid carbide construction provides rigidity and wear resistance, making it well suited for repetitive production runs in materials such as steel, aluminum, and cast iron.

Key Features

• Solid carbide construction for rigidity and extended tool life in production threading
• 10 to 32 TPI range covers a wide band of standard unified thread pitches
• 60-degree profile angle for standard unified and metric-form thread compatibility
• 0.75-inch cutting depth accommodates deeper internal thread lengths
• Bright/uncoated finish preserves sharp cutting edge geometry
• 3/8-inch shank diameter fits common toolholders used on CNC lathes and turning centers

Compatibility

Designed for use in standard 3/8-inch boring bar or threading toolholders on CNC lathes and turning centers performing internal single point threading operations.

Installation Notes

Installation and use of this threading tool should be performed by qualified machinists or CNC operators. Ensure the machine spindle is fully stopped and the turret is in a safe index position before seating or removing the tool. Secure the shank firmly in the toolholder to the manufacturer-specified clamping torque for that holder. Verify tool projection and runout before initiating a threading cycle to avoid thread form errors or tool breakage.
