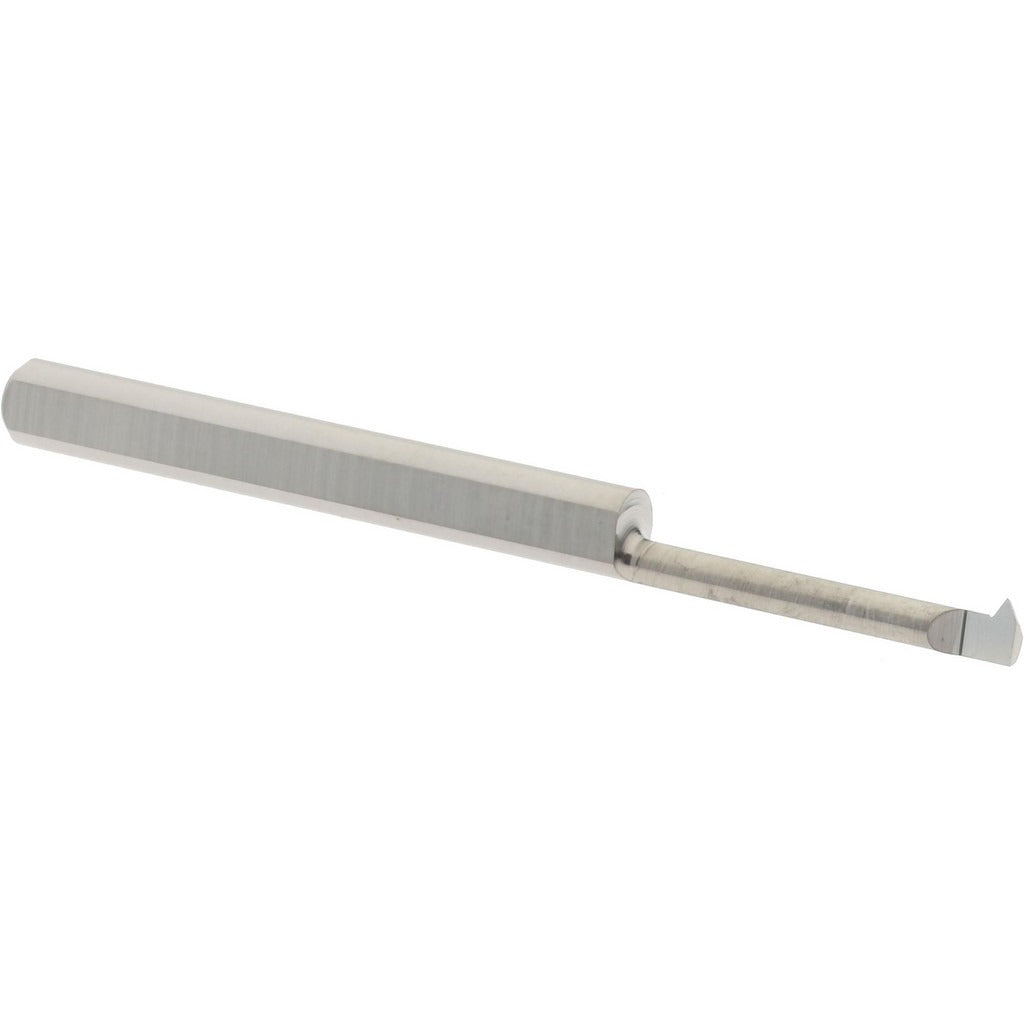

Accupro Acc -T090500 Single Point Threading Tool

Product Description

The ACCUPRO ACC -T090500 is a solid carbide single point threading tool designed for internal thread cutting operations. Built with a 60-degree profile angle and a bright/uncoated finish, it is suited for threading small-diameter bores with precision and consistency. The tool handles a minimum thread diameter of 0.09 inches, cuts threads ranging from 32 to 64 threads per inch (TPI), and provides a cut depth of 0.5 inches. With a 1/8-inch shank and an overall length of 1.5 inches, this compact tool fits small-bore CNC turning and threading setups used by machinists and toolroom operators.

This threading tool is intended for internal threading applications on small-diameter features in ferrous and non-ferrous workpieces. Its solid carbide construction makes it appropriate for high-speed CNC lathe operations where dimensional accuracy and thread form consistency are required. The 0.025-inch projection from edge and the 60-degree profile make it compatible with standard unified and metric thread forms cut at fine pitches. It is a practical choice for production shops, tool and die operations, and precision machining environments handling tight-tolerance internal threads.

Key Features

• Solid carbide construction for rigidity and wear resistance in internal threading
• 60-degree profile angle compatible with standard thread forms
• Threading range of 32 to 64 TPI for fine-pitch internal threads
• Minimum thread diameter of 0.09 inches for small-bore applications
• 0.5-inch cut depth with 0.025-inch projection from edge for controlled engagement
• Bright/uncoated finish suitable for non-ferrous and ferrous materials

Compatibility

Designed as an OEM-style solid carbide single point threading tool for internal thread cutting applications on CNC lathes and turning centers accepting a 1/8-inch shank.

Installation Notes

Installation should be performed by a qualified machinist following the machine tool manufacturer's toolholder specifications. Ensure the machine spindle is fully stopped and the tool turret is locked before seating or removing the tool. Verify proper shank clamp torque per the toolholder manufacturer's guidelines before initiating a threading pass. Confirm thread pitch and profile settings in the CNC program before cutting.
