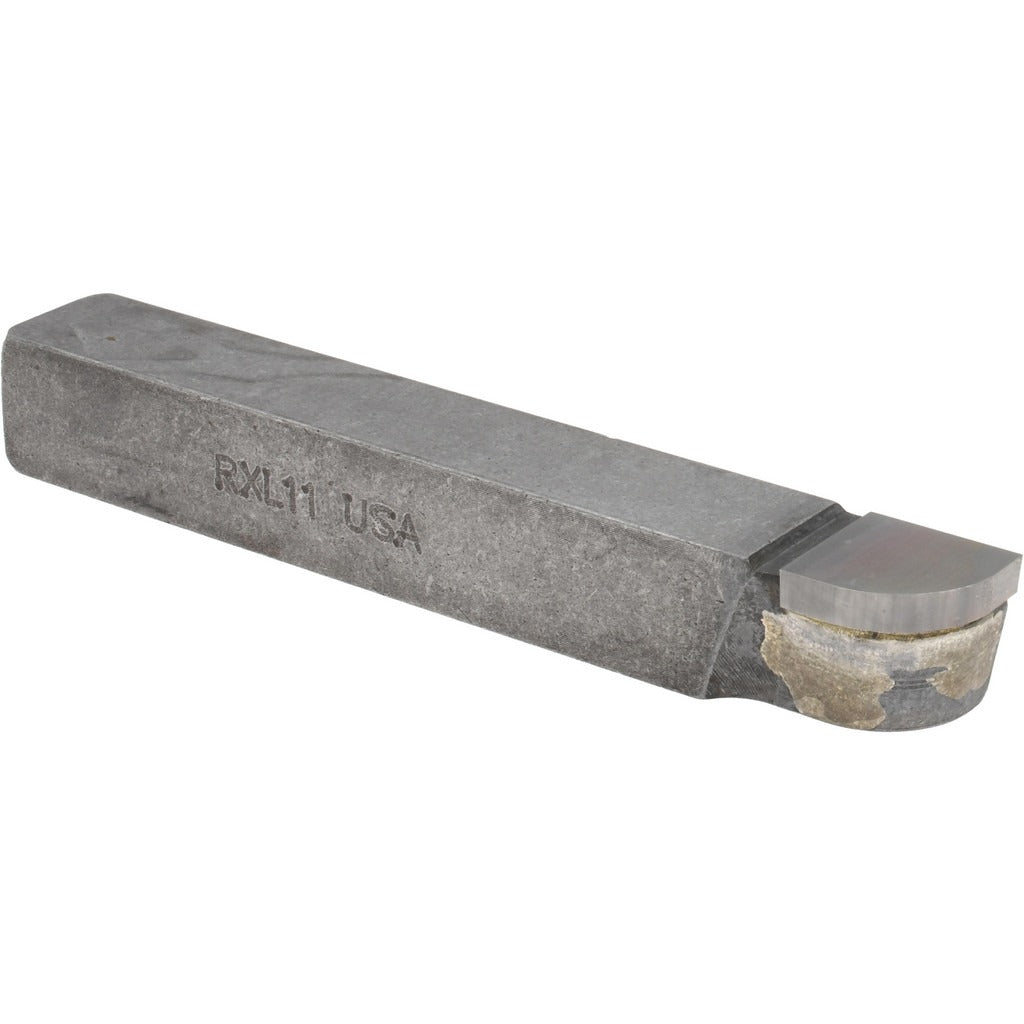

Accupro ACC-RXL11 Radius Cutting Tool Bit 11/32 in Left Hand

Product Description

The ACCUPRO ACC-RXL11 is a left-hand, convex RXL style radius cutting tool bit designed for precision radius turning and form cutting operations on a lathe. The solid carbide tip delivers long tool life and wear resistance in demanding machining applications. At 3.5 inches overall length with an 11/32 inch convex radius, this bit suits contour and radius form work where consistent geometry is required. The 1/2 inch square shank provides rigid clamping in standard tool holders, and the 1/8 inch tip thickness keeps the cutting edge geometry stable under load. Machinists and tool and die professionals rely on this style of bit for radius form turning on steel, cast iron, and non-ferrous alloys.

The ACC-RXL11 is suited for manual and CNC lathe applications requiring a left-hand cutting direction. It fits standard 1/2 inch square shank tool holders and is appropriate for both production and job-shop environments where convex radius forms are machined directly into a workpiece. The RXL style designation identifies the geometry as a right-angle convex form bit in left-hand orientation, making it the correct selection when the feed direction and workpiece orientation call for a left-cutting approach.

Key Features

• Solid carbide tip for extended wear life in ferrous and non-ferrous machining
• 11/32 inch convex radius for consistent form geometry on radius turning operations
• Left-hand cutting direction for correct orientation in left-feed lathe setups
• 1/2 inch square shank fits standard lathe tool holders without modification
• 3.5 inch overall length and 1/8 inch tip thickness maintain rigidity during form cutting
• RXL style geometry designed for convex radius turning and profiling

Compatibility

Designed as an OEM-style form cutting tool bit for use in standard 1/2 inch square shank lathe tool holders on manual and CNC turning lathes.

Installation Notes

Installation is performed by a qualified machinist. Secure the 1/2 inch square shank firmly in the tool holder and verify that tip height is set to the correct centerline before taking a cut. Power down and lock out the lathe spindle before seating or adjusting the tool bit. Inspect the carbide tip for chipping or wear before each use, as a damaged tip will not produce an accurate radius form.
