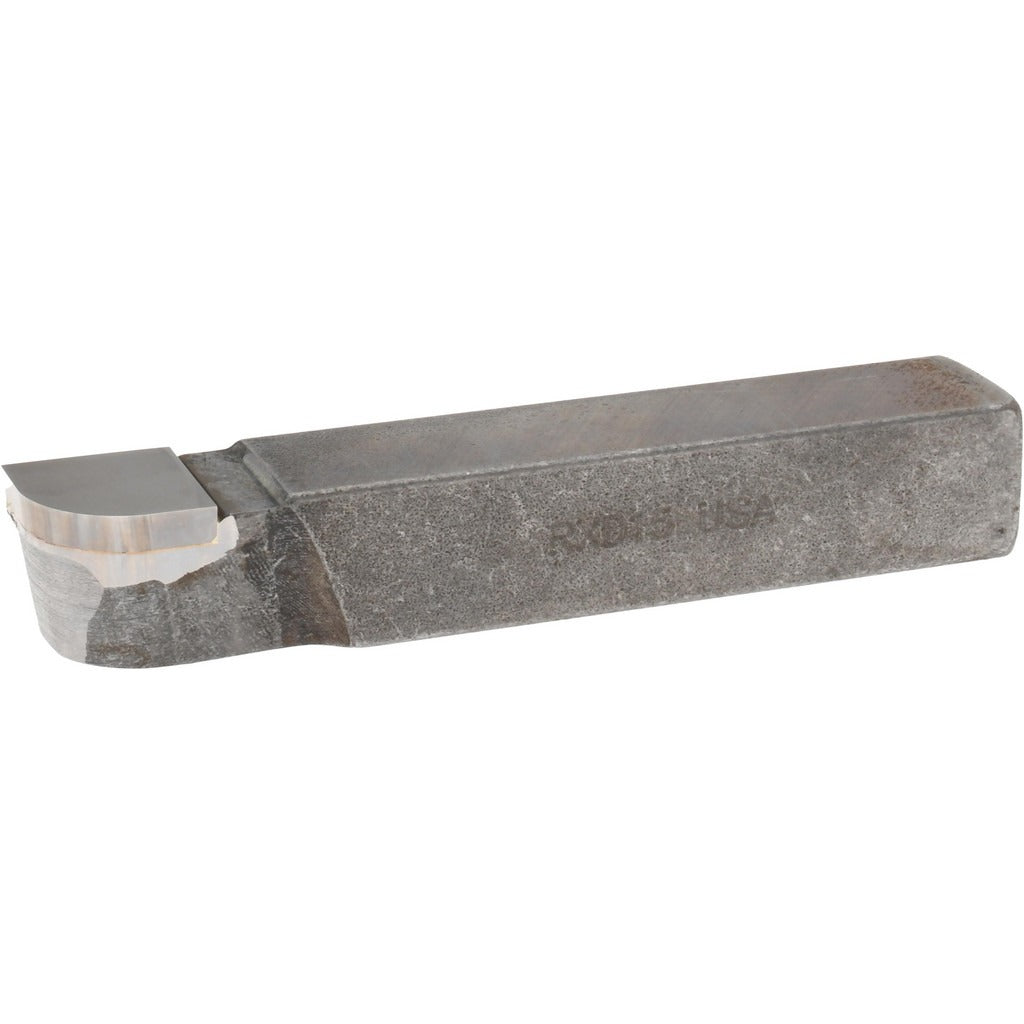

Accupro ACC-RXD15 Convex Radius Cutting Tool Bit 15/32 in

Product Description

The ACCUPRO ACC-RXD15 is a convex radius cutting tool bit designed for precision radius turning and profiling operations on metal lathes. Built to RXD style specifications, this right-hand cutting tool features a solid carbide tip brazed onto a 3/4 inch square shank, delivering the wear resistance and edge retention that production machinists and tool-and-die professionals depend on. The tool measures 4-1/2 inches in overall length with a 3/4 inch tip length and a 3/16 inch tip thickness. The 15/32 inch convex radius geometry produces consistent, repeatable profiles on workpieces requiring precise radius forms.

This tool bit is suited for manual and CNC lathe operations where a convex radius profile must be cut into steel, cast iron, aluminum, or similar machinable materials. The RXD style form makes it a practical choice for production environments and job shops performing radius turning, profiling, and form-tool operations. Right-hand cutting direction means the tool feeds from right to left across the workpiece in standard lathe orientation. It is typically installed by machinists, tool grinders, and CNC setup technicians.

Key Features

• Solid carbide tip for extended tool life and heat resistance in interrupted and continuous cuts
• 15/32 inch convex radius geometry for accurate form turning and profiling
• 3/4 inch square shank for rigid tool post or holder mounting
• Right-hand cutting direction for standard lathe feed orientation
• RXD style construction for consistent fitment in compatible tool holders
• 4-1/2 inch overall length provides reach for a range of workpiece setups

Compatibility

Designed as an OEM-style form tool for use in standard 3/4 inch square shank tool posts and holders on manual and CNC lathes requiring a right-hand convex radius cutting tool in RXD style configuration.

Installation Notes

Installation is performed by machinists and CNC setup technicians. Secure the shank firmly in the tool post or holder before operation and verify tool height alignment to the workpiece centerline. Power down and lock out the lathe spindle before changing or adjusting tooling. Inspect the carbide tip for cracks or chipping before each use and do not apply side loads beyond the intended cutting geometry.
