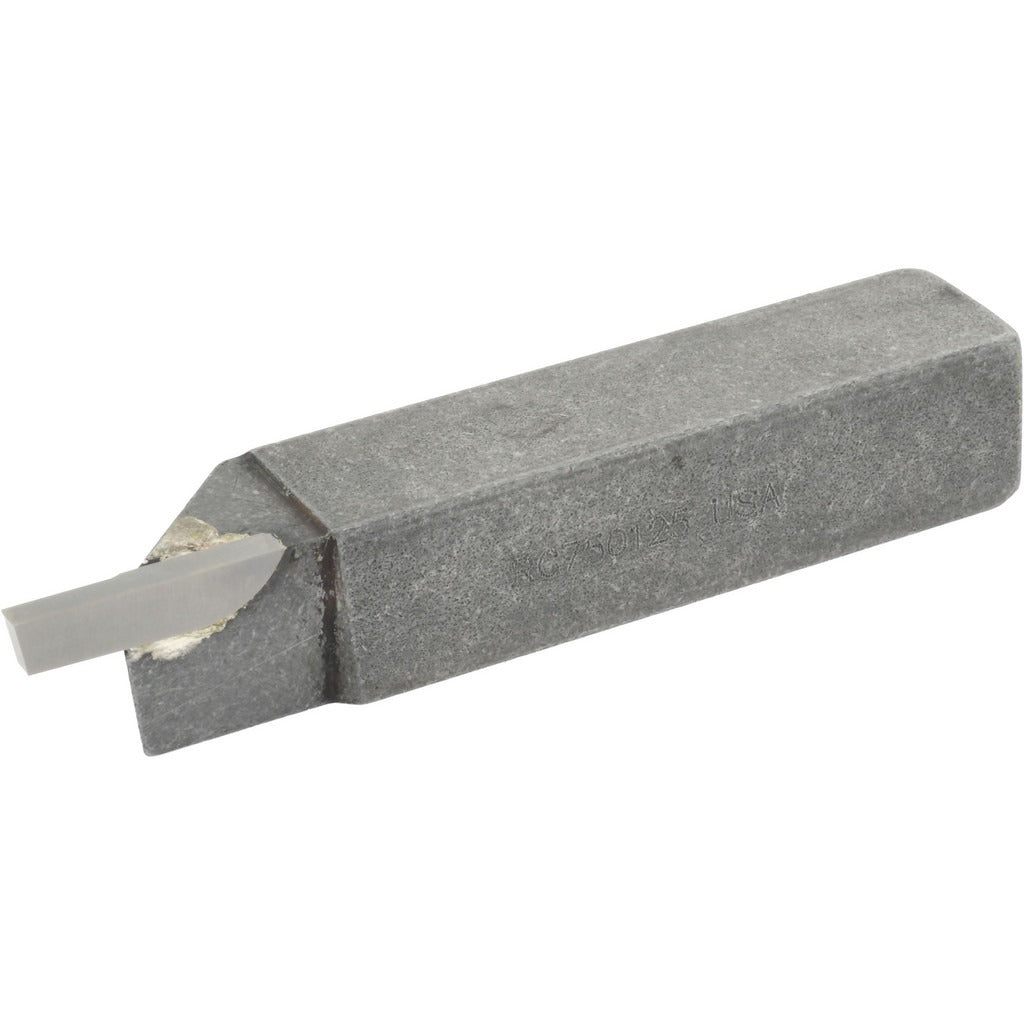

Accupro ACC-RC750125 Single Point Tool Bit 3/4 Inch Shank

Product Description

The ACCUPRO ACC-RC750125 is a right-hand, single-point tool bit designed for cut-off and grooving operations on CNC lathes and manual turning centers. Built to RC style geometry, it features a micrograin solid carbide tip that delivers consistent edge retention and fine surface finishes on a wide range of workpiece materials. The shank measures 3/4 inch in both width and height, and the overall length is 4 inches. The tip width is 0.1250 inches with a tip thickness of 0.1200 inches, making it well suited for narrow grooving and parting applications. Machinists and toolroom technicians use this bit where dimensional accuracy and repeatable tool life matter.

This tool bit fits standard RC-style toolholders with a 3/4 inch square shank pocket. It is appropriate for job shop turning work, production lathe cells, and maintenance machining environments. Cut-off and grooving on ferrous metals, non-ferrous alloys, and plastics are the primary applications. The right-hand cutting direction suits conventional front-mounted toolpost setups. Industry standard number RC-750125 allows straightforward cross-referencing against toolholder catalogs and interchangeable insert-style systems that accept RC geometry.

Key Features

• Micrograin solid carbide tip for superior edge retention and fine surface finish
• RC tool bit style with right-hand cutting direction for conventional lathe setups
• 3/4 inch square shank fits standard RC-style toolholders directly
• 0.1250 inch tip width engineered for narrow grooving and parting cuts
• 4 inch overall length provides rigid projection control in standard toolposts
• Industry standard number RC-750125 for direct cross-reference compatibility

Compatibility

Designed as a direct-fit replacement for RC-style toolholders accepting a 3/4 inch square shank single-point tool bit. Cross-references by industry standard number RC-750125.

Installation Notes

Installation is performed by a machinist or toolroom technician. Always power down and lock out the lathe spindle before seating or removing tool bits from the toolpost. Ensure the shank seats fully and squarely in the holder pocket and that all clamping screws are tightened evenly before resuming operation. Do not exceed the toolholder manufacturer's recommended overhang or depth-of-cut specifications for this shank size.
