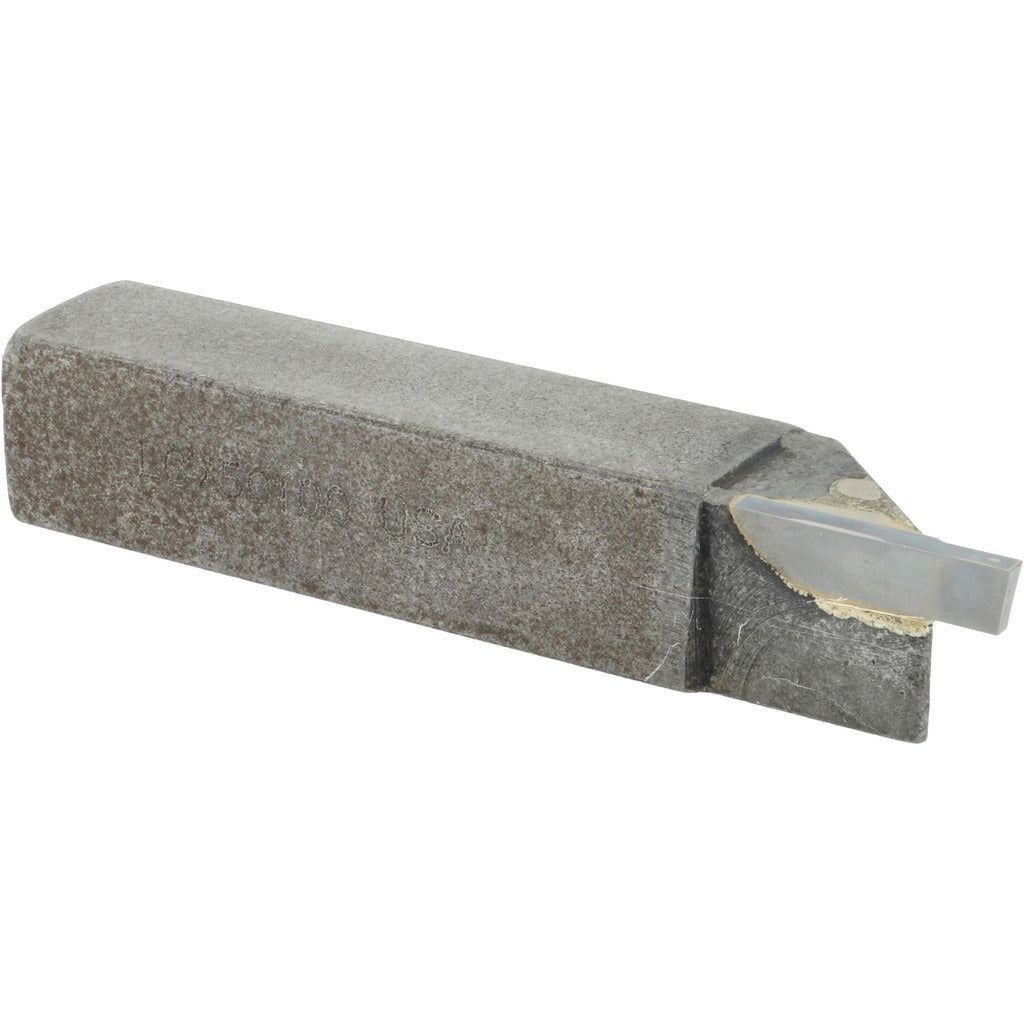

Accupro ACC-LC750100 Single Point Tool Bit Lh Cut-off

Product Description

The ACCUPRO ACC-LC750100 is a left-hand, single point tool bit designed for cut-off and grooving operations on metal lathes and turning centers. Built to the LC style industry standard, it features a micrograin solid carbide tip that delivers consistent edge retention and surface finish in demanding machining environments. The shank measures 3/4 inch in both width and height, and the overall length is 4 inches. The tip measures 0.100 inches in both width and thickness, making it well suited for narrow groove and parting work. Machinists and tool and die professionals install this bit in standard tool holders that accept LC-style geometry.

This tool bit is intended for cut-off and grooving applications on ferrous and non-ferrous workpieces in production and job shop turning environments. The left-hand cutting direction suits setups where the spindle or tool approach requires a right-to-left feed path. It is commonly used on manual lathes and CNC turning centers where a rigid, brazed-tip or solid-carbide-tipped single point bit is preferred over an indexable insert system for small-diameter parting and grooving work.

Key Features

• Micrograin solid carbide tip for superior edge retention and fine surface finish
• LC style geometry conforming to industry standard number LC-750100
• Left-hand cutting direction for right-to-left feed applications
• 3/4 inch square shank (3/4 inch width x 3/4 inch height) for rigid tool holding
• 0.100 inch tip width and 0.100 inch tip thickness for narrow cut-off and grooving work
• 4 inch overall length for compatibility with standard single point tool holders

Compatibility

Designed as an OEM-style replacement and standard fitment for tool holders accepting LC-style single point tool bits with a 3/4 inch square shank profile.

Installation Notes

This tool bit is installed by qualified machinists following standard shop safety procedures. Ensure the lathe or turning center is fully powered down and the spindle is locked before changing tooling. Secure the shank firmly in the tool holder to the full recommended engagement depth to minimize overhang and chatter. Follow applicable OSHA and shop-specific machining safety guidelines when handling carbide-tipped cutting tools.
