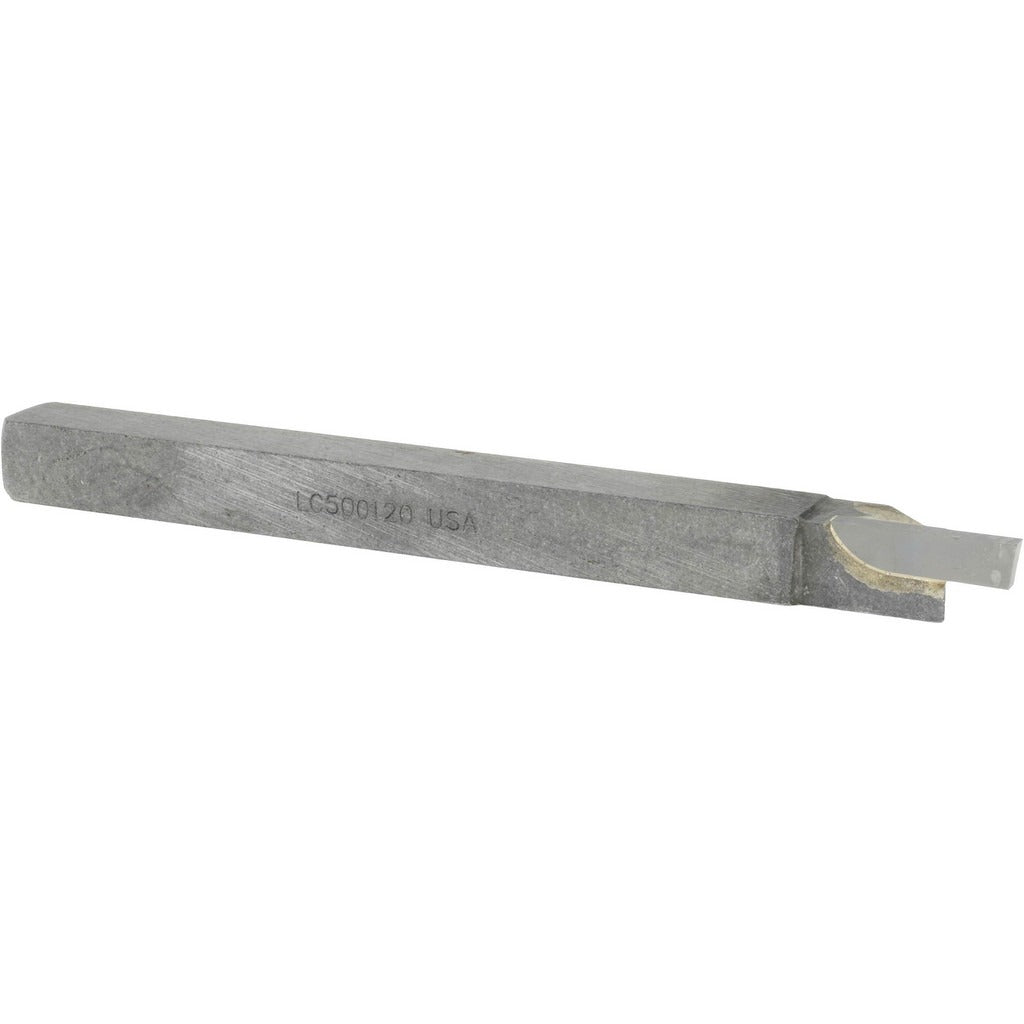

Accupro ACC-LC500120 Tool Bit Cut-off Grooving Lh Carbide

Product Description

The ACCUPRO ACC-LC500120 is a single point tool bit designed for cut-off and grooving operations on a lathe or turning center. Built to LC style standards with a solid carbide tip, this bit delivers consistent chip clearance and edge retention in ferrous and non-ferrous materials. The left-hand cutting direction suits applications where the tool advances from left to right relative to the workpiece. The shank measures 0.5 inches wide by 0.5 inches tall, and the overall length is 6 inches. The carbide tip is 0.120 inches wide, making it suited for narrow groove and parting work where dimensional accuracy matters.

This tool bit is used in manual and CNC turning operations in machine shops, tool rooms, and production environments. The LC style profile fits standard LC-series tool holders commonly found on engine lathes and turret lathes. It is appropriate for machinists performing parting, grooving, and cut-off tasks on bar stock, tubing, and turned workpieces where a left-hand tool path is required. Industry standard number LC-500120 provides a direct cross-reference for sourcing and replacement.

Key Features

• Solid carbide tip for extended edge life and heat resistance during cut-off operations
• Left-hand cutting direction suits right-to-left tool travel setups
• 0.120-inch tip width enables narrow groove and parting cuts
• LC style profile compatible with standard LC-series tool holders
• 0.5 inch by 0.5 inch shank fits common lathe tool posts and holders
• 6-inch overall length provides clearance for typical turning setups

Compatibility

Designed as an OEM-style replacement for LC-style single point tool bit holders used in standard lathe and turning center applications. Industry standard number LC-500120 allows direct cross-reference with equivalent LC-series tooling.

Installation Notes

Installation is performed by qualified machinists. Secure the shank firmly in the tool holder or post before engaging the workpiece, and confirm the tool tip is set at the correct center height for the application. Power down and lock out the machine before changing or inspecting tool bits. Do not exceed the cutting parameters recommended for the workpiece material and tool holder type.
