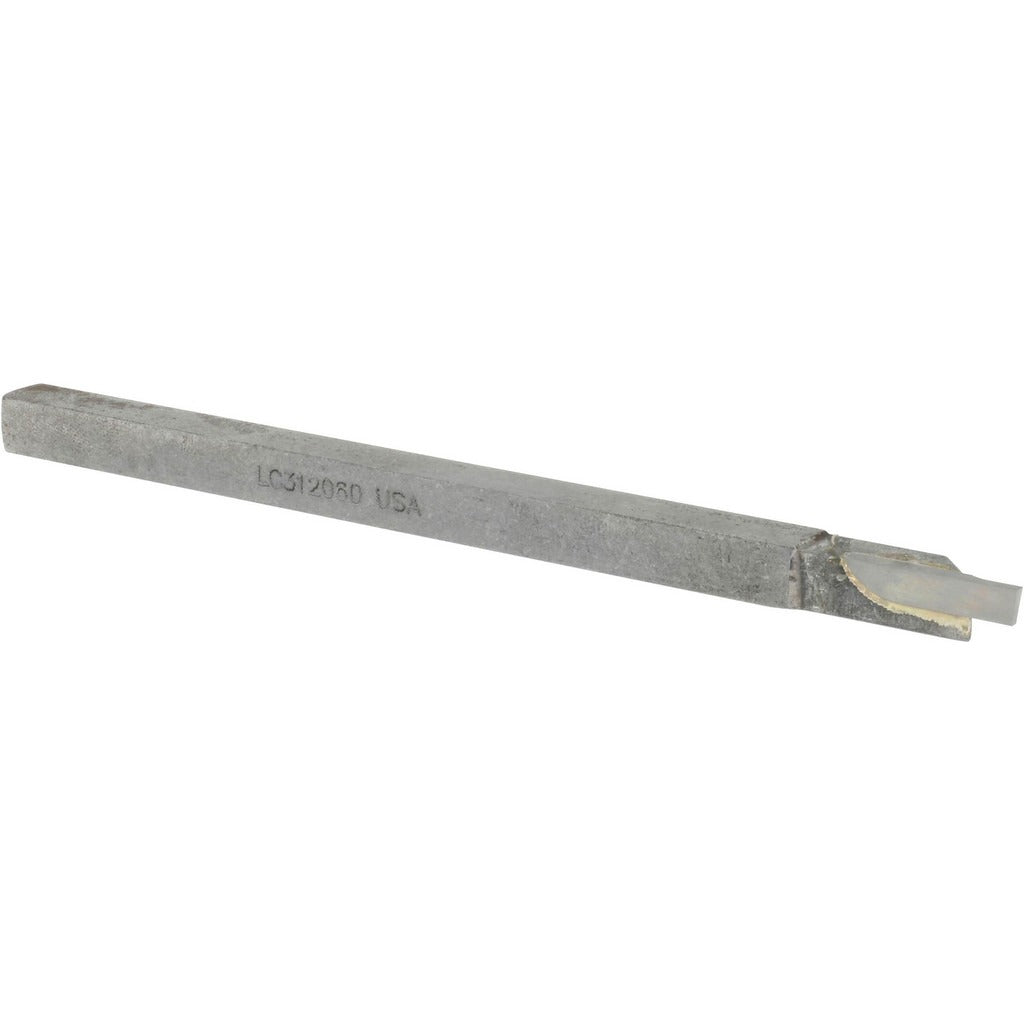

Accupro ACC-LC312060 Single Point Tool Bit Lh Cut-off

Product Description

The ACCUPRO ACC-LC312060 is a left-hand, LC-style single point tool bit designed for cut-off and grooving operations on metal lathes and turning centers. The cutting tip is solid carbide, ground to a 0.060-inch width and 0.060-inch thickness, making it well suited for narrow parting cuts and precision grooving work. The shank measures 5/16 inch in width and 5/16 inch in height, with an overall length of 6 inches. This tool is used by machinists and tool-and-die professionals in both production and job-shop environments where consistent cut-off performance and tip durability are required.

This tool bit fits standard LC-style tool holders and is intended for left-hand cutting direction applications. It is appropriate for use in CNC turning centers, manual engine lathes, and turret lathes where cut-off or grooving operations are performed on ferrous and non-ferrous materials. The solid carbide tip provides wear resistance suited to higher-speed applications and harder workpiece materials compared to high-speed steel alternatives. Industry standard number LC-312060 identifies this geometry across compatible tooling systems.

Key Features

• Solid carbide tip for extended wear life in cut-off and grooving applications
• Left-hand cutting direction for LC-style tool holder setups
• Tip width and thickness of 0.060 inches for narrow, precise parting cuts
• 5/16 inch square shank fits standard LC-style boring bars and holders
• 6-inch overall length provides reach for a range of workholding configurations
• Industry standard number LC-312060 for cross-reference with compatible holders

Compatibility

Designed as an OEM-style replacement and standard fit for LC-style single point tool holders accepting a 5/16 inch shank. Industry standard number LC-312060 applies across compatible tooling systems.

Installation Notes

Installation is performed by machinists or toolroom technicians. Secure the shank firmly in the tool holder to the recommended clamping torque specified by the holder manufacturer before engaging the workpiece. Ensure the machine spindle is fully stopped and the lathe is powered down before inserting or removing the tool bit. Do not exceed the cutting parameters specified for the carbide grade in use, as improper feed or speed selection can cause tip fracture.
