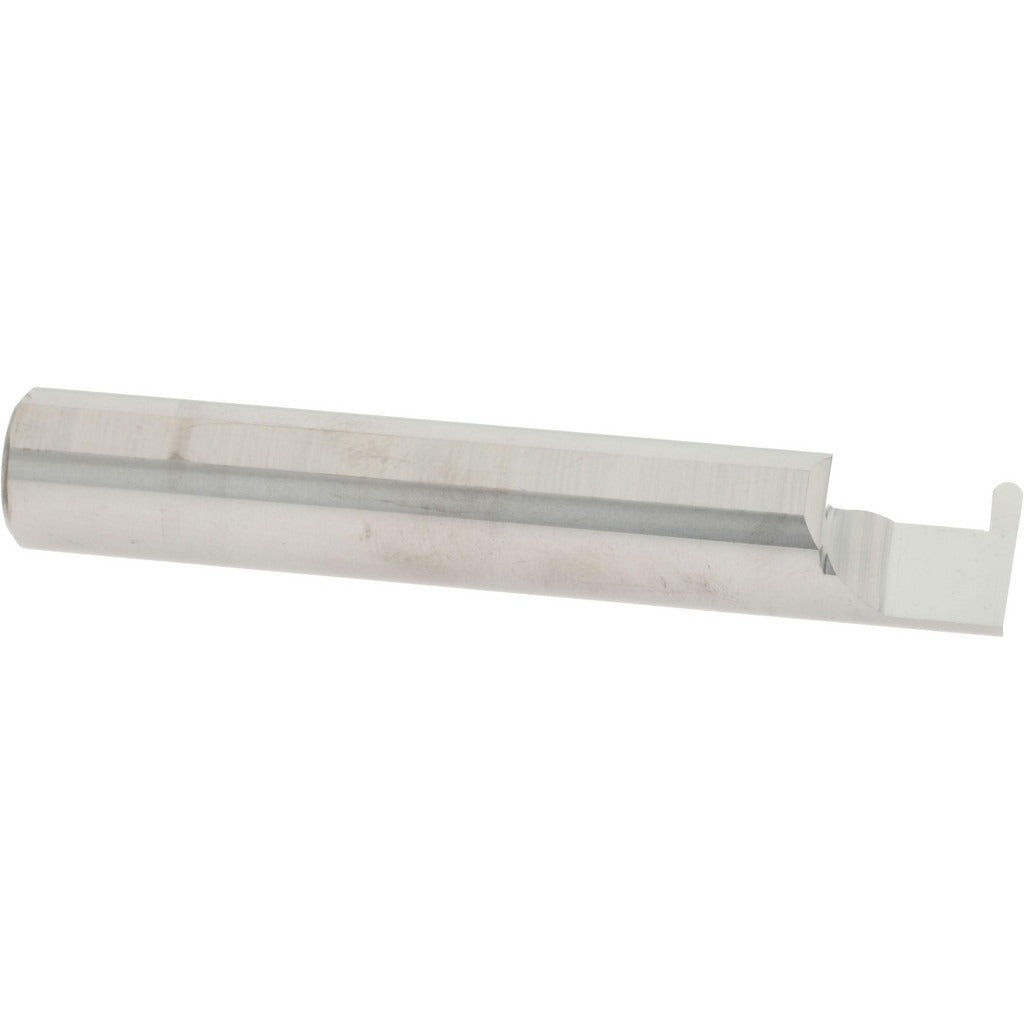

Accupro ACC-GF093-8 Full Radius Grooving Tool

Product Description

The ACCUPRO ACC-GF093-8 is a full radius grooving tool designed for internal grooving operations in machined bores. Constructed from submicron-grade solid carbide, it delivers consistent edge retention and dimensional accuracy in ferrous and non-ferrous materials. The tool features a 1/2 inch shank diameter, a 0.0940 inch groove width, and an overall length of 3 inches. A projection of 0.160 inches allows controlled depth engagement. This tool is used by machinists and tool-and-die professionals working on CNC lathes, boring mills, and manual turning centers where precision internal groove geometry is required.

The ACC-GF093-8 is suited for internal grooving applications where a full radius profile is required, such as snap ring grooves, O-ring seats, and relief channels. It supports a minimum hole diameter of 0.500 inches and a maximum hole depth of 0.500 inches, making it appropriate for shallow bore grooving in precision component manufacturing. It is sold as a single-piece unit.

Key Features

• Submicron-grade solid carbide construction for superior hardness and wear resistance
• Full radius grooving profile suitable for O-ring seats and snap ring grooves
• 0.0940 inch groove width for precise, repeatable groove geometry
• 1/2 inch shank diameter with 3 inch overall length for stable tool holding
• 0.160 inch projection enables controlled bore engagement depth
• Compatible with standard 1/2 inch toolholders used in CNC and manual turning applications

Compatibility

Designed for use with standard 1/2 inch bore grooving toolholders on CNC lathes, turning centers, and manual lathes capable of internal grooving operations with a minimum bore diameter of 0.500 inches.

Installation Notes

This tool is installed by a machinist or toolroom professional into a compatible 1/2 inch shank toolholder. Ensure the machine spindle is fully stopped and the tool is properly torqued into the holder before beginning any operation. Verify bore diameter and depth clearances against the tool projection and maximum hole depth prior to cutting. Do not exceed the tool's stated maximum hole depth of 0.500 inches to avoid tool deflection or breakage.
