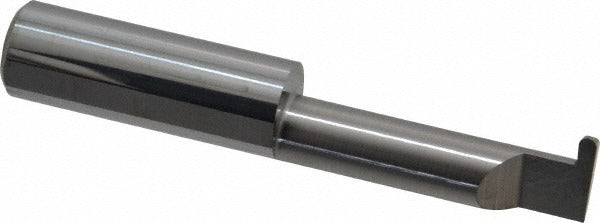

Accupro ACC-GF093-24 Full Radius Grooving Tool

Product Description

The ACCUPRO ACC-GF093-24 is a full radius grooving tool designed for internal grooving operations in machined bores. Constructed from submicron-grade solid carbide, it delivers consistent cutting performance in demanding materials. The tool features a 0.094-inch groove width and a 1/2-inch shank diameter, with an overall length of 3 inches. A 0.160-inch projection allows the cutting edge to reach into bores with a minimum diameter of 0.5 inches. This tool is suited for use in CNC lathes and manual turning centers and is typically installed by machinists and toolroom professionals working in metal fabrication, job shop, and production environments.

The ACC-GF093-24 is intended for internal grooving and undercutting applications where a full radius profile is required. Its solid carbide construction makes it well suited for ferrous and non-ferrous materials where tool rigidity and edge retention are critical. It is appropriate for use in bores requiring a clean, consistent radius groove profile, with a maximum usable hole depth of 1.5 inches. This tool is a single-piece, non-indexable design packaged individually.

Key Features

• Submicron-grade solid carbide construction for enhanced wear resistance and edge retention
• Full radius grooving profile for accurate radius-bottom groove geometry
• 0.094-inch groove width for precise internal groove sizing
• 0.160-inch projection supports reach into tight bore geometries
• Compatible with bores of 0.5 inches minimum diameter and up to 1.5 inches depth
• 1/2-inch shank diameter fits standard lathe and turning center toolholders

Compatibility

Designed as an OEM-style replacement or direct-fit grooving tool for CNC and manual lathe tooling setups accepting a 1/2-inch round shank with a minimum bore entry diameter of 0.5 inches.

Installation Notes

Installation is performed by a machinist or toolroom technician. The machine spindle must be fully stopped and the tool turret or holder must be de-energized before inserting or removing the tool. Ensure the shank is fully seated and clamped to the toolholder manufacturer's specifications before running any cuts. Verify bore entry clearance against the 0.5-inch minimum hole diameter before use to avoid tool or workpiece damage.
