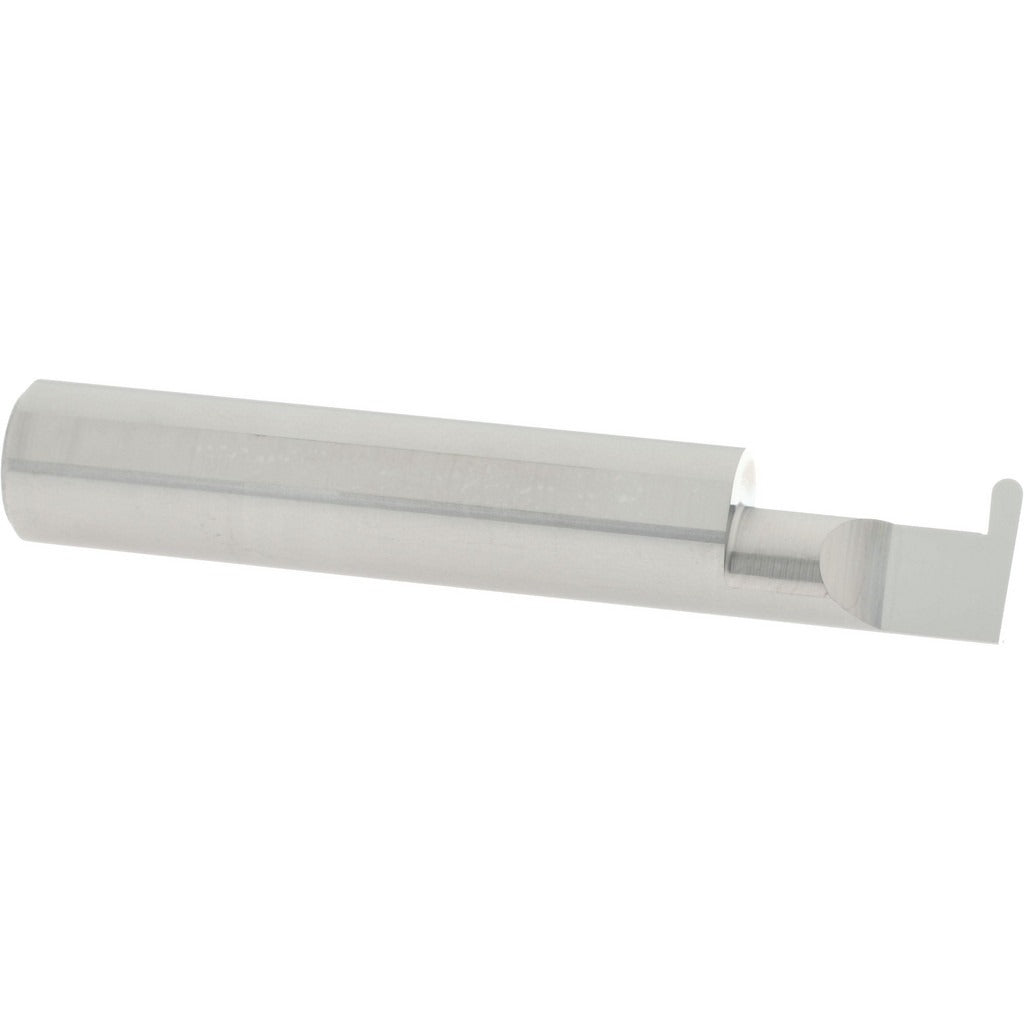

Accupro ACC-GF093-12 Full Radius Grooving Tool Carbide

Product Description

The ACCUPRO ACC-GF093-12 is a full radius grooving tool designed for internal grooving and undercutting operations on CNC lathes and boring applications. Constructed from submicron-grade solid carbide, it delivers consistent edge retention and dimensional accuracy in demanding machining environments. The tool features a 0.5 inch shank diameter, a groove width of 0.0940 inches, and an overall length of 3 inches. Licensed machinists and toolroom professionals specify this geometry when a true full radius profile is required at the groove floor. The submicron carbide grade supports use in steel, stainless, cast iron, and non-ferrous materials at elevated cutting parameters.

The ACC-GF093-12 is suited for internal grooving work where minimum hole diameter is 0.5 inches and maximum hole depth does not exceed 0.75 inches. The 0.1600 inch projection allows clearance for groove operations in bored holes and blind pocket applications. It is a standard single-piece tool used in production and job-shop environments by machinists working on turned components requiring precise groove profiles.

Key Features

• Full radius groove profile for accurate contour at groove floor
• Submicron-grade solid carbide construction for extended tool life
• 0.5 inch shank diameter for compatibility with standard boring bar holders
• 0.0940 inch groove width for tight-tolerance internal groove applications
• 0.1600 inch projection provides clearance in confined bore geometries
• 3 inch overall length accommodates standard lathe and machining center setups

Compatibility

Designed as a direct-fit grooving tool for CNC lathes and machining centers equipped with 0.5 inch boring bar or toolholder bores, where minimum hole diameter is 0.5 inches and maximum hole depth is 0.75 inches.

Installation Notes

Installation is performed by qualified machinists. Secure the shank fully within the toolholder bore to the marked engagement depth before tightening to prevent overhang deflection. Confirm all axes are at a safe home position and the spindle is fully stopped before changing tooling. Do not exceed the maximum hole depth rating of 0.75 inches to avoid tool breakage.
